Parking Brake Lever Trim, Removing and Installing

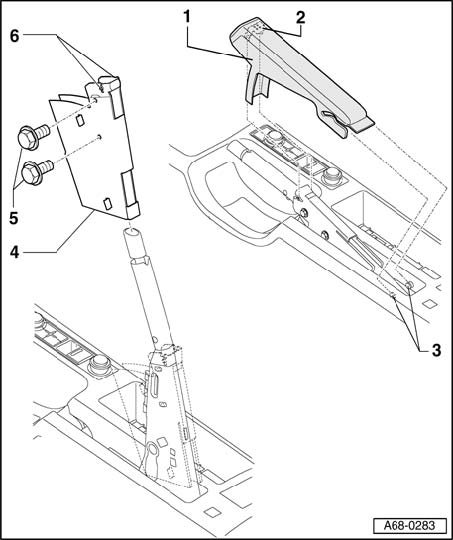

Parking Brake Lever Trim, Assembly Overview







1 - Parking brake lever trim

Removing
- Apply parking brake firmly.
- Remove parking brake handle.
- Using a small screwdriver, press fastener - 2 - outward at left and right and pull parking brake lever trim out of its retainer tabs - 6 - and its mounts - 3 -.

Installing
- Engage parking brake lever trim - 1 - in its rear mounts - 3 -.
- Press parking brake lever trim - 1 - firmly, until fastener - 2 - engages in retainer tabs - 6 -.
- Install handle on parking brake lever.

2 - Fastener
3 - Mounts for trim
4 - Support bracket

Removing
- Remove parking brake lever trim - 1 -.
- Apply parking brake firmly.
- Remove two bolts - 5 - at support bracket - 4 - and remove support bracket.

Installing
- Apply parking brake firmly.
- Place support bracket to parking brake lever.
- Tighten bolts - 5 - by hand.
- Release parking brake.
- Tighten two bolts - 5 -.
- Install parking brake lever trim - 1 -.

5 - Bolts (2x)
- Tightening torque 4 Nm

6 - Retainer tabs
