Tow Sensor: Service and Repair

Towing Recognition Control Module

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Contact Corrosion.

Removing





Component location: in the base mount, inside the luggage compartment on the left side and behind the side trim panel

- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Functions" routine.

- Remove the luggage compartment left side trim panel.

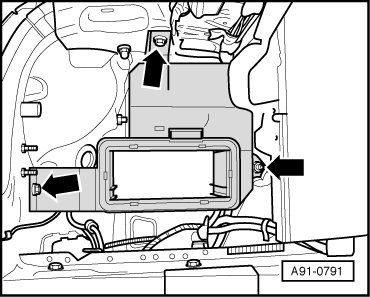

- Remove the screws - arrows - and remove the base mount.

- Unplug connectors.

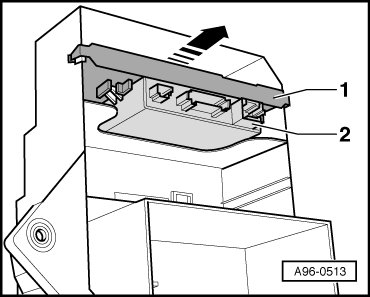

- Unlock the plate - 1 - on the base mount and remove it - arrow -.





- Unlock the Towing Recognition Control Module ( J345) - 2 - from the plate- arrow -.

- Remove the towing recognition control module.

Installing

Install in reverse order of removal, observing the following:

- Install the luggage compartment left side trim panel.
