Home >> Audi >> 2008 >> A4 Cabriolet (8HE) L4-2.0L Turbo (BWT) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P1773 >> 01J, Continuously Variable Transmission (CVT)

01J, Continuously Variable Transmission (CVT)

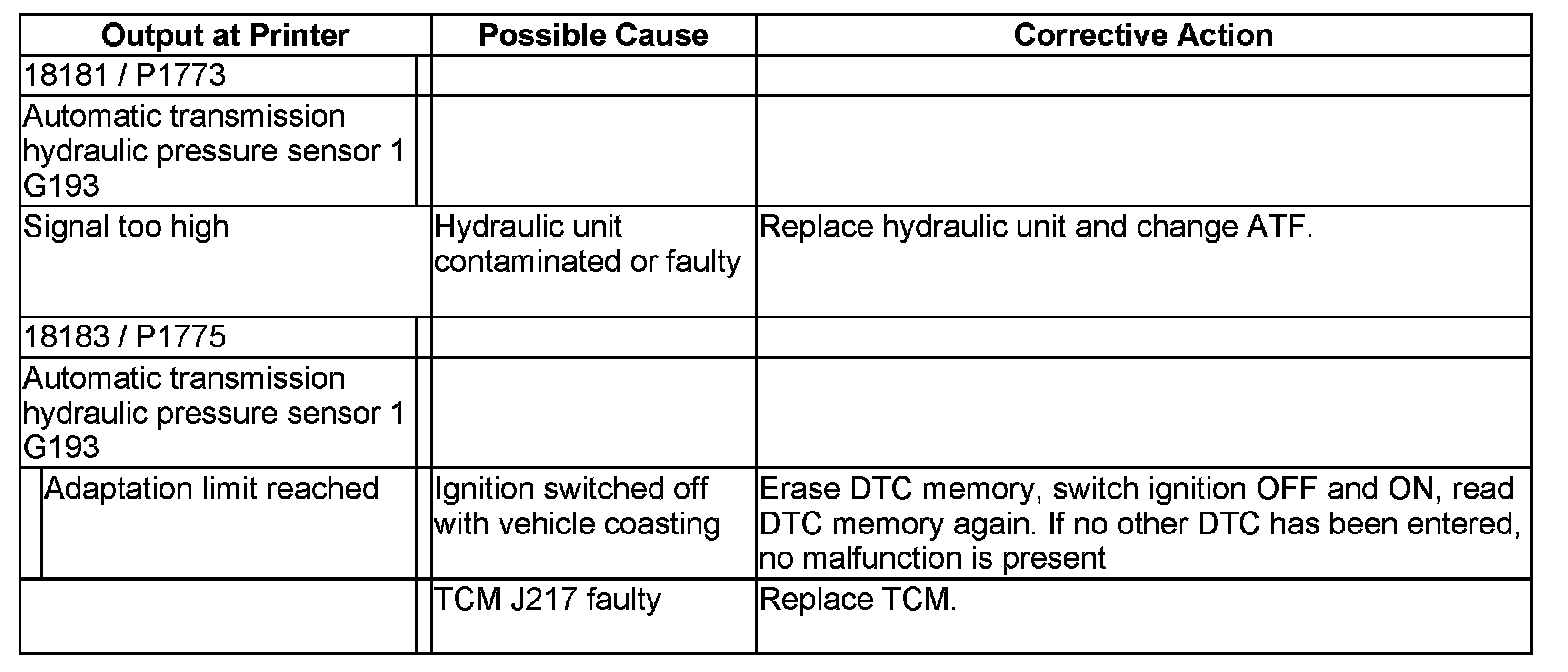

Diagnostic Trouble Codes 18181 / P1773 and 18183 / P1775 - 01J, Continuously Variable Transmission (CVT)





Note on Diagnostic Trouble Codes 18181 / P1773:

^ If DTC 18201 / P1793 is displayed in addition, the sensor wheel may be faulty and the transmission must be replaced.
