01J, Continuously Variable Transmission (CVT)

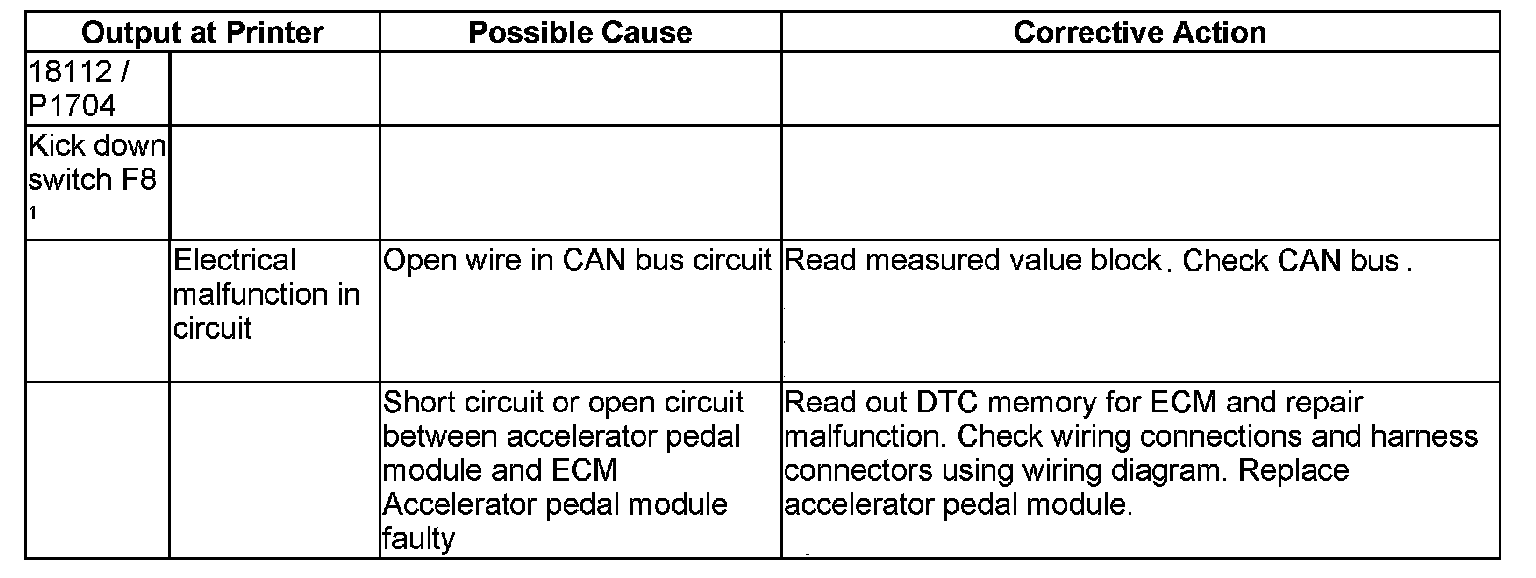

Diagnostic Trouble Codes 18112 / P1704 - 01J, Continuously Variable Transmission (CVT)





Notes on Diagnostic Trouble Code 18112 / P1704:

^ With the brake pedal depressed and simultaneous full depression of the accelerator pedal as far as kick down Wide Open Throttle (WOT this DTC can be displayed erroneously.
