01J, Continuously Variable Transmission (CVT)

Diagnostic Trouble Codes 18031 / P1623 - 01J, Continuously Variable Transmission (CVT)

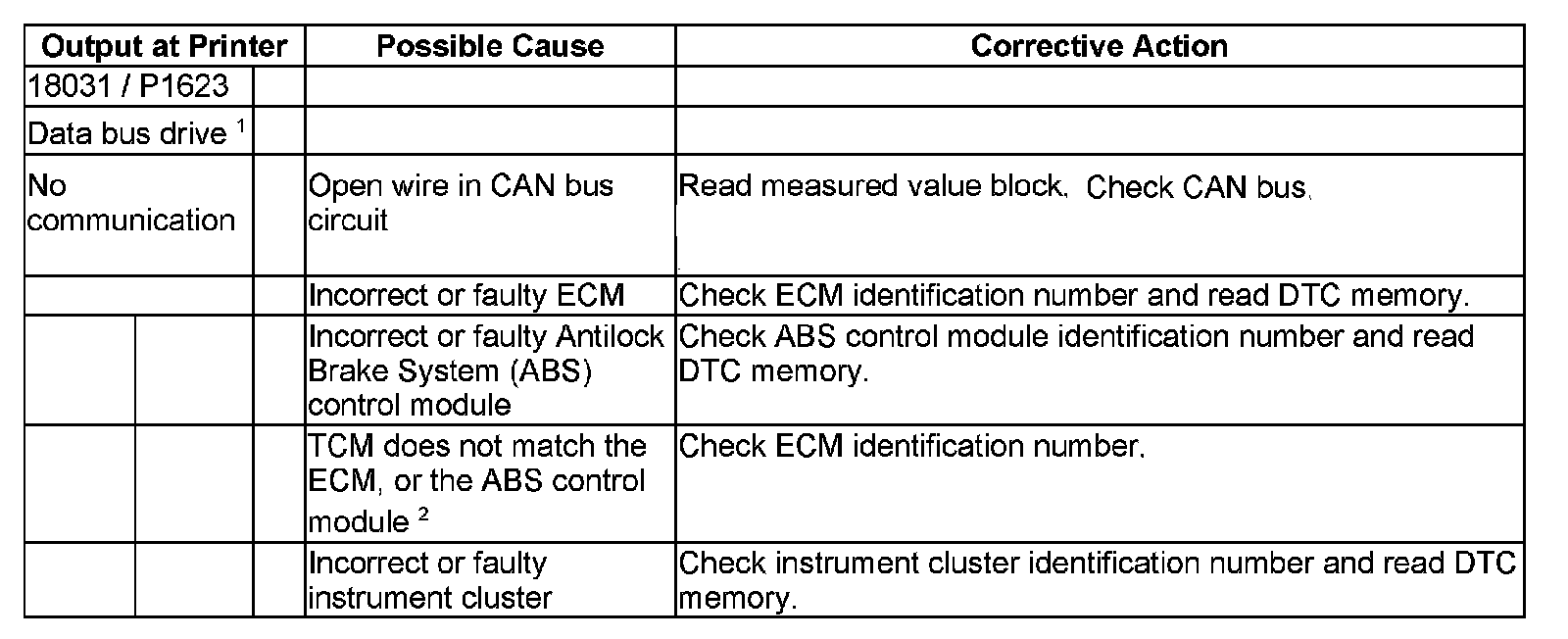

Notes on Diagnostic Trouble Code 18031 / P1623:

^ The exchange of data and information between the ECM, ABS control module, TCM and instrument cluster is carried out over the CAN bus. All information signals are transmitted over 2 leads.
^ The TCM can send signals and data, but it cannot receive anything.
