01J, Continuously Variable Transmission (CVT)

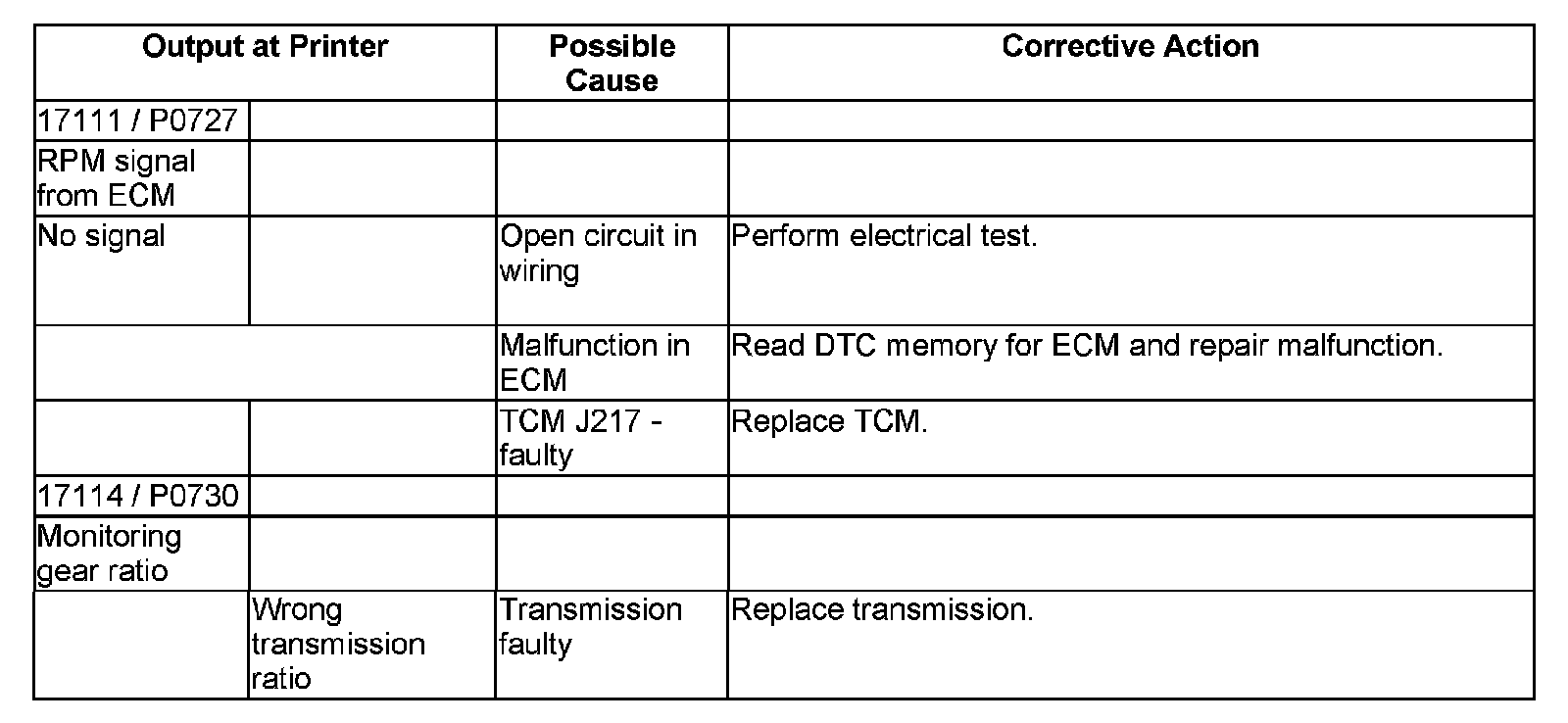

Diagnostic Trouble Codes 17111 / P0727 and 17114 / P0730 - 01J, Continuously Variable Transmission (CVT)





Note on Diagnostic Trouble codes 17111 / P0727:

^ In the event of an open circuit in the RPM lead, the substitute engine RPM signal is transmitted by the ECM over the CAN bus circuit to the TCM.
