01J, Continuously Variable Transmission (CVT)

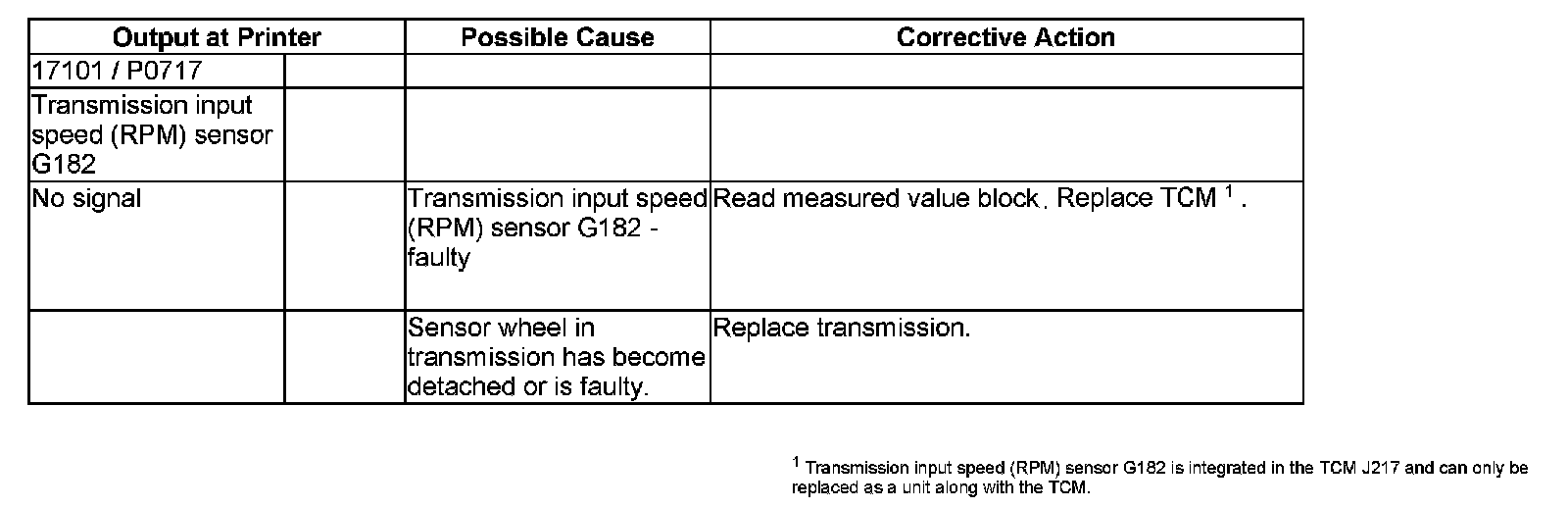

Diagnostic Trouble Codes 17101 / P0717 - 01J, Continuously Variable Transmission (CVT)





Note on Diagnostic Trouble Codes 17101 / P0717:

^ Condition for DTC recognition: The TCM recognizes short term input RPM which is less than or equal to 1 RPM and simultaneously an output RPM which is higher than 100 RPM.
