01J, Continuously Variable Transmission (CVT)

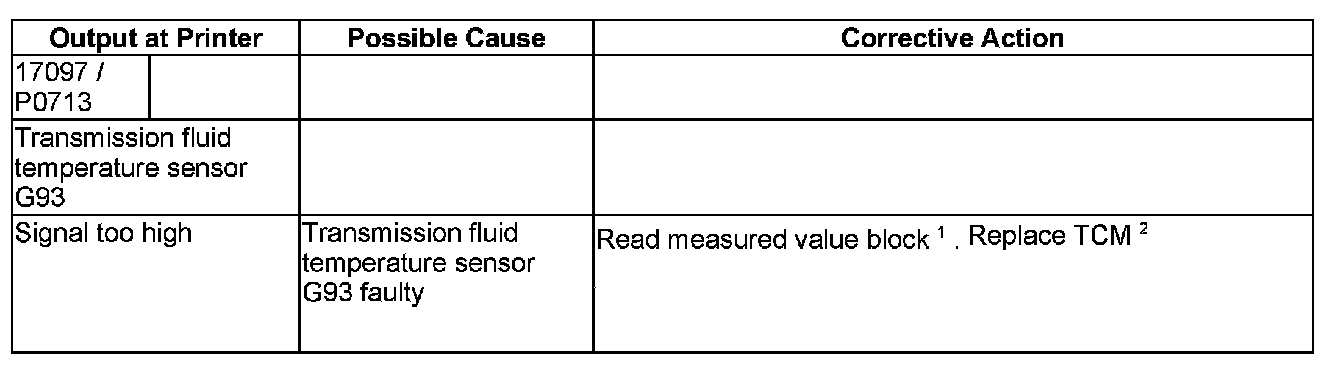

Diagnostic Trouble Codes 17097 / P0713 - 01J, Continuously Variable Transmission (CVT)





2 The transmission fluid temperature sensor G93 is integrated in the TCM J217 and can only be replaced as a unit with the TCM.

1 The measured value block should be read out when the engine and transmission have cooled (approximately room temperature). If the temperature reading is then higher than or equal to 160 C, the transmission fluid temperature sensor G93 is clearly faulty.

Note on Diagnostic Trouble Codes 17097 / P0713:

^ Condition for DTC recognition: The temperature reading measured has exceeded 160 degree C.
