01J, Continuously Variable Transmission (CVT)

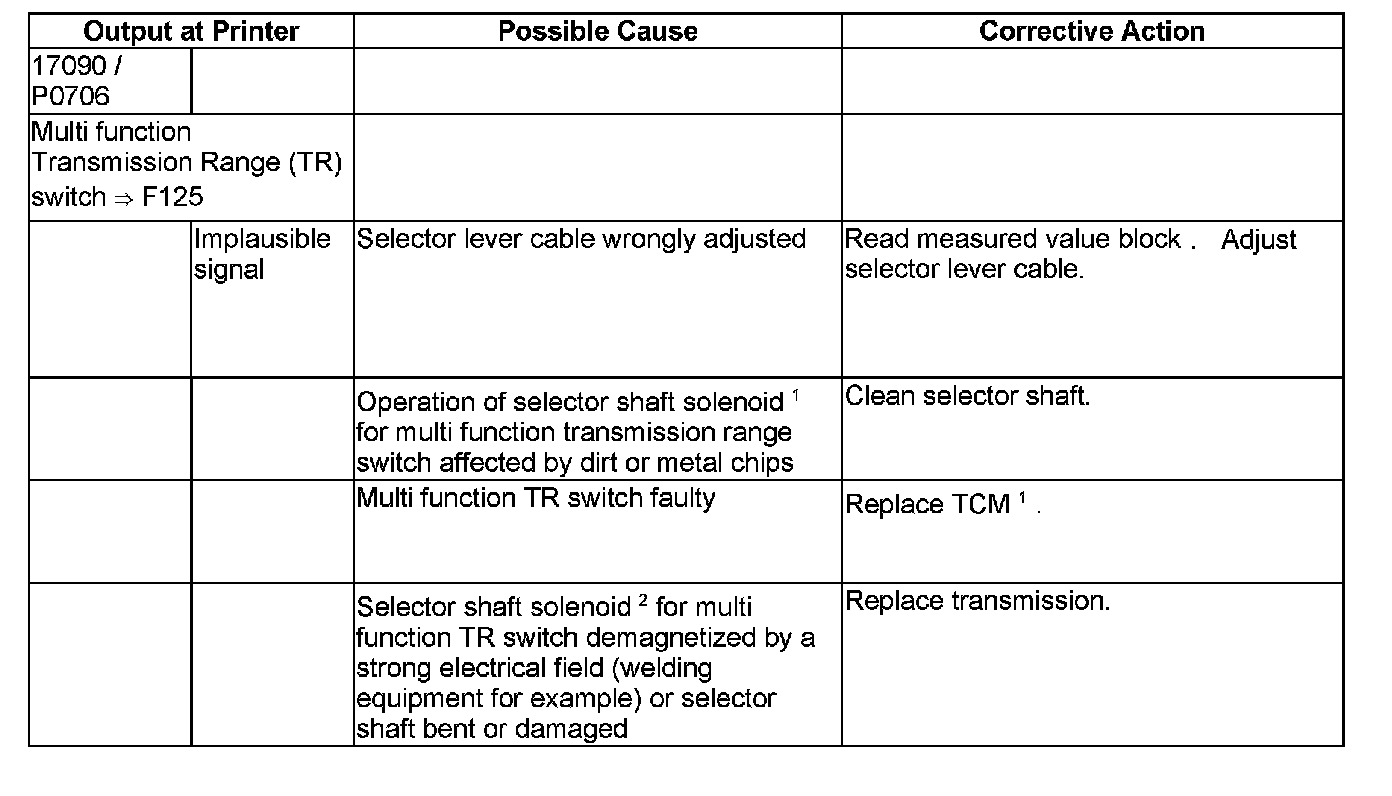

Diagnostic Trouble Codes 17090 / P0706 - 01J, Continuously Variable Transmission (CVT)





Note: multi function TR switch F125 -. If the shift control mechanism is correctly adjusted, this position matches the selector lever position.
