Right Flange Shaft

Right Flange Shaft - 6 Spd. Direct Shift A/T 02E Front Wheel Drive

Special tools, testers and auxiliary items required

^ Used Oil Collecting and Extracting Device V.A.G 1782

Removing

Note:
^ Rules for cleanliness when working on transmission.
^ General repair notes.

- Remove right front wheel.

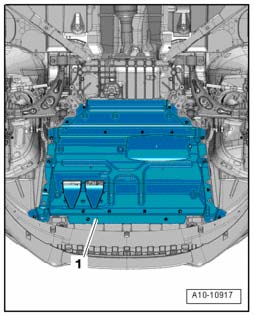

- Remove noise insulation -1-.

Note:
^ Depending on the version, different noise insulation may be installed.





- Disconnect electrical harness connector -1- at Oil Level Thermal Sensor G266.
- Unclip bracket -2- for electrical wiring to Oil Level Thermal Sensor G266 at the subframe.





- Remove heat shield for right drive axle -arrows-.
- Remove right drive axle from transmission flange.
- Place old oil collecting and extracting device V.A.G 1782 beneath transmission.





- Remove bolt for right flange shaft, by installing two bolts into the flange and counter-holding the flange shaft with a pry bar.





- Remove flange shaft with spring, thrust washer and tapered ring.

Installing

Installation is in reverse order of removal. Pay attention to the following:

- Press in flange shaft against the spring force and secure it with a new bolt.
- Install right drive axle.
