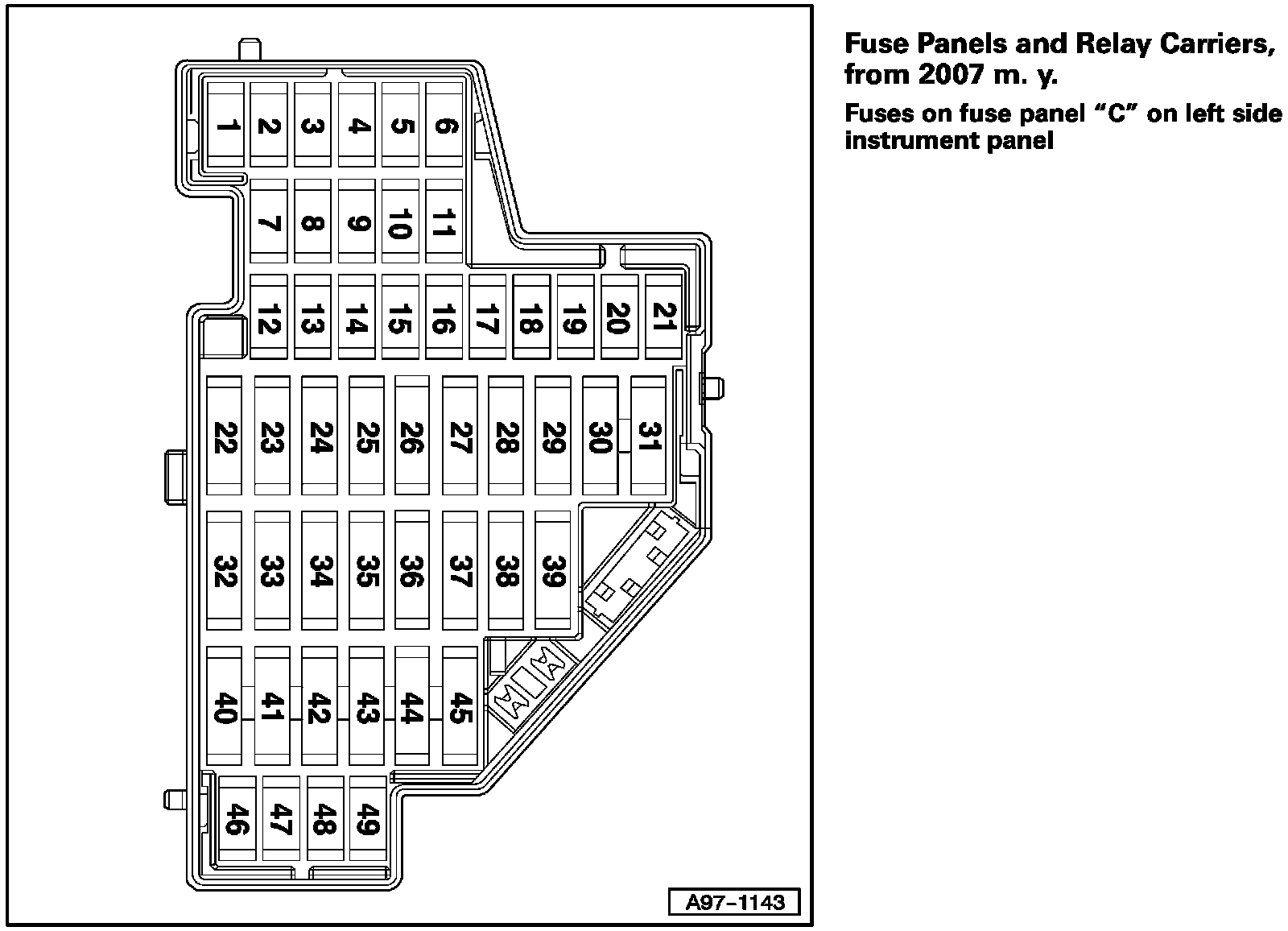

Fuses on Fuse Panel "C" on Left Side Instrument Panel

Fuses On Fuse Panel "C" On Left Side Instrument Panel:

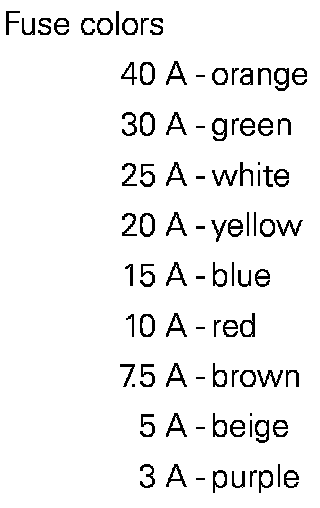

Fuse Colors:

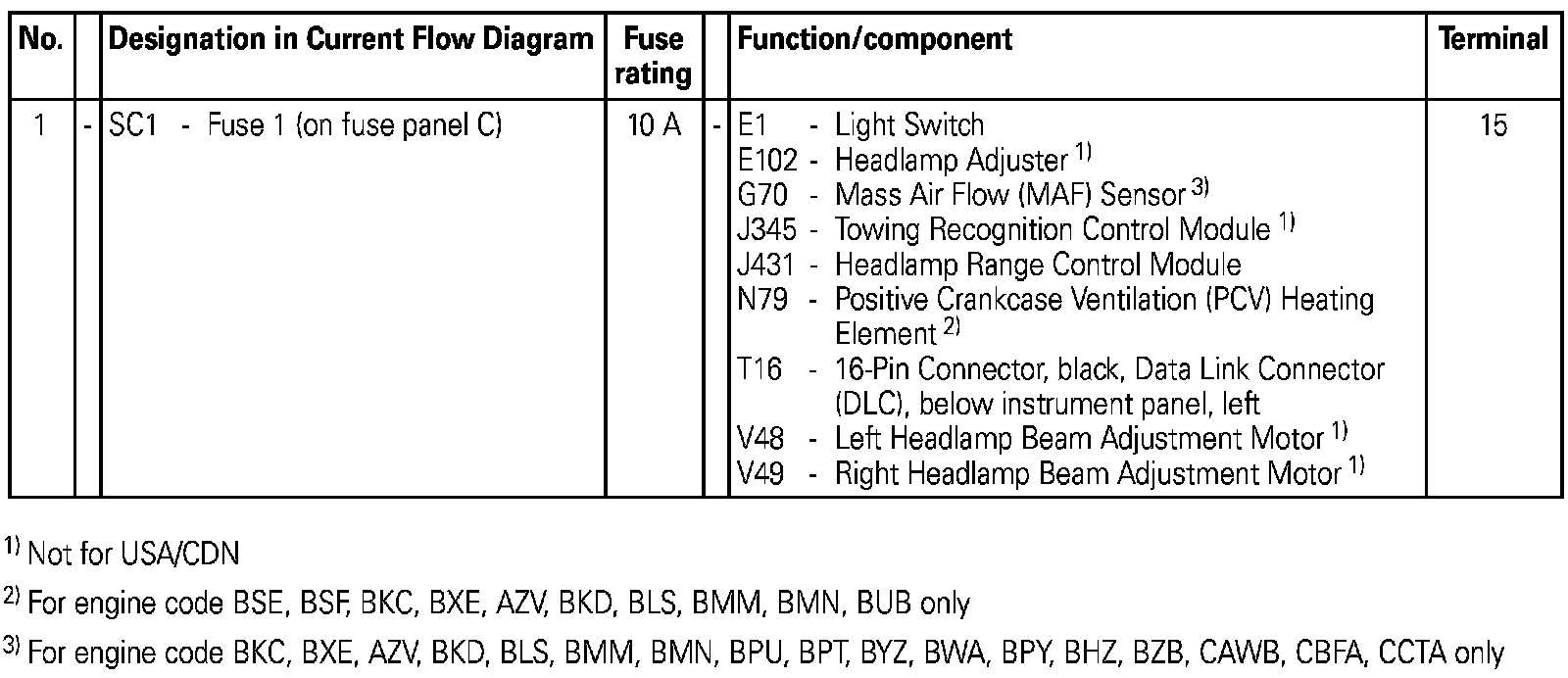

Fuse 1:

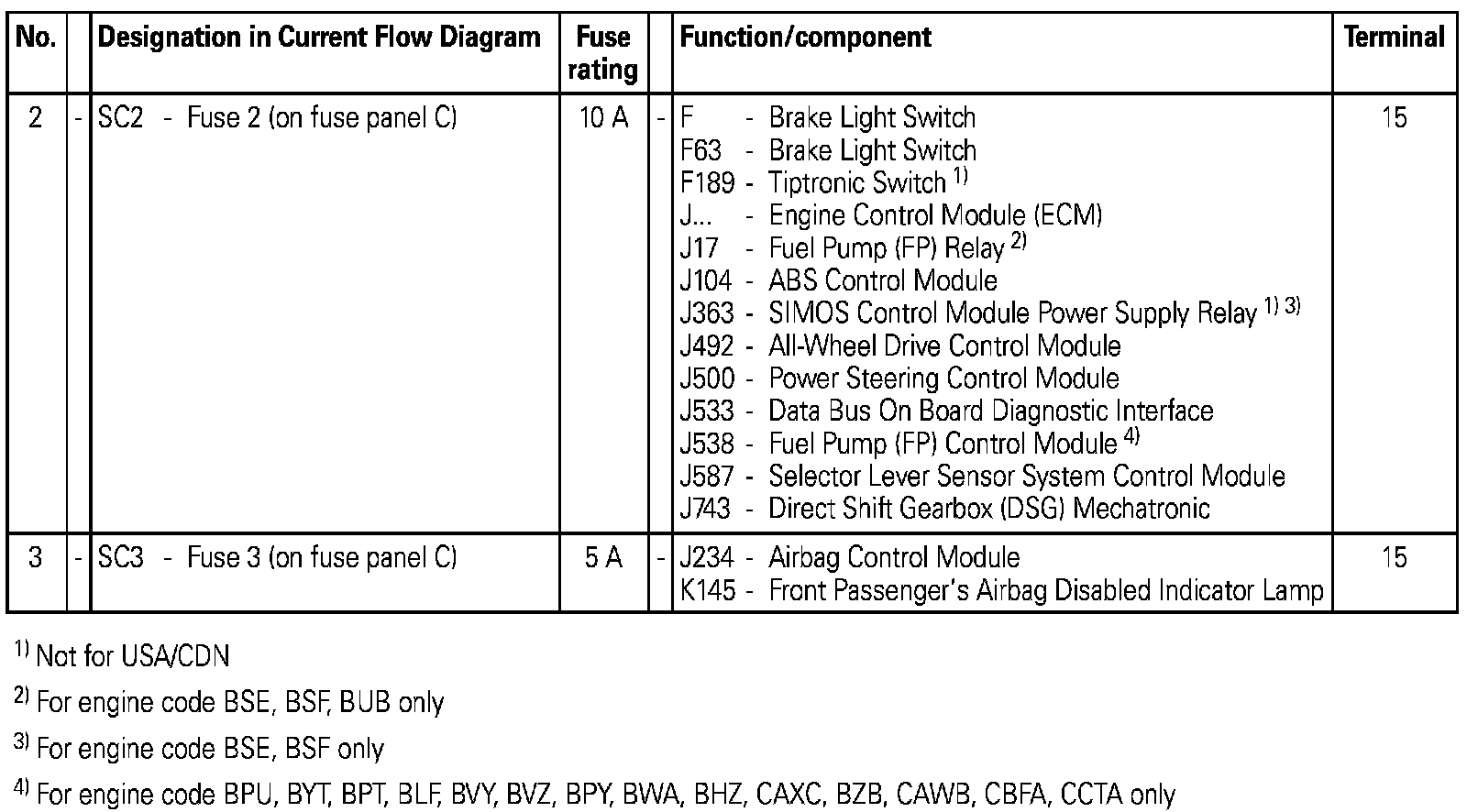

Fuses 2 To 3:

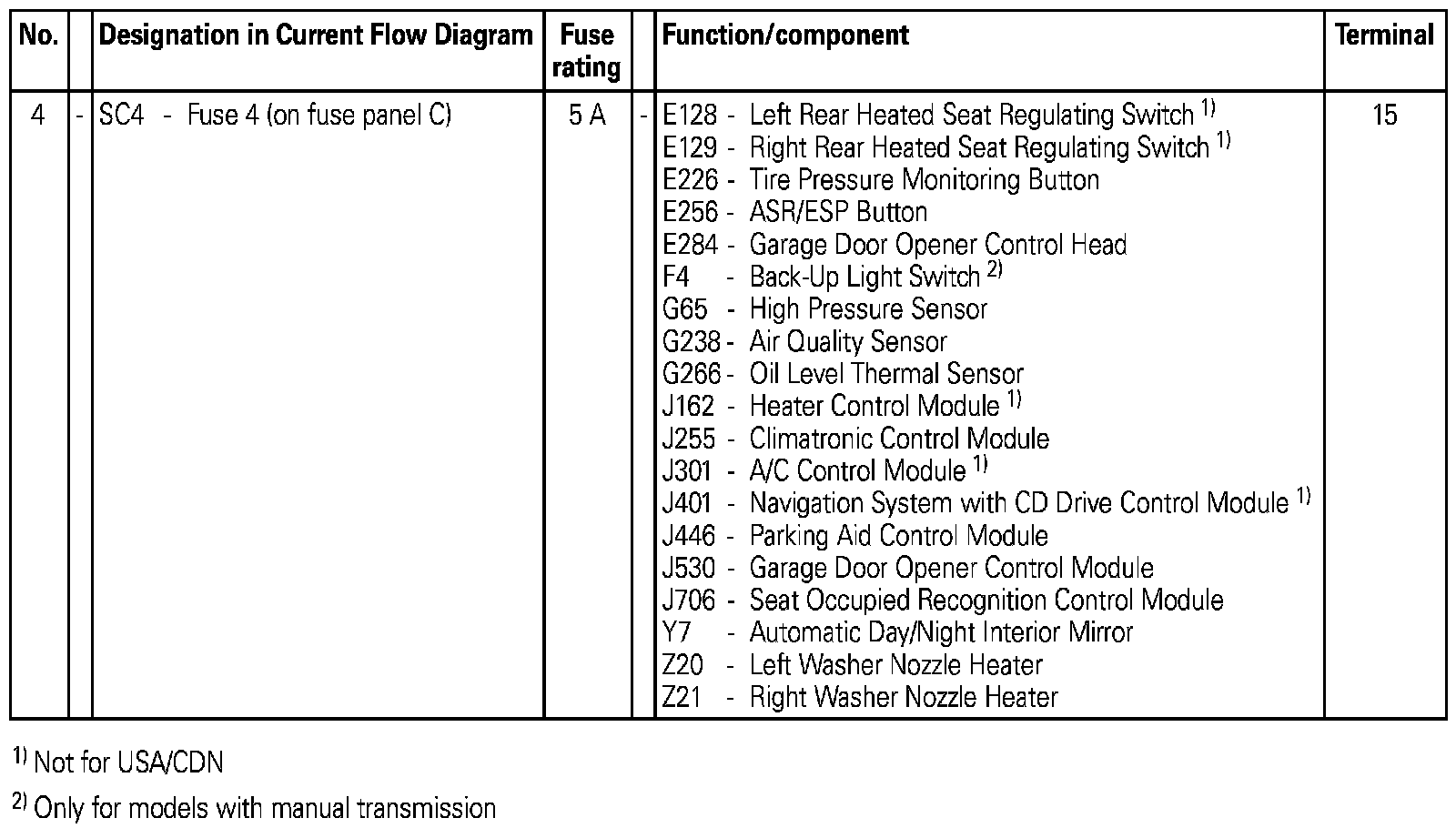

Fuse 4:

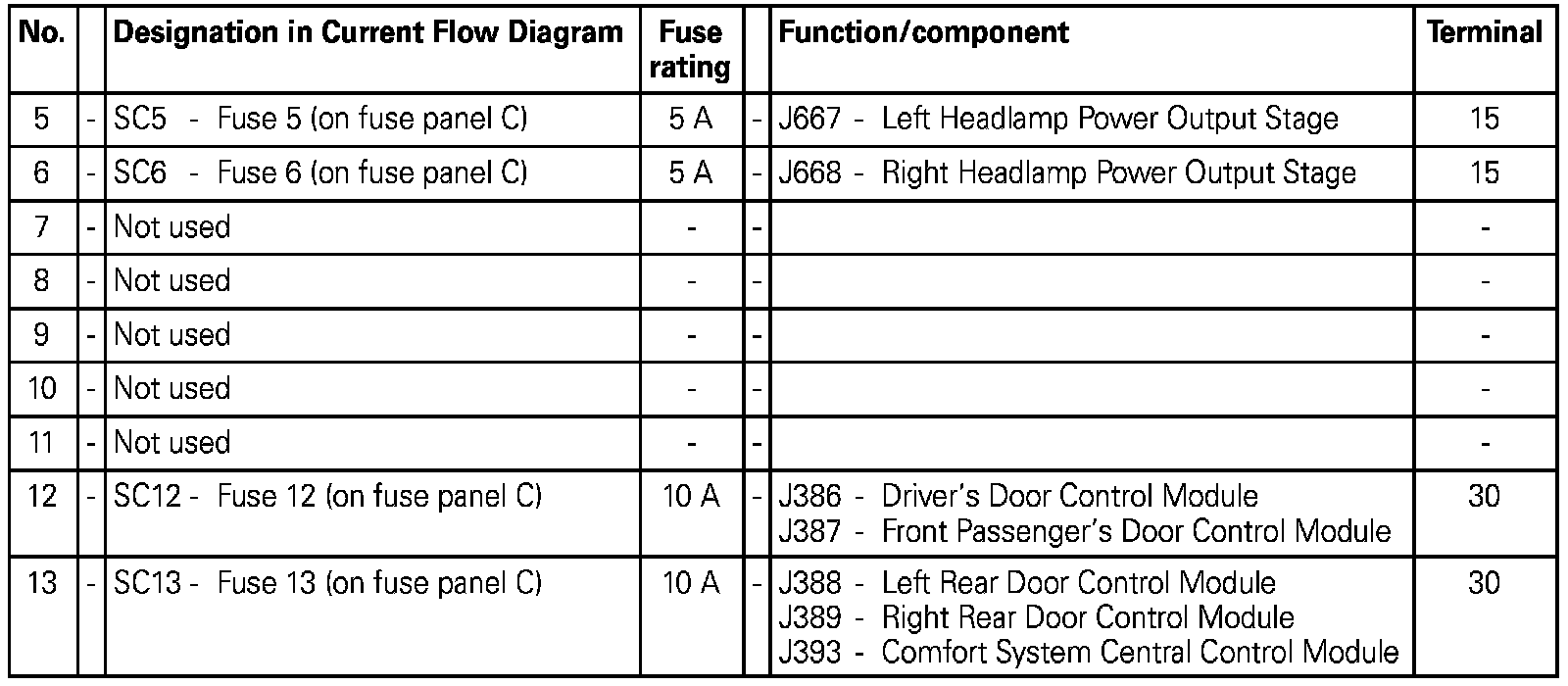

Fuses 5 To 13:

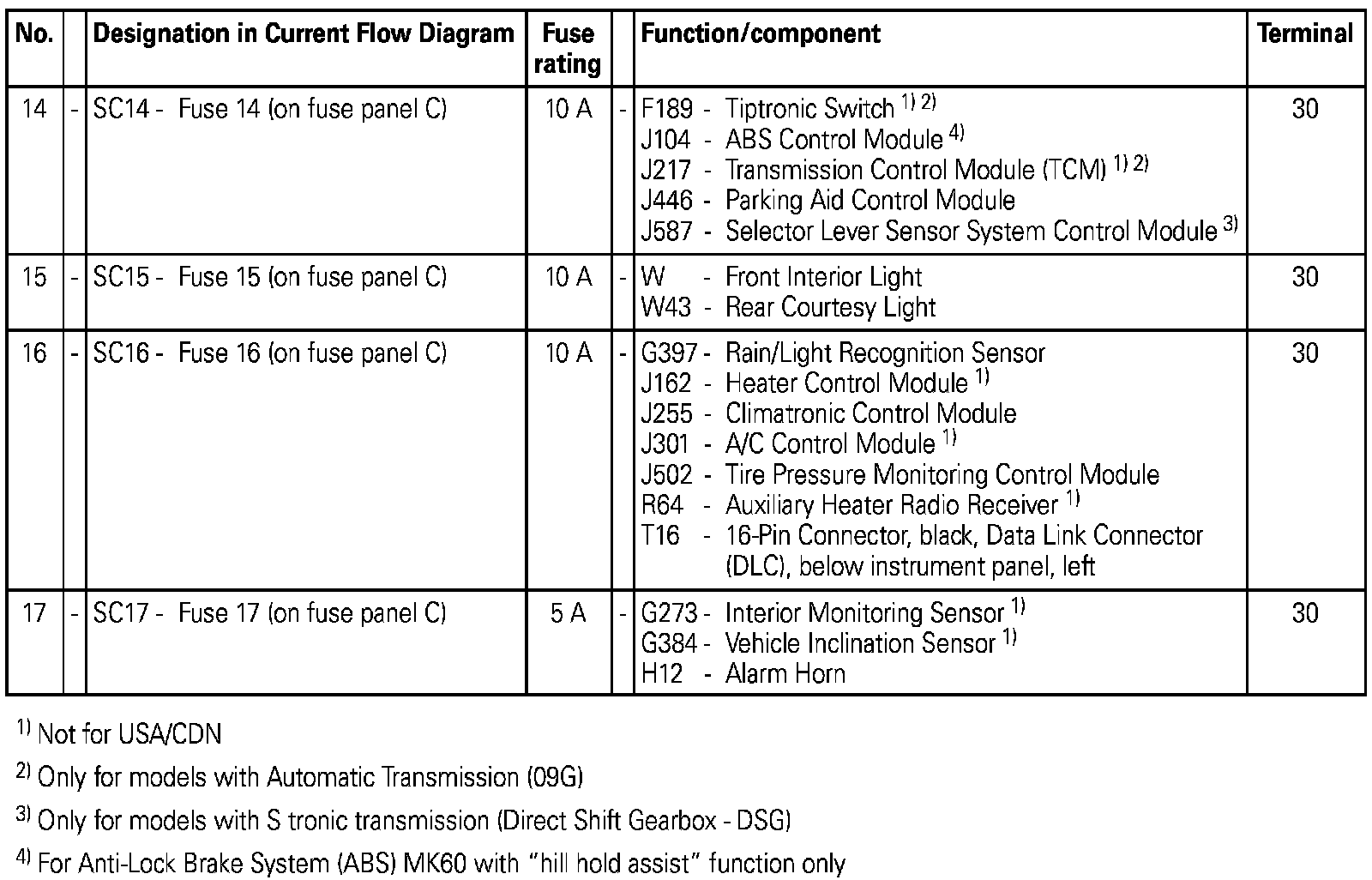

Fuses 14 To 17:

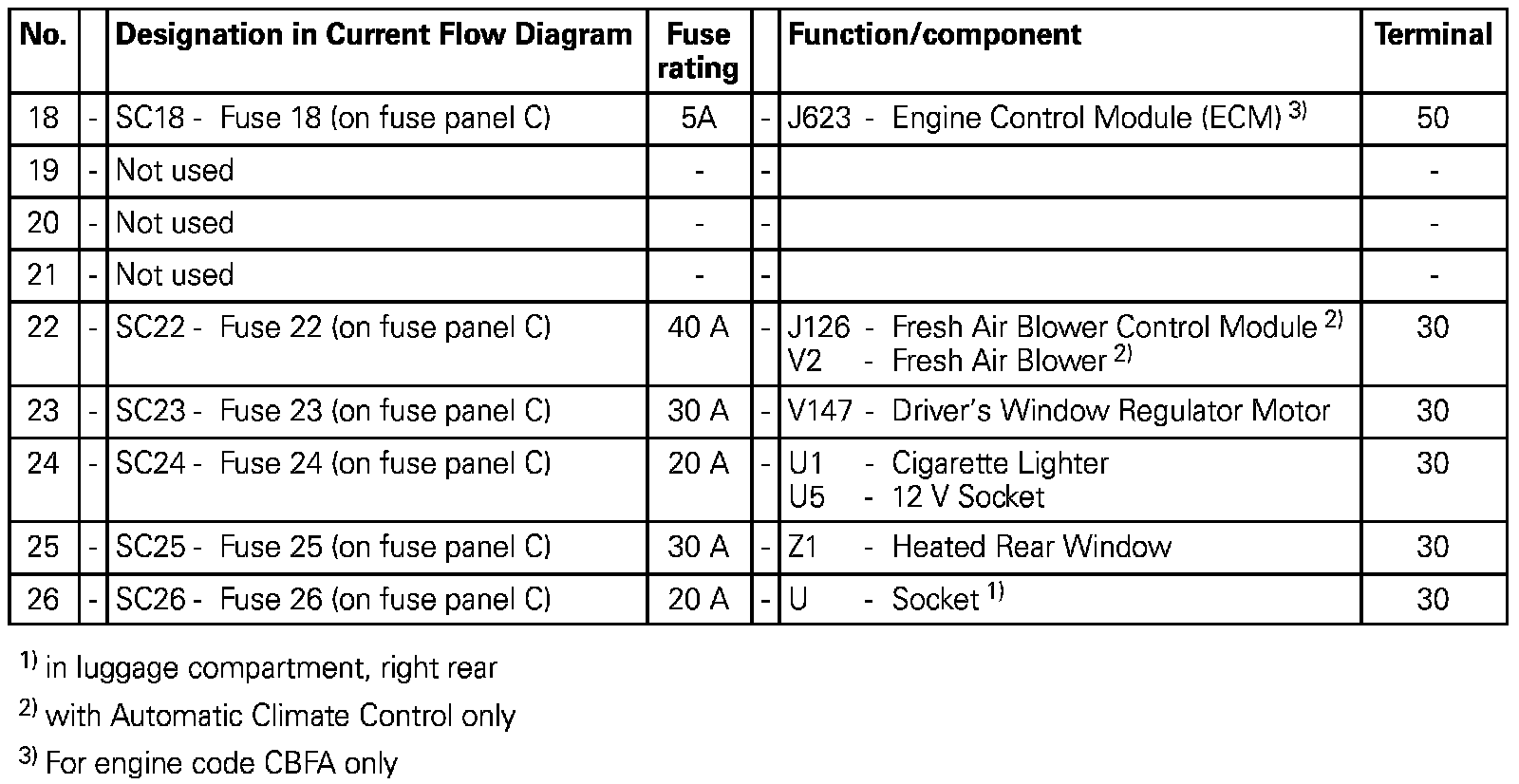

Fuses 18 To 26:

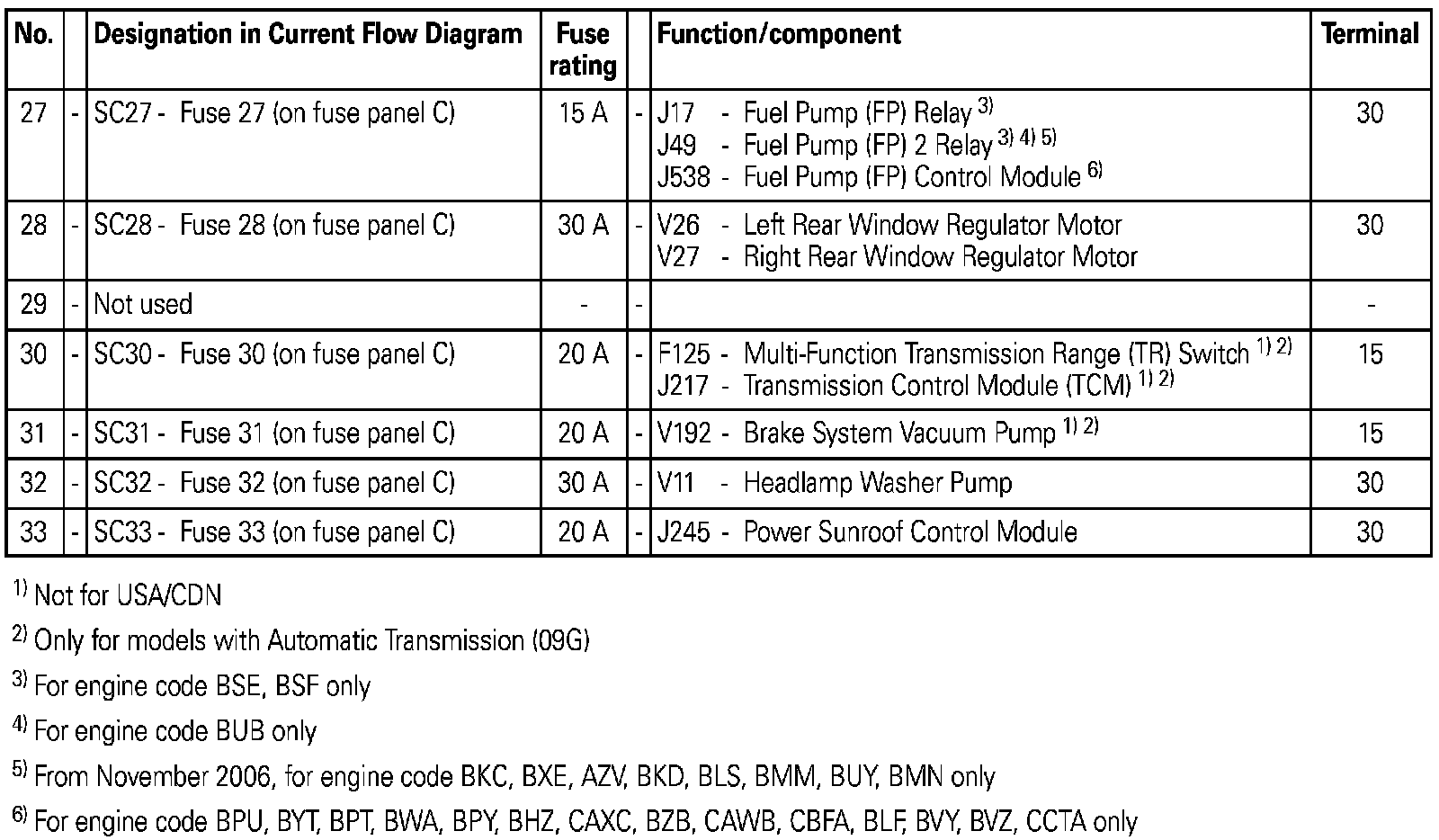

Fuses 27 To 33:

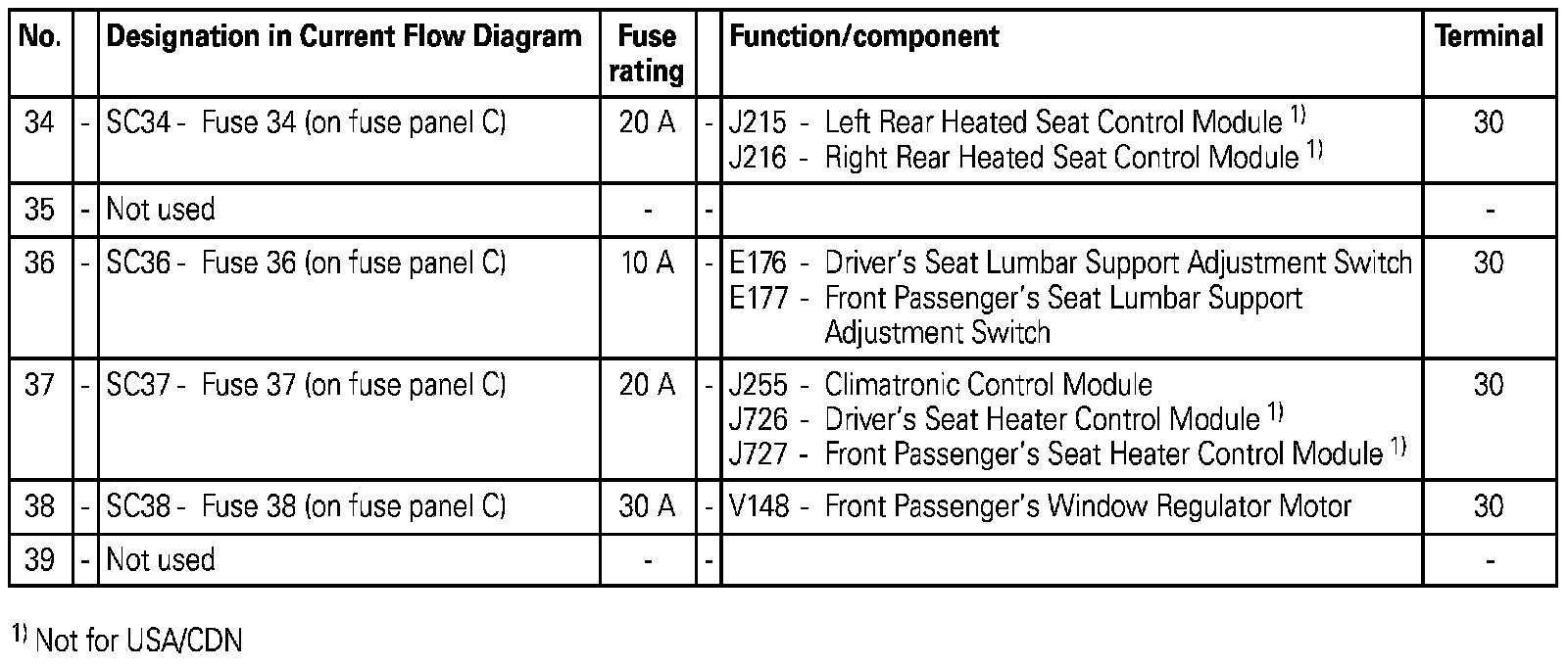

Fuses 34 To 39:

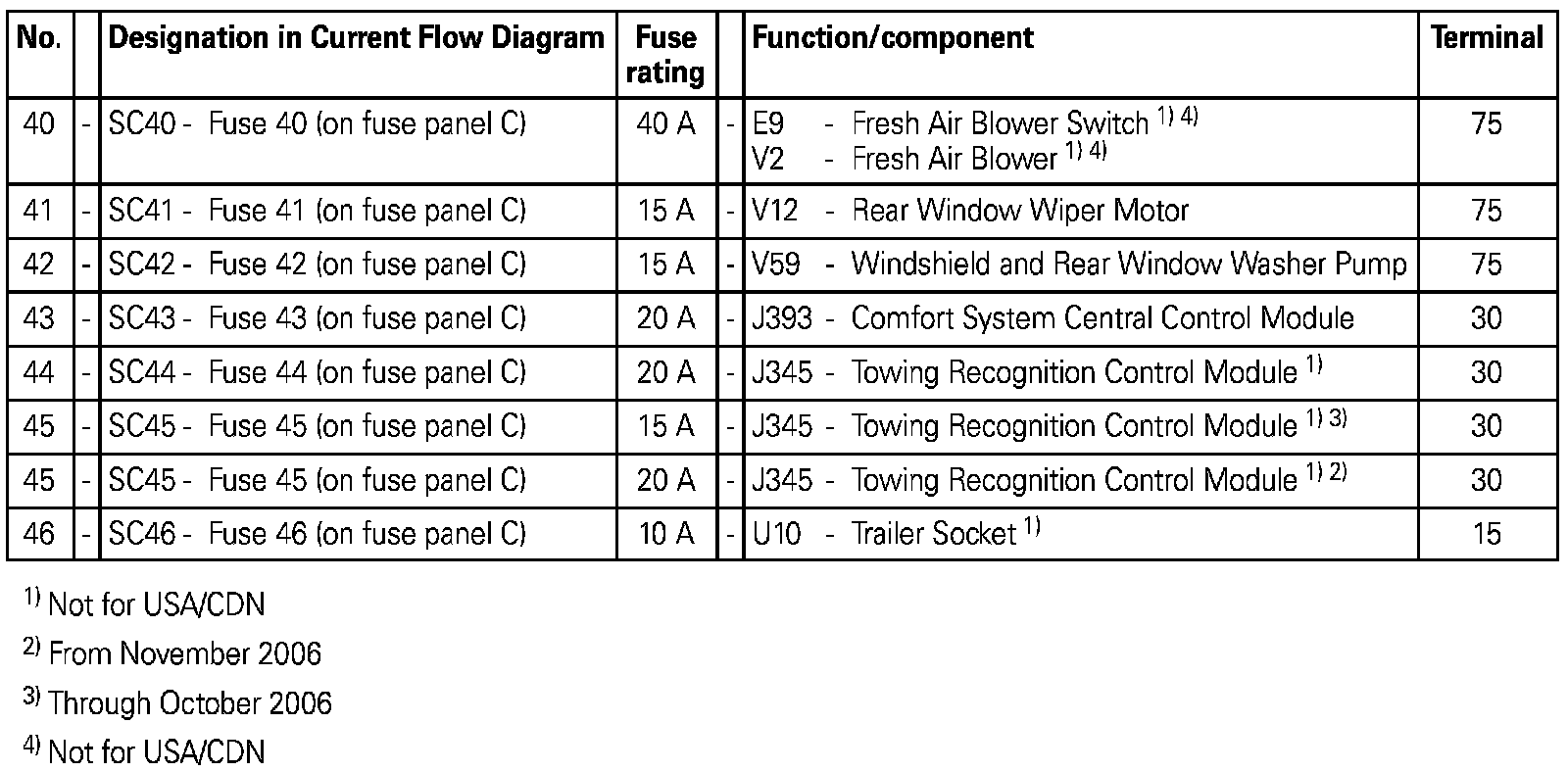

Fuses 40 To 46:

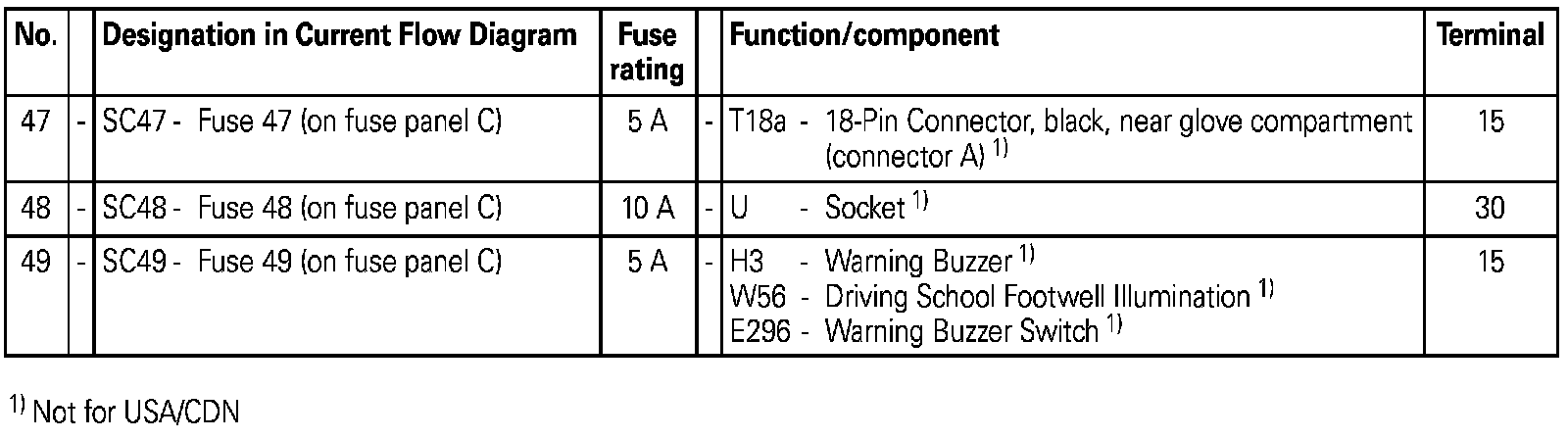

Fuses 47 To 49:
