Fuses on Fuse Panel "B" Integrated With E-Box High In Engine Compartment

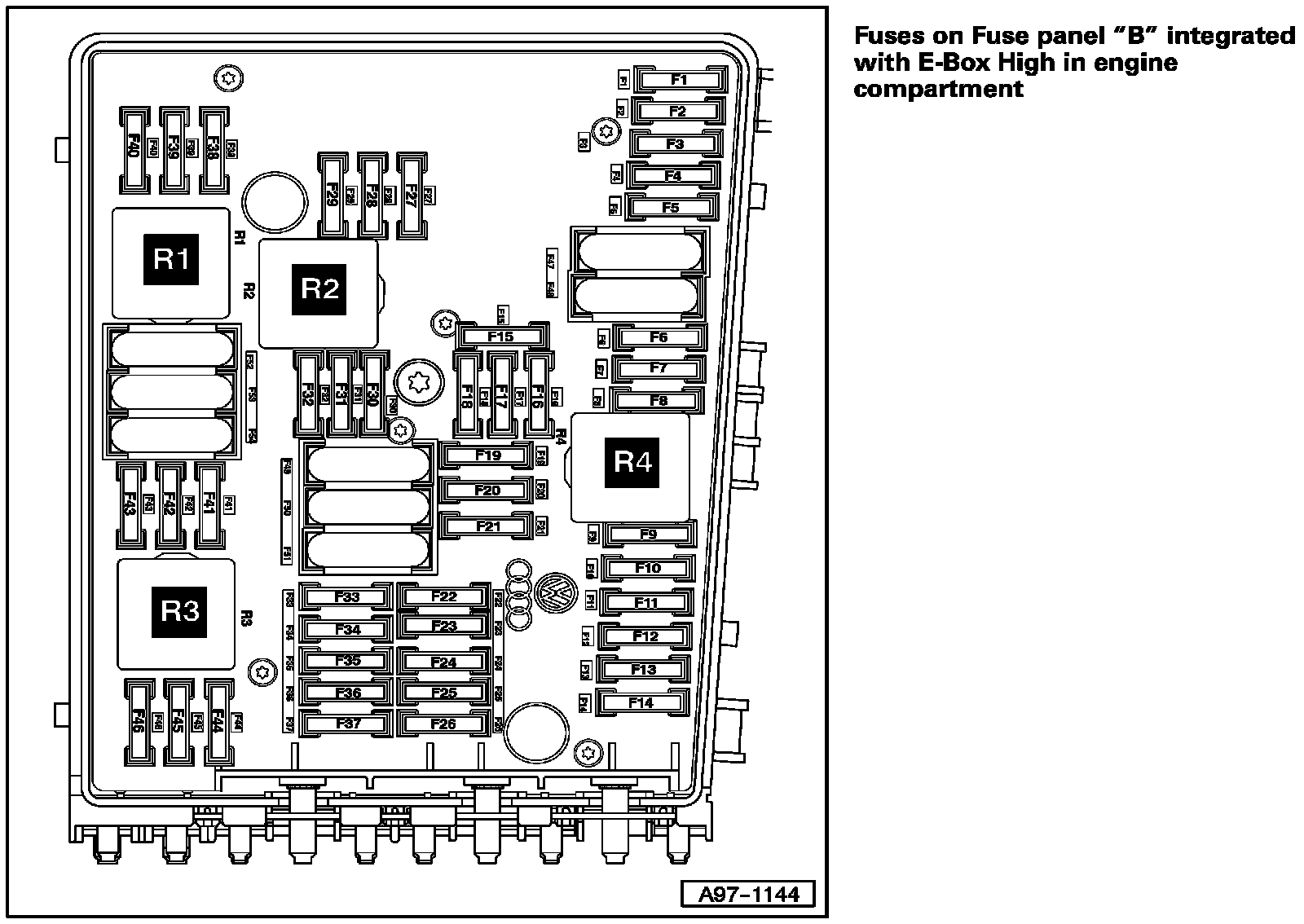

Fuses On Fuse Panel "B" Integrated With E-Box High In Engine Compartment:

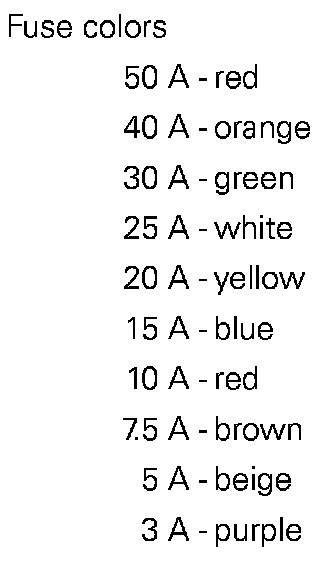

Fuse Colors:

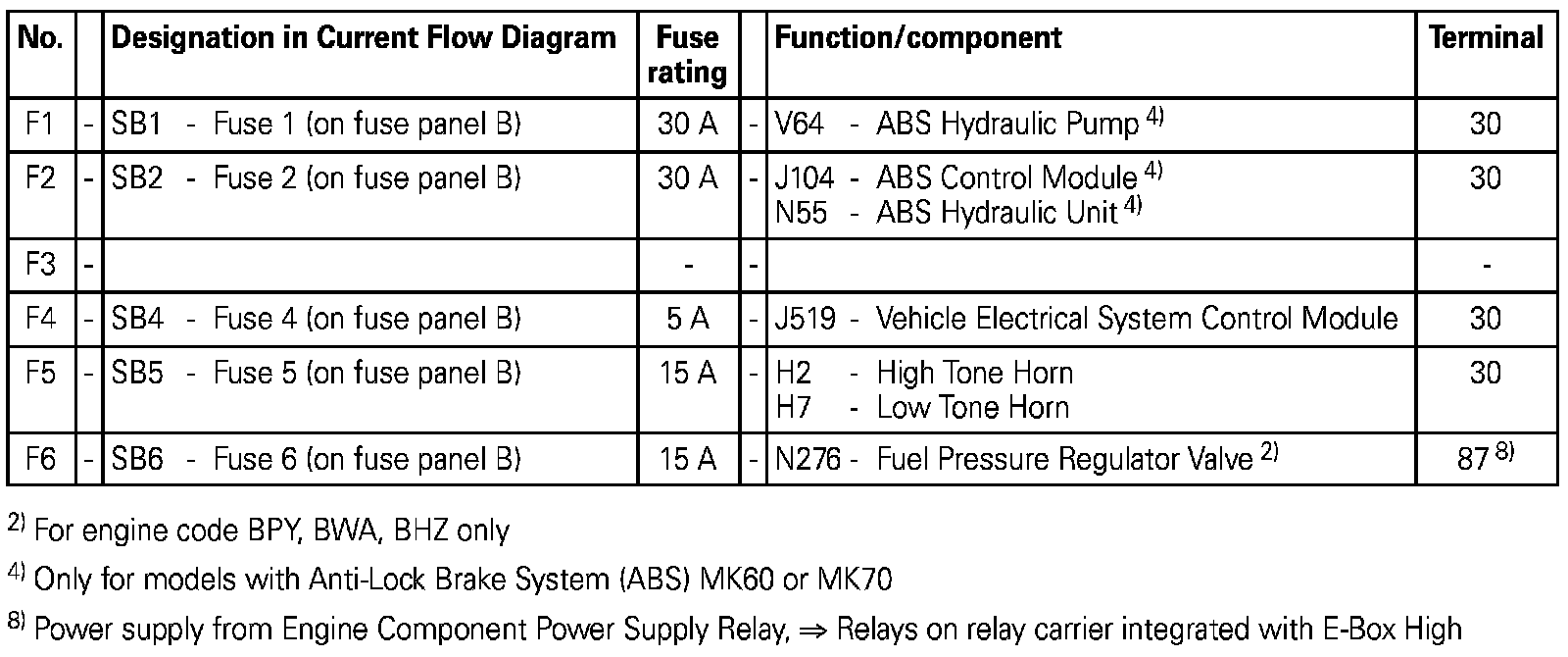

Fuses F1 To F6:

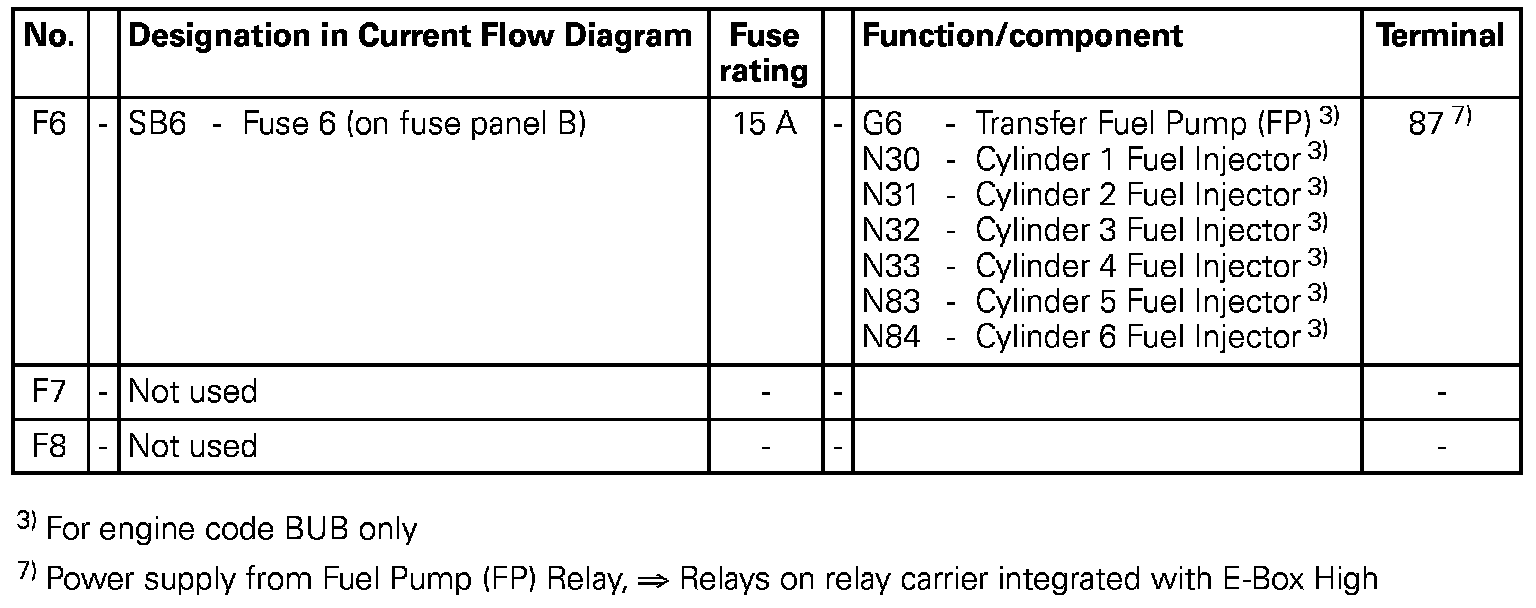

Fuses F6 To F8:

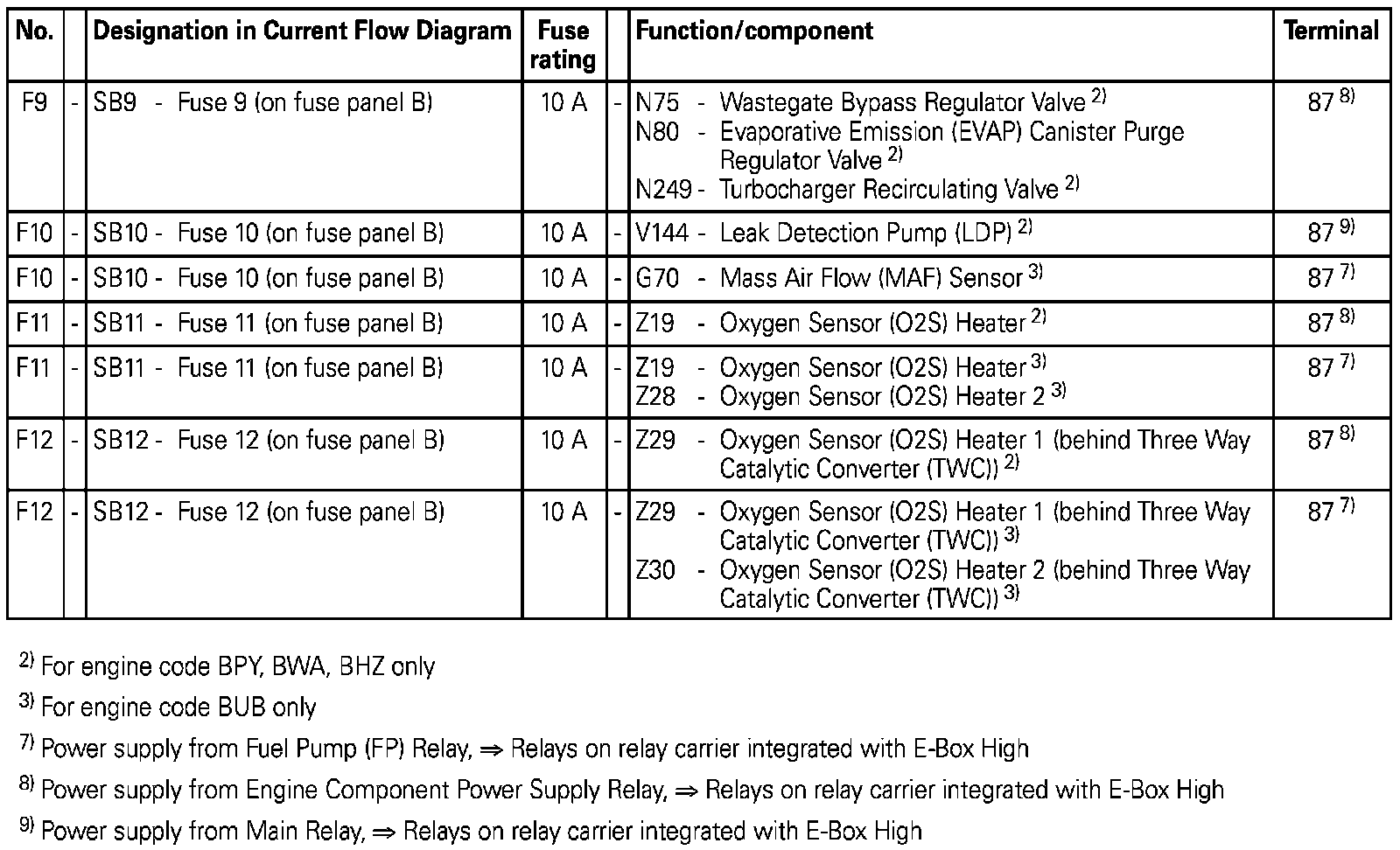

Fuses F9 To F12:

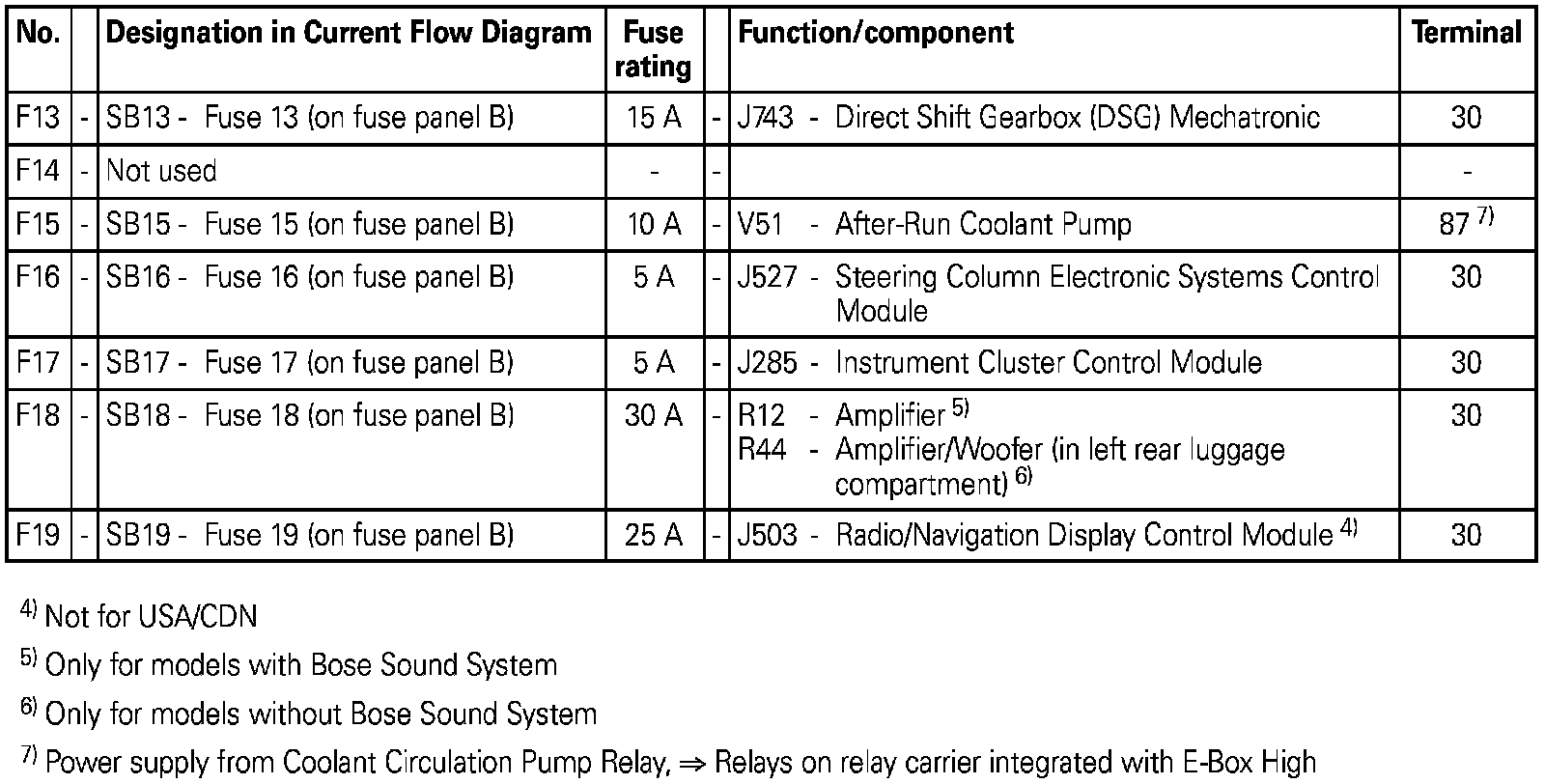

Fuses F13 To F19:

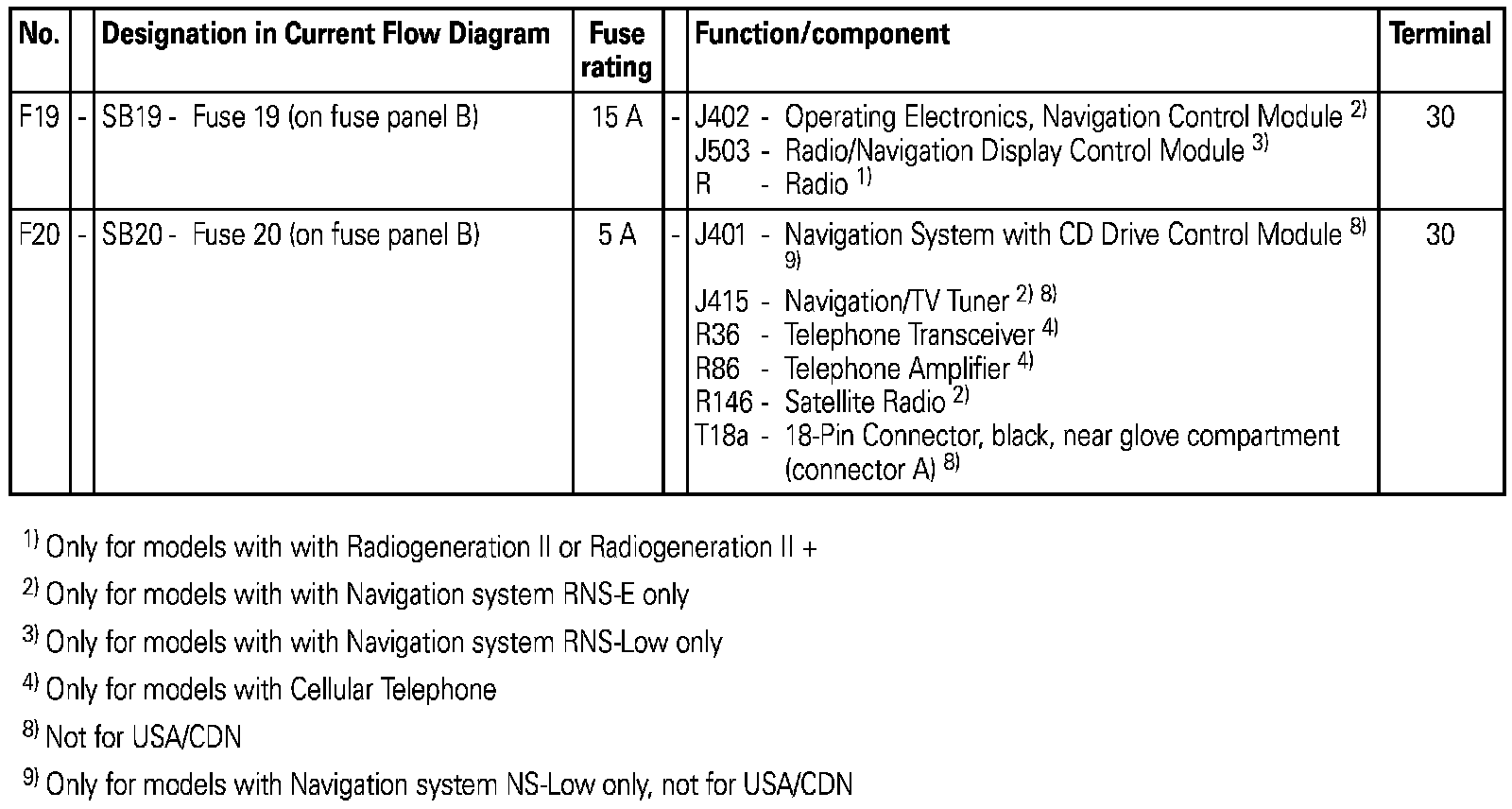

Fuses F19 To F20:

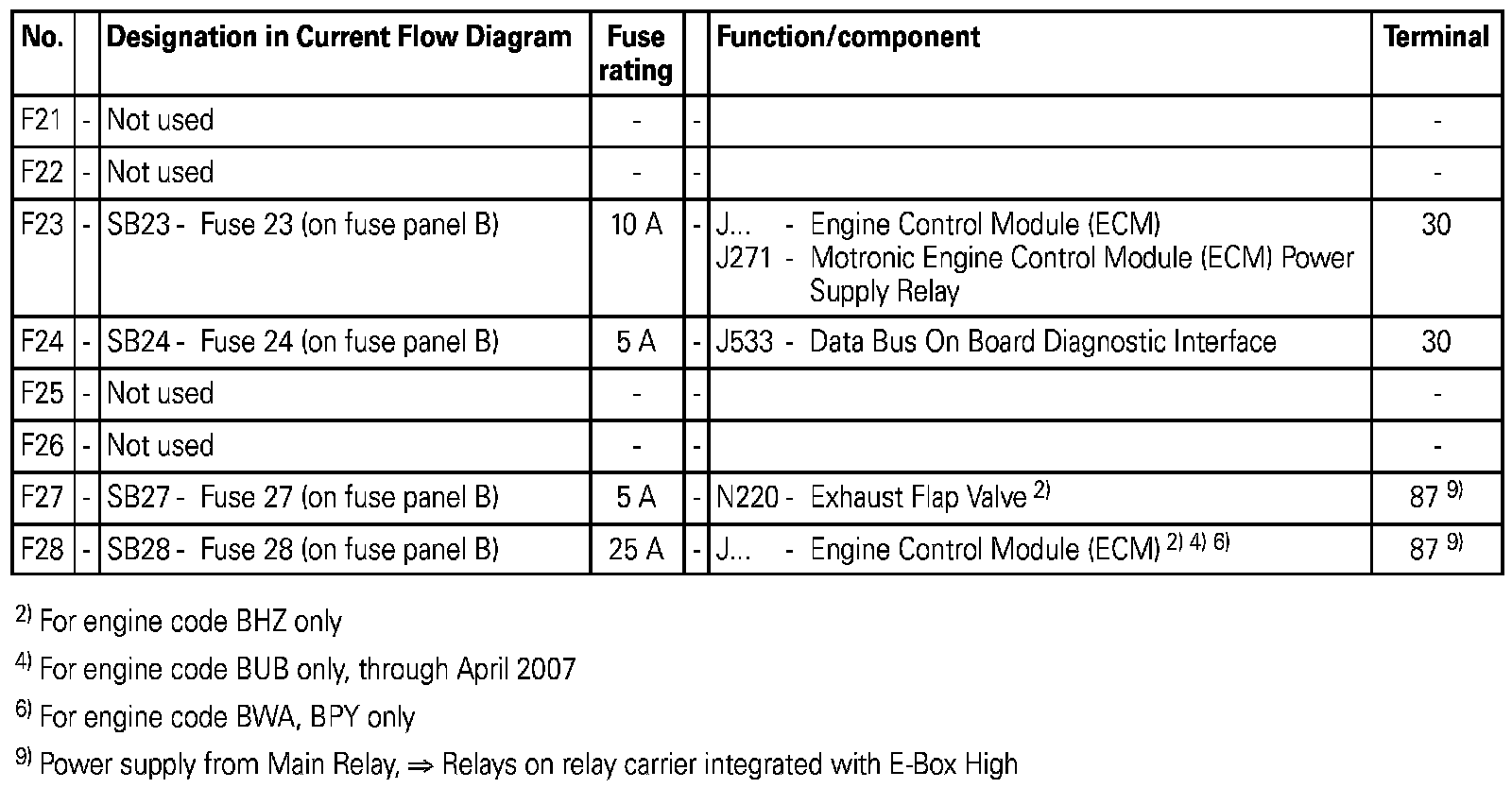

Fuses F21 To F28:

Fuses F28 To F34:

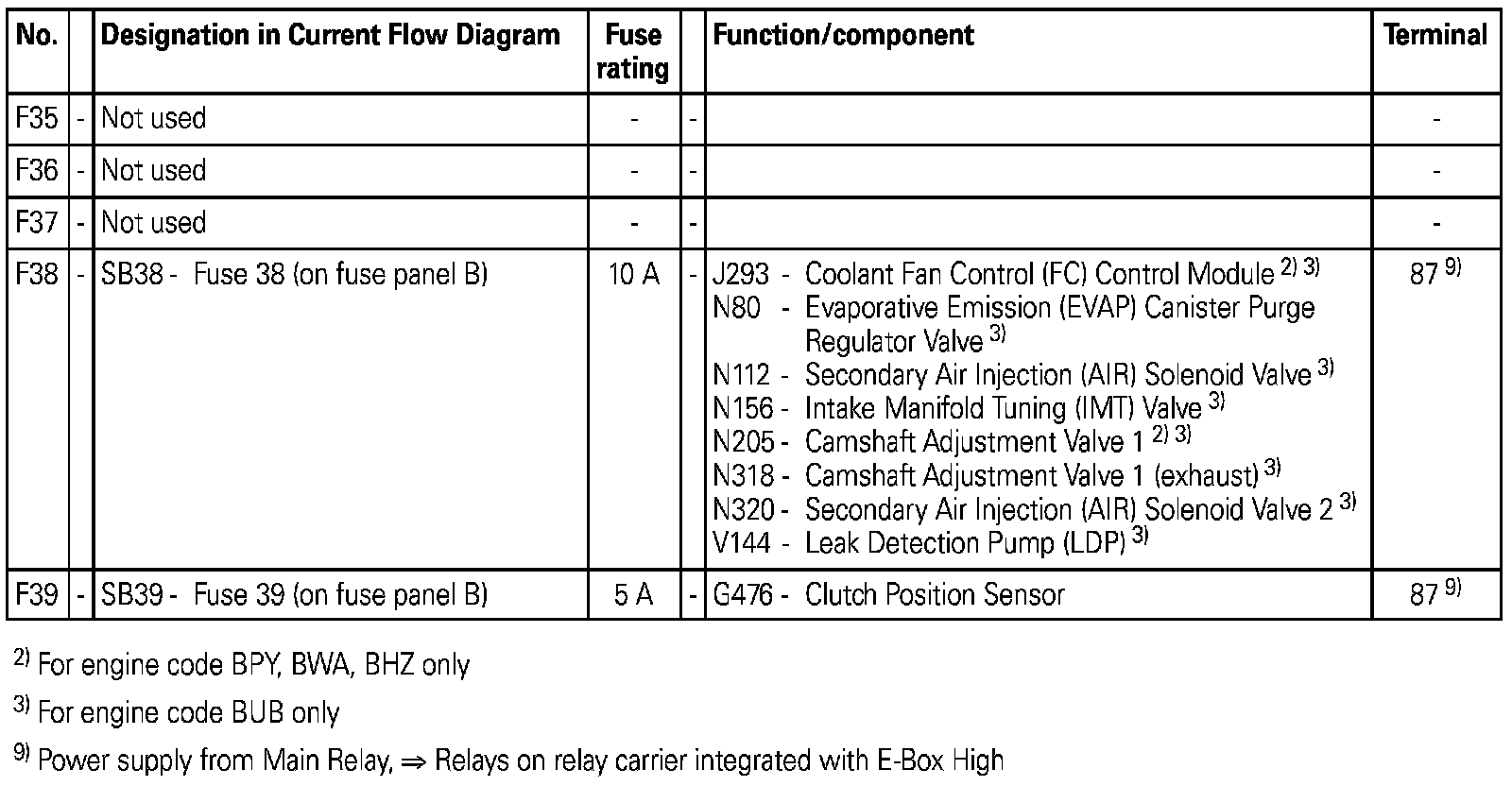

Fuses F35 To F39:

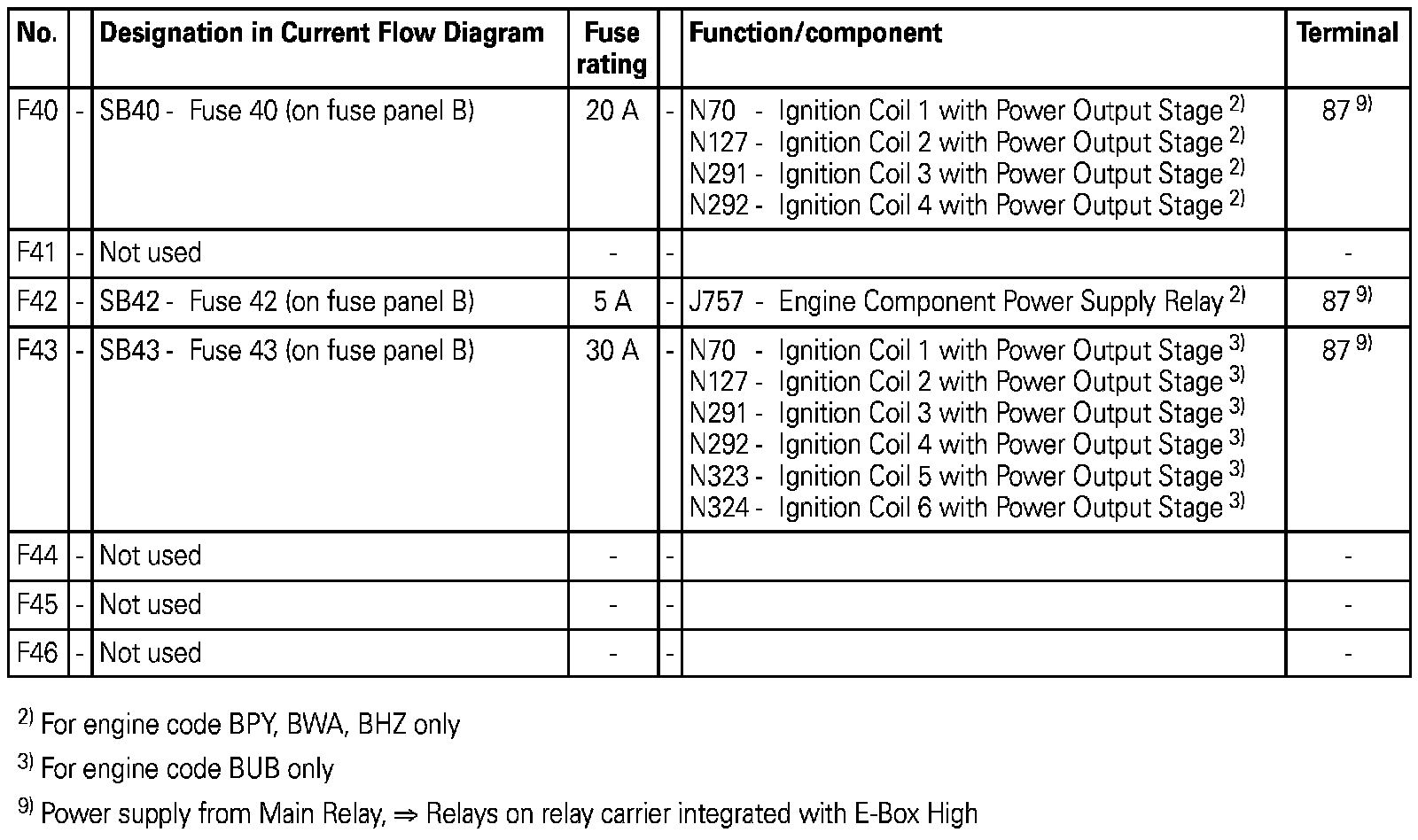

Fuses F40 To F46:

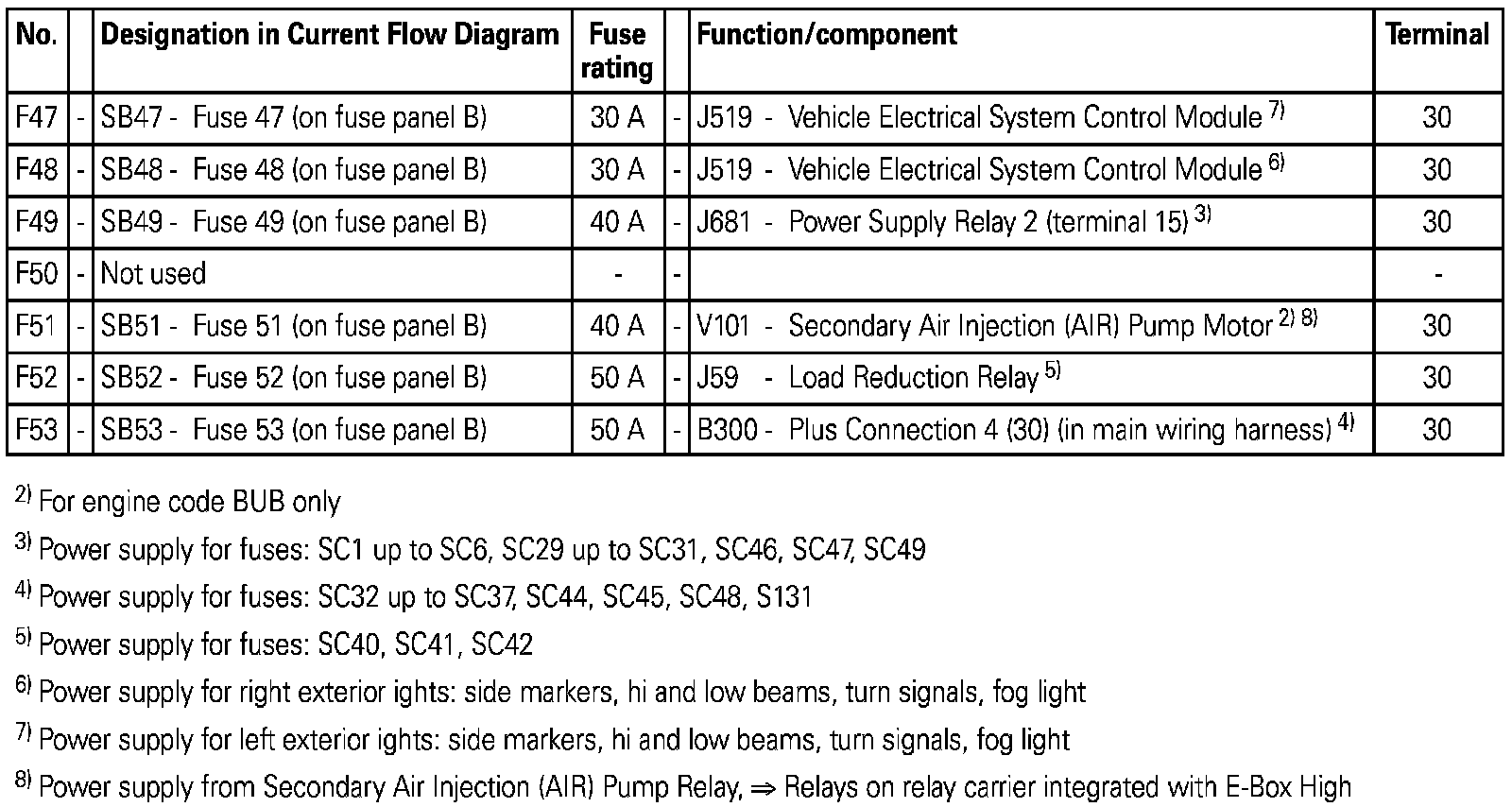

Fuses F47 To F53:
