Fuses On Fuse Panel "B" Integrated With E-Box Low In Engine Compartment

Fuses On Fuse Panel "B" Integrated With E-Box Low In Engine Compartment:

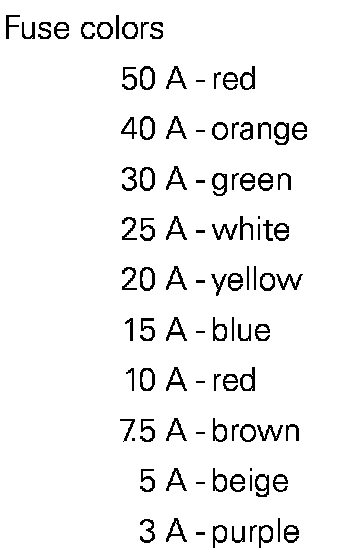

Fuse Colors:

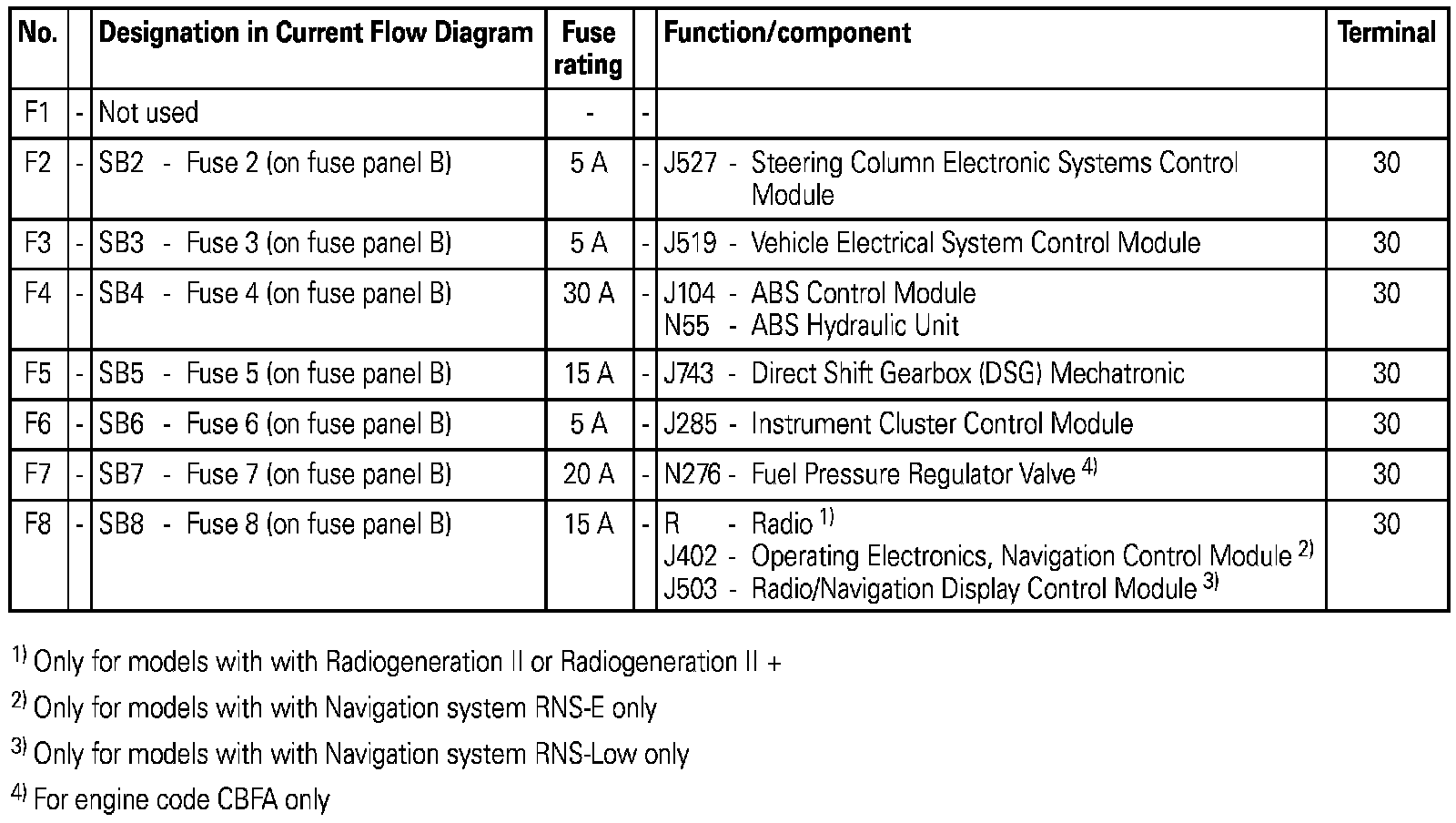

Fuses F1 To F8:

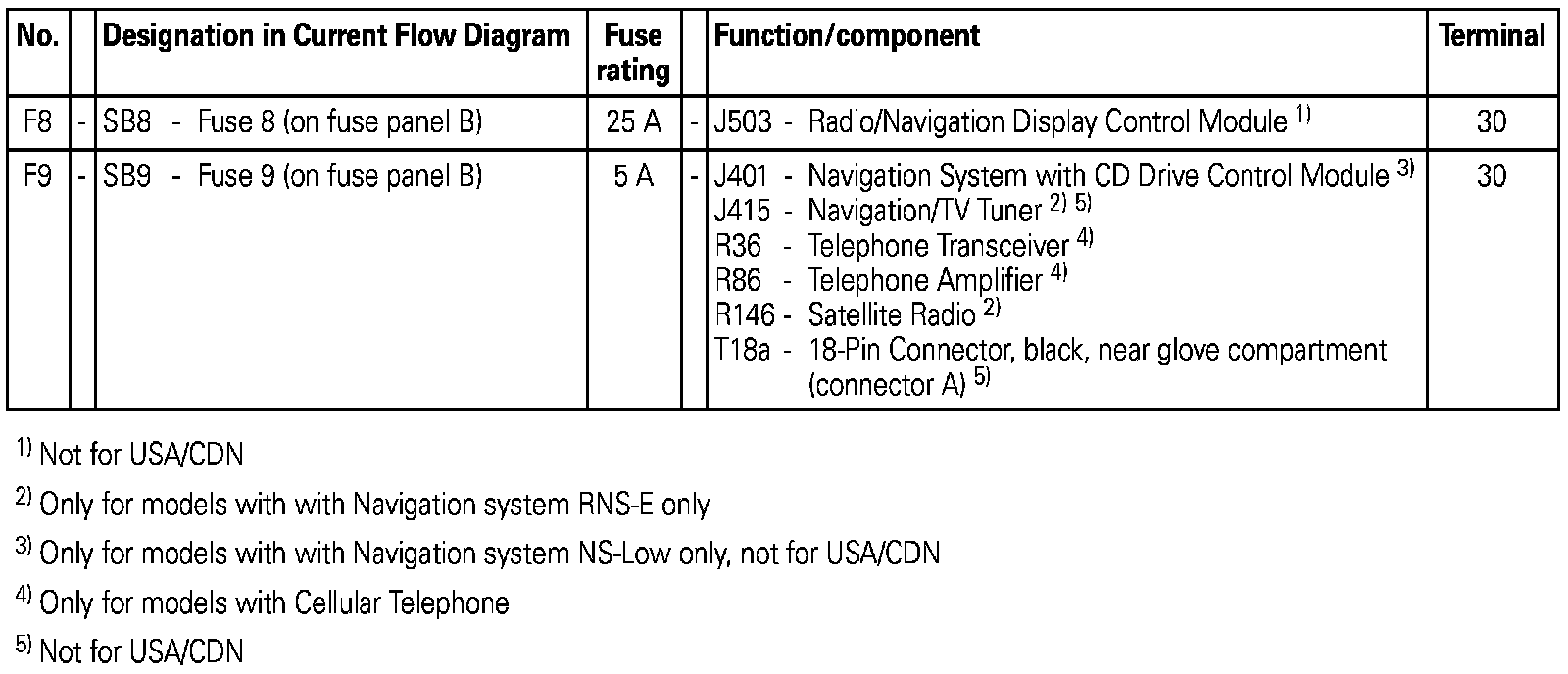

Fuses F8 To F9:

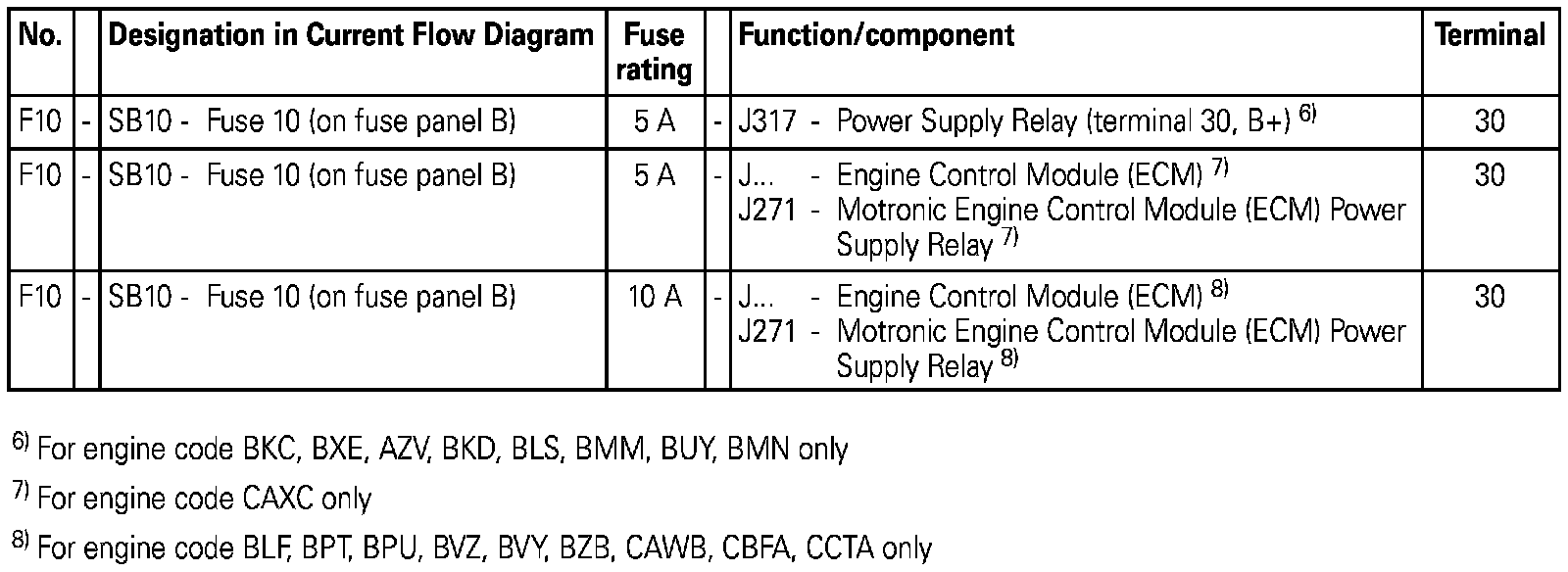

Fuse F10:

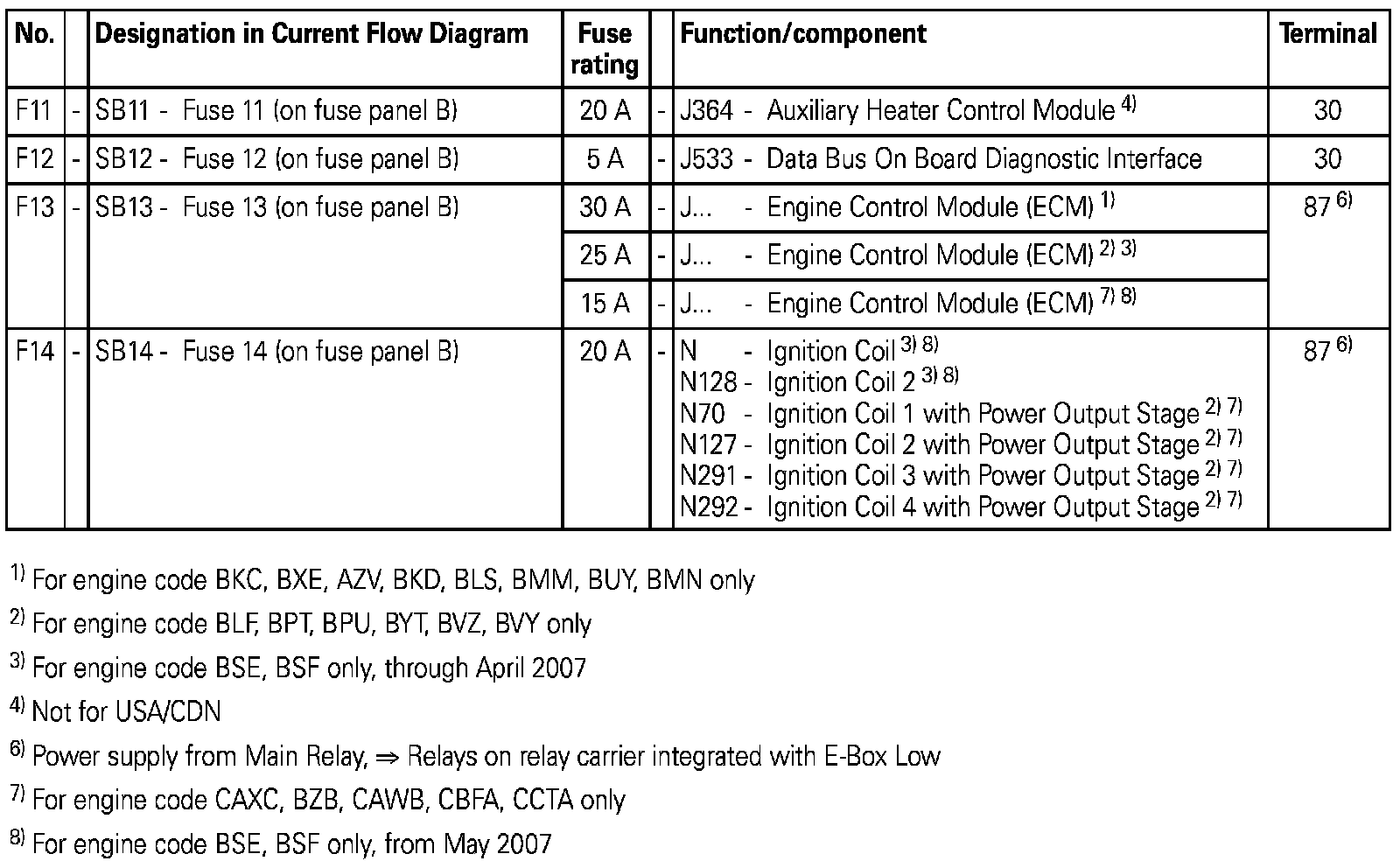

Fuses F11 To F14:

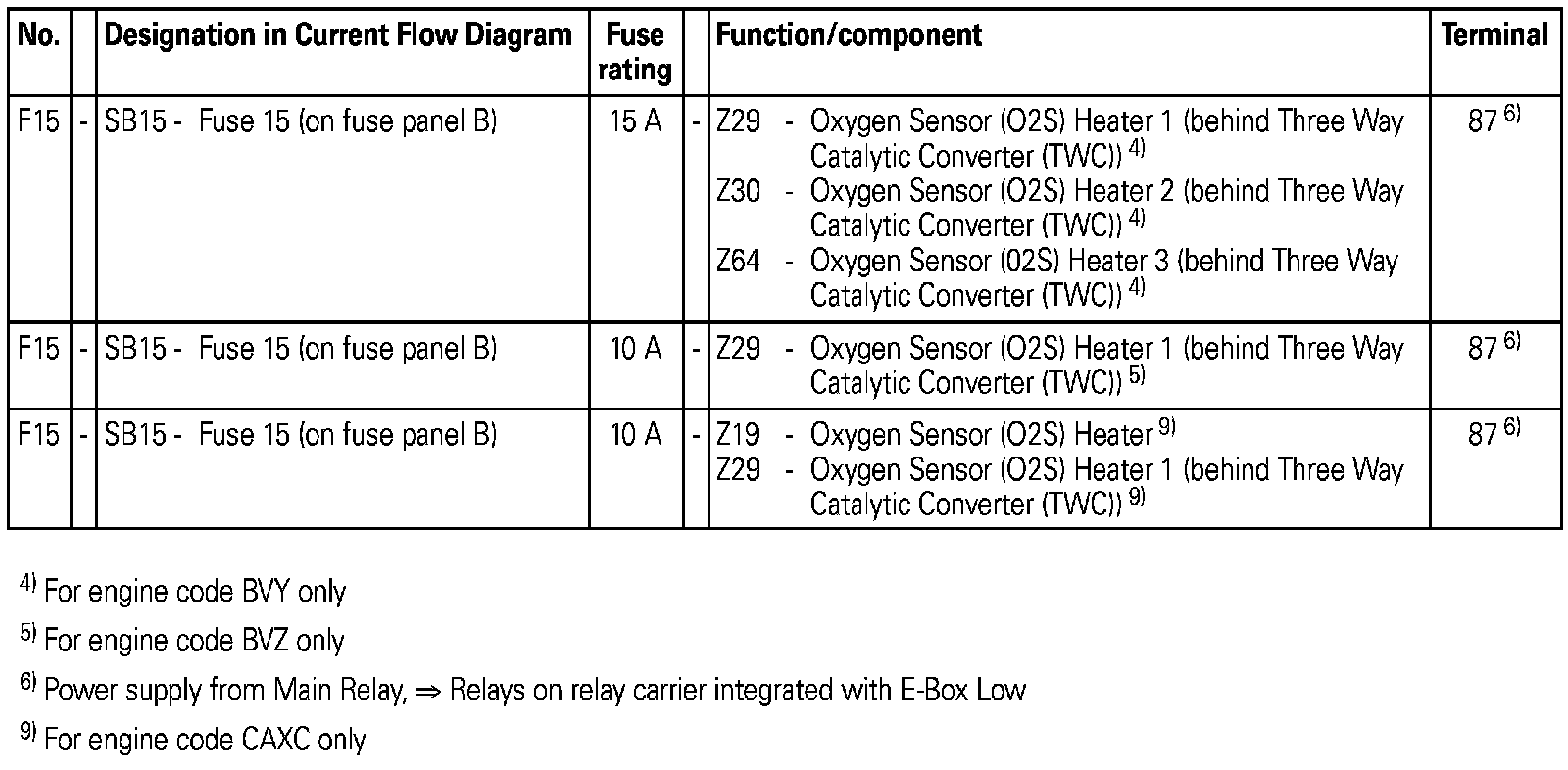

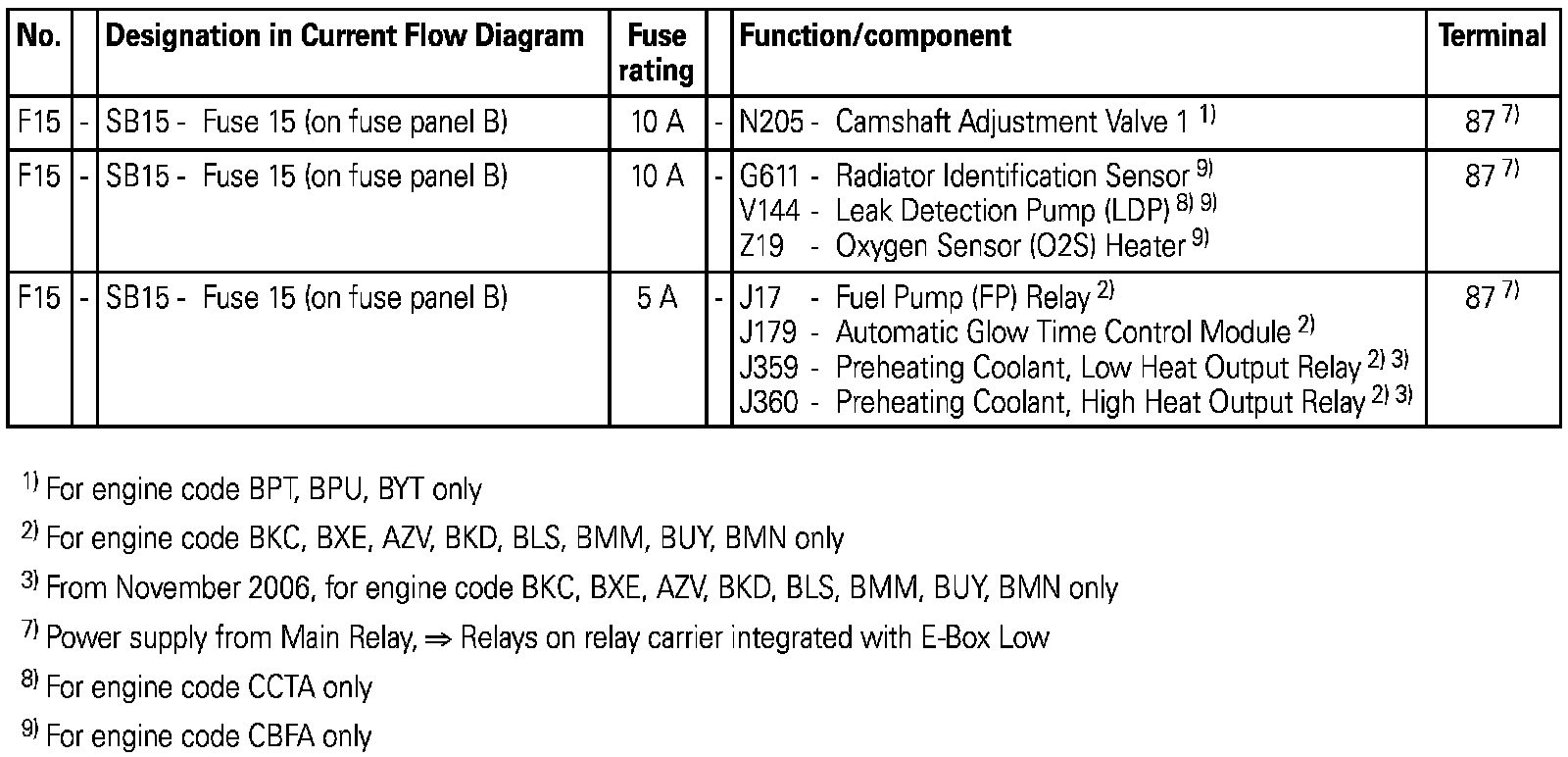

Fuse F15:

Fuse F15:

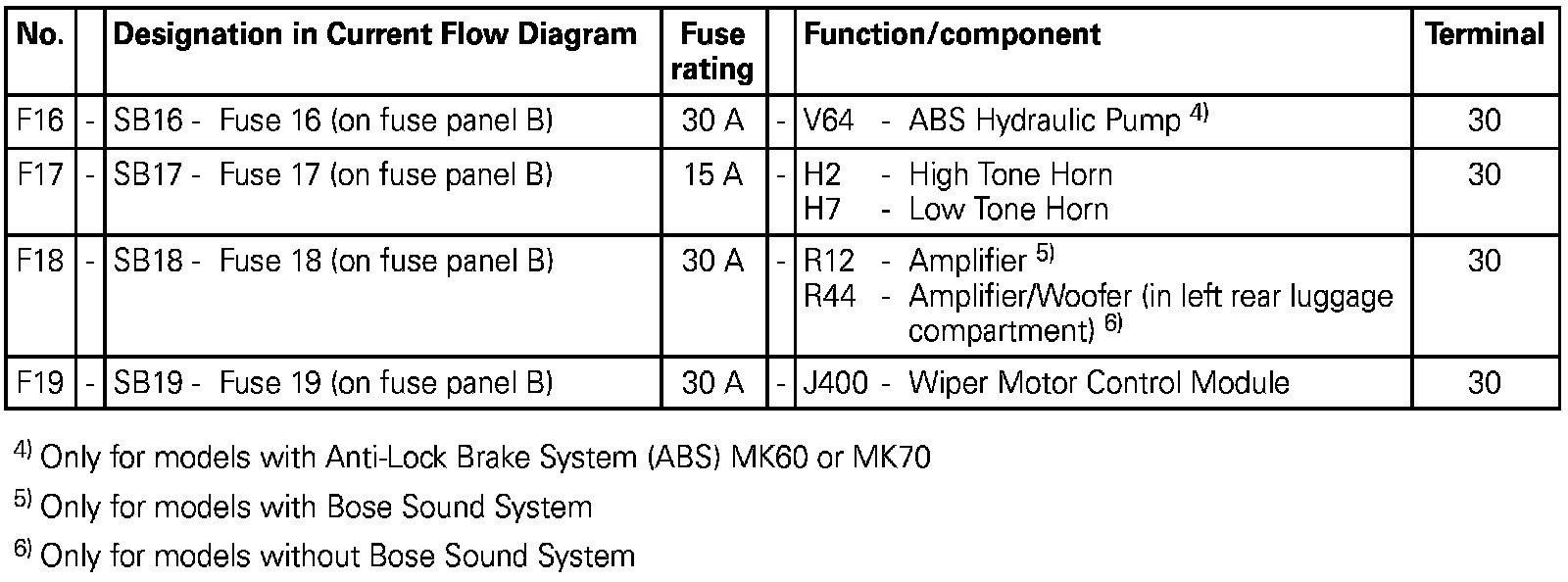

Fuses F16 To F19:

Fuses F20 To F22:

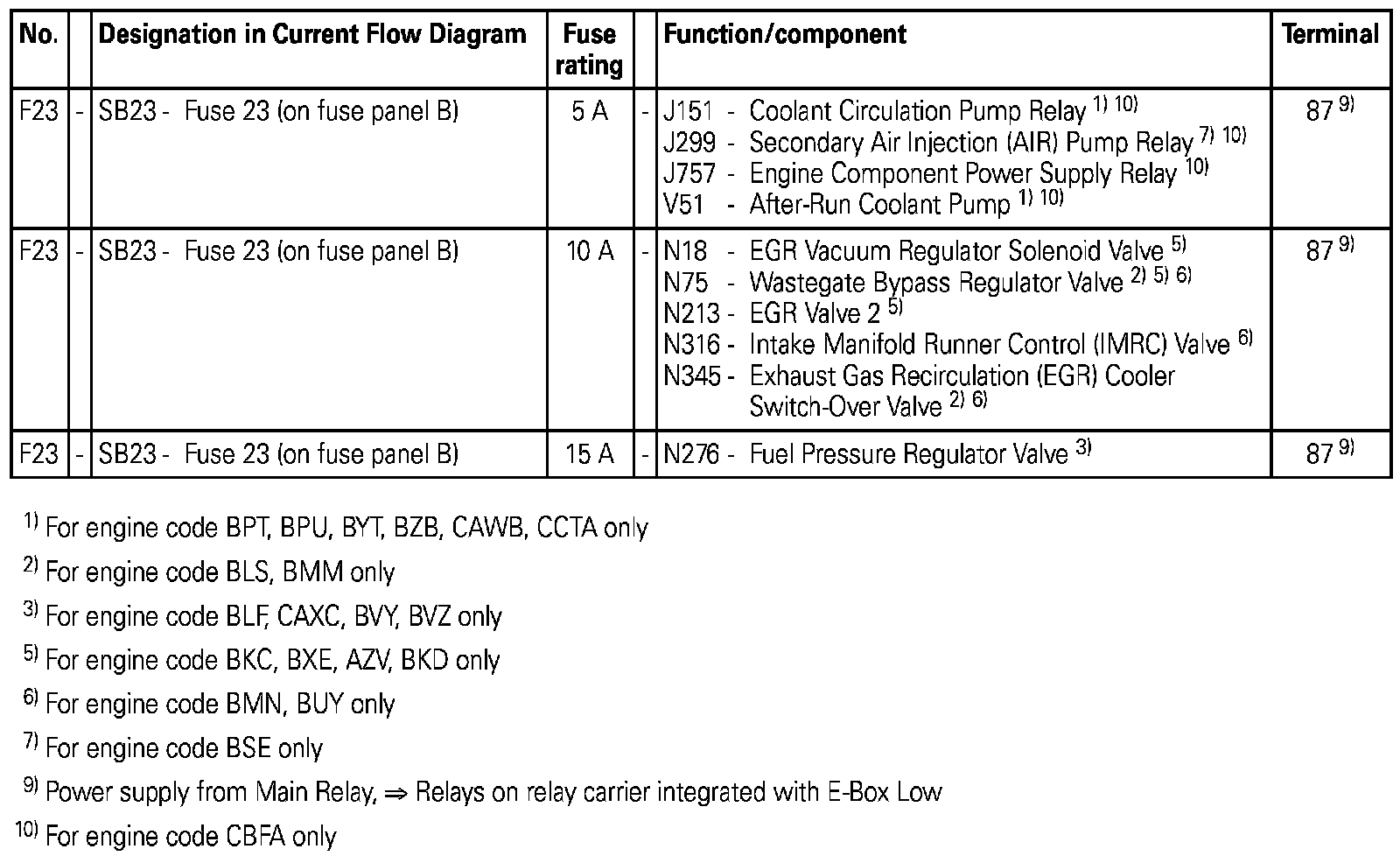

Fuse F23:

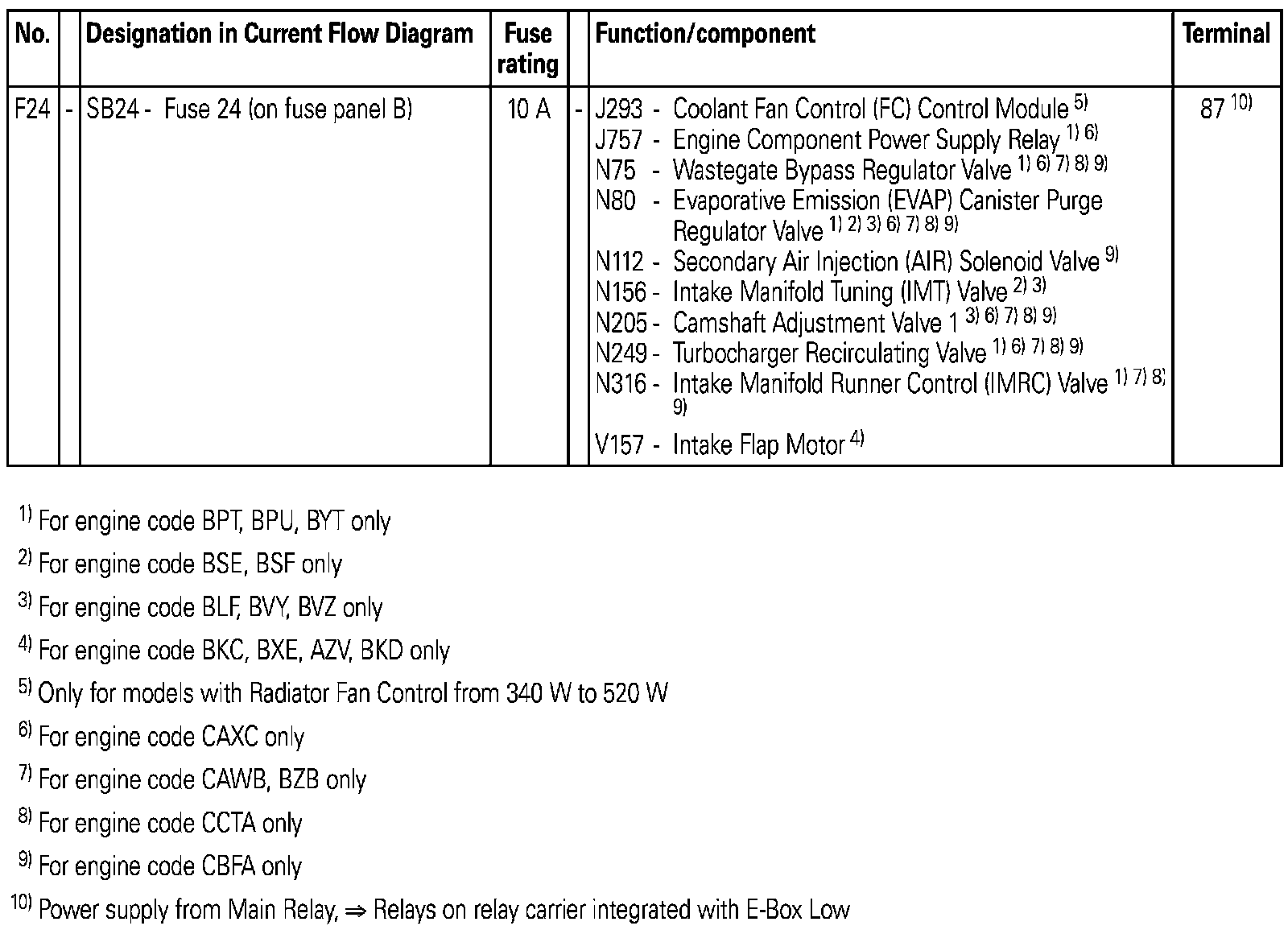

Fuse F24:

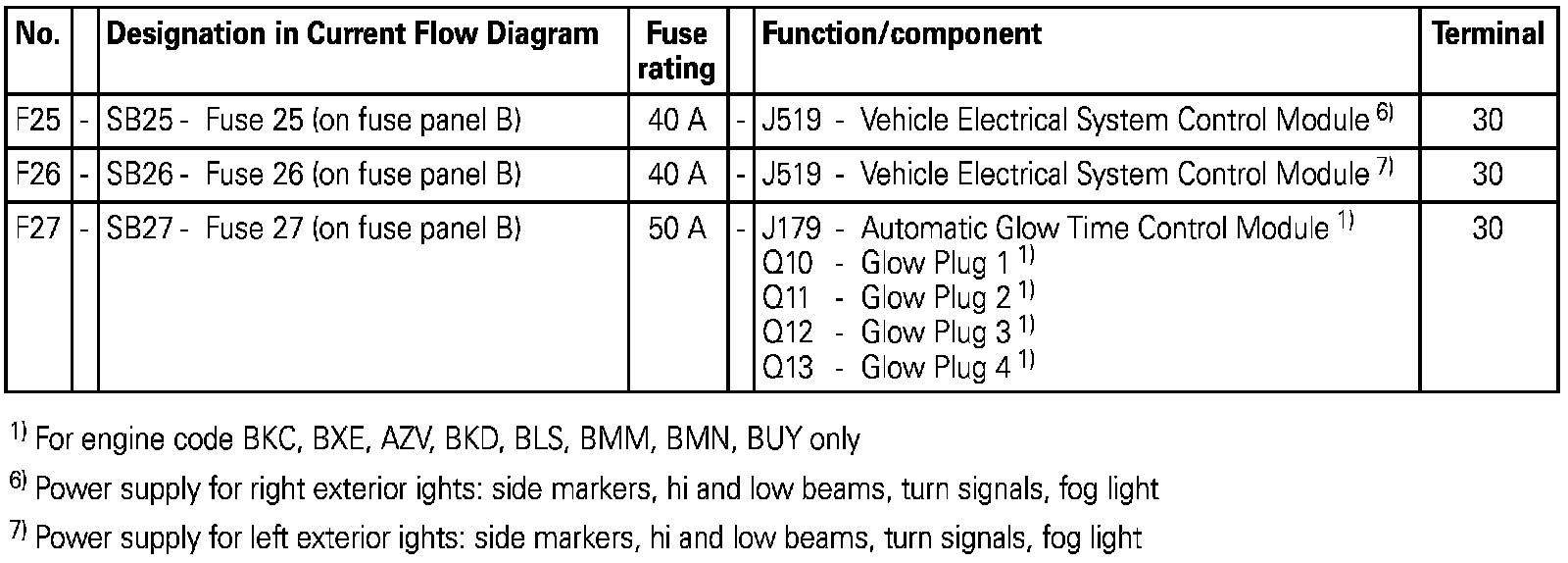

Fuses F25 To F27:

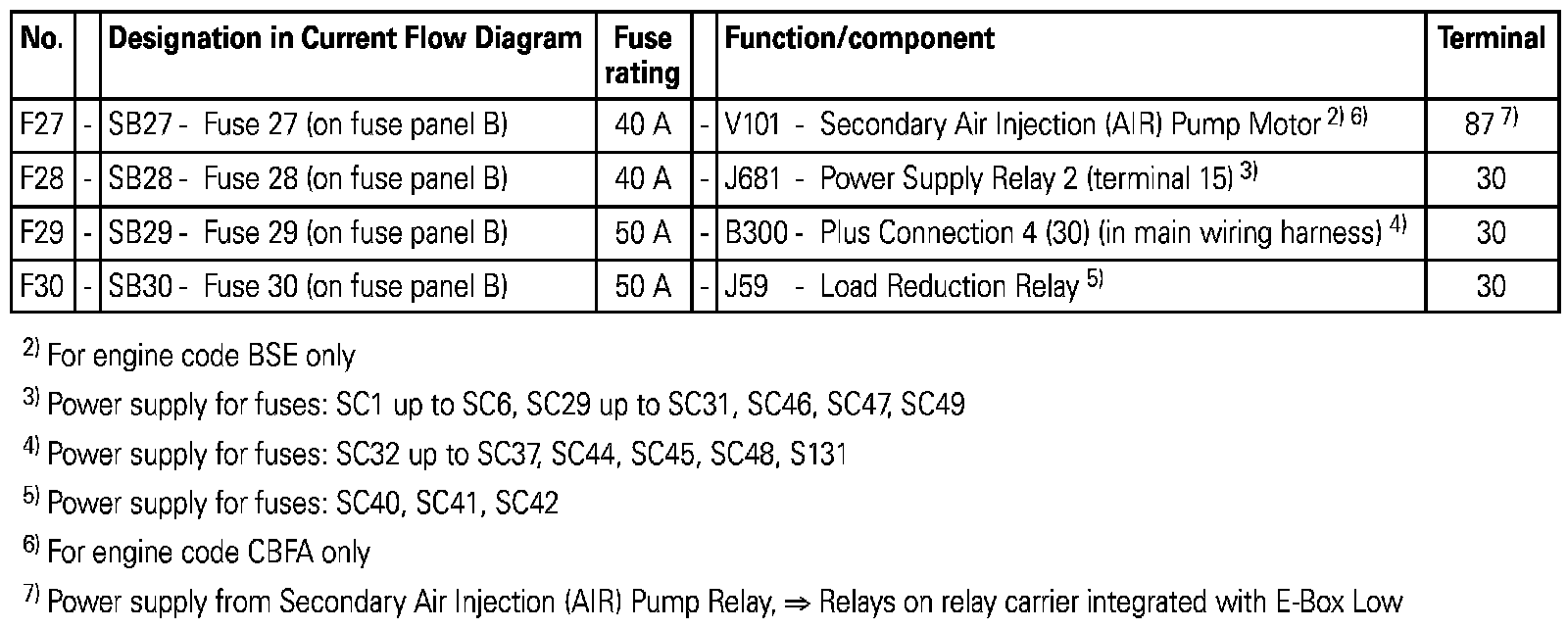

Fuses F27 To F30:
