Fuse Panel "A" Integrated With E-Box Low In Engine Compartment

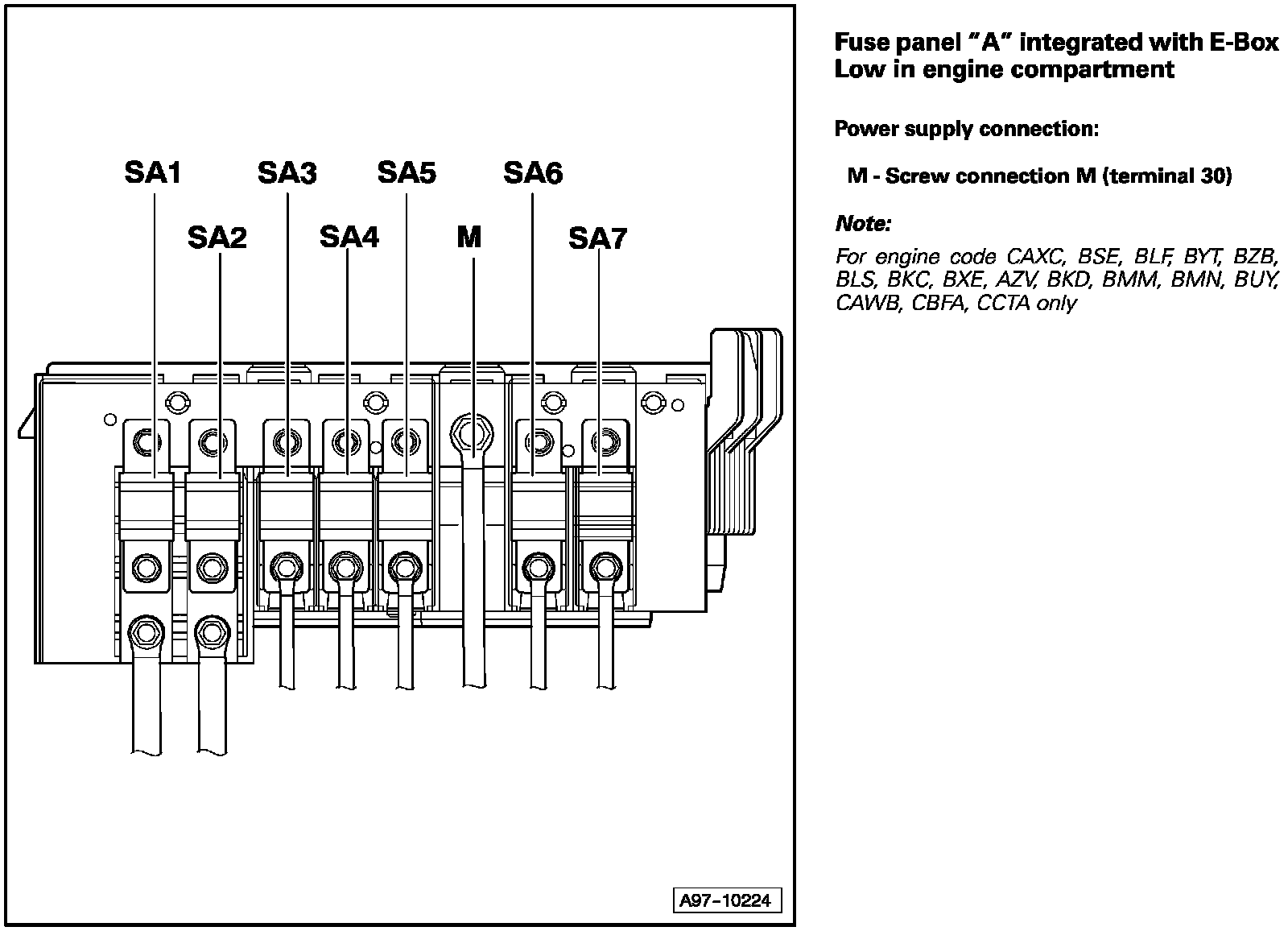

Fuse Panel "A" Integrated With E-Box Low In Engine Compartment:

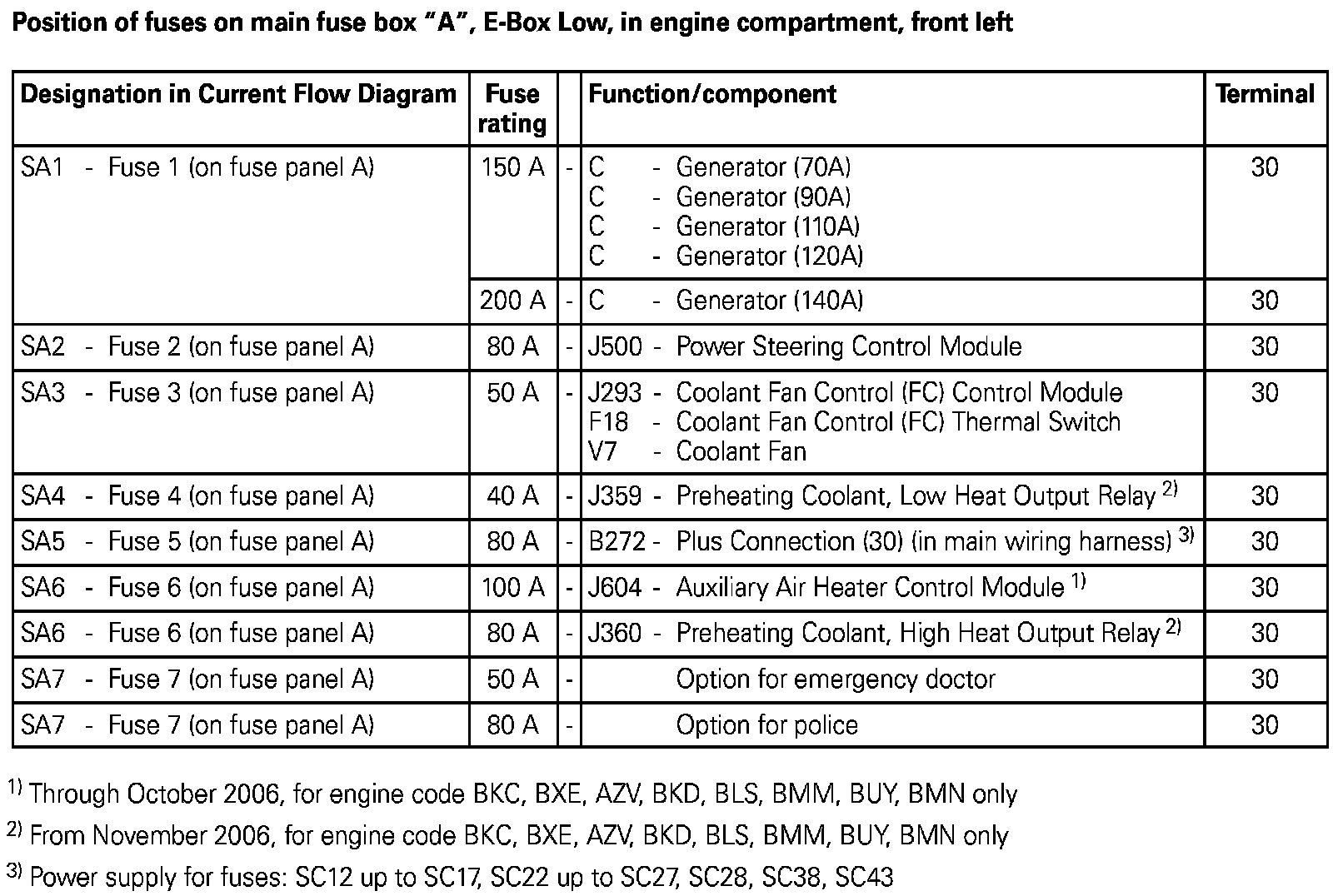

Position Of Fuses On Main Fuse Box "A", E-Box Low, In Engine Compartment, Front Left:
