Air Bypass Valve: Service and Repair

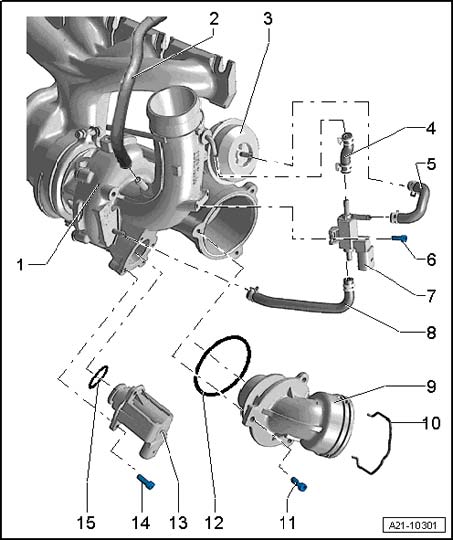

Wastegate Bypass Regulator And Recirculating Valve Overview







1 - Turbocharger
- Can only be replaced with exhaust manifold and pressure unit.
2 - To EVAP canister
3 - Turbocharger vacuum diaphragm
4 - Hose
5 - Hose
6 - Bolt
- 3 Nm
7 - Wastegate bypass regulator valve N75
8 - Hose
9 - Connection
10 - Securing clip
11 - Bolt
- 9 Nm
12 - Seal
- Replace
13 - Turbocharger Recirculating Valve N249
- Note installation position
14 - Bolt
- 7 Nm
15 - Seal
- Replace







Installation Position of Turbocharger Recirculating Valve N249
- Note installation location - arrows -.
