Instrument Cluster / Carrier: Application and ID






Cluster Layout



Warnings and illuminated lamp

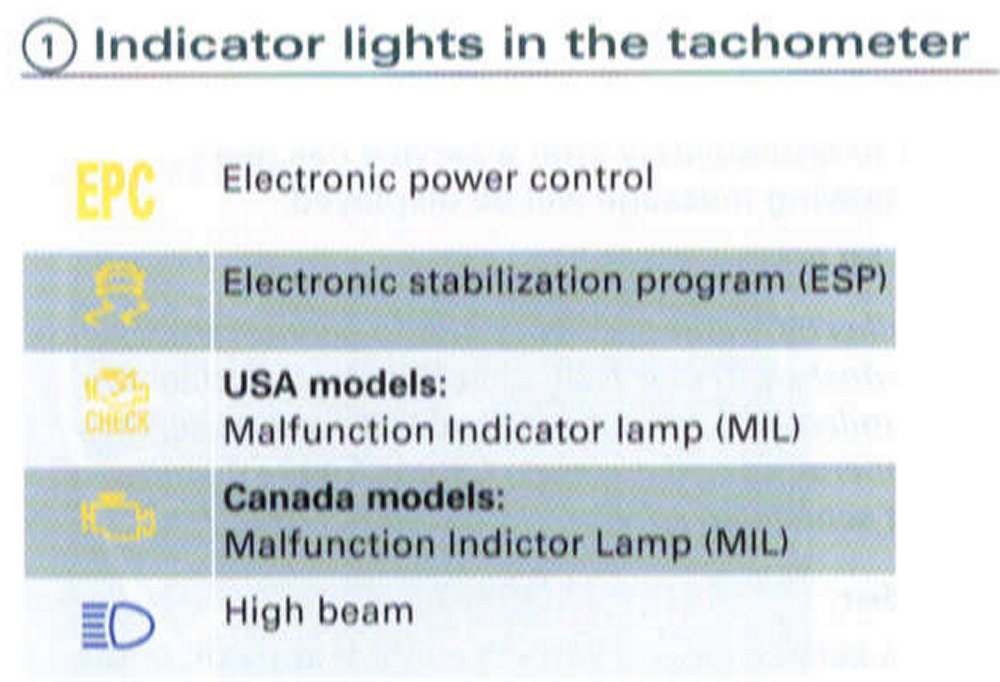

Indicator lights in the Tachometer

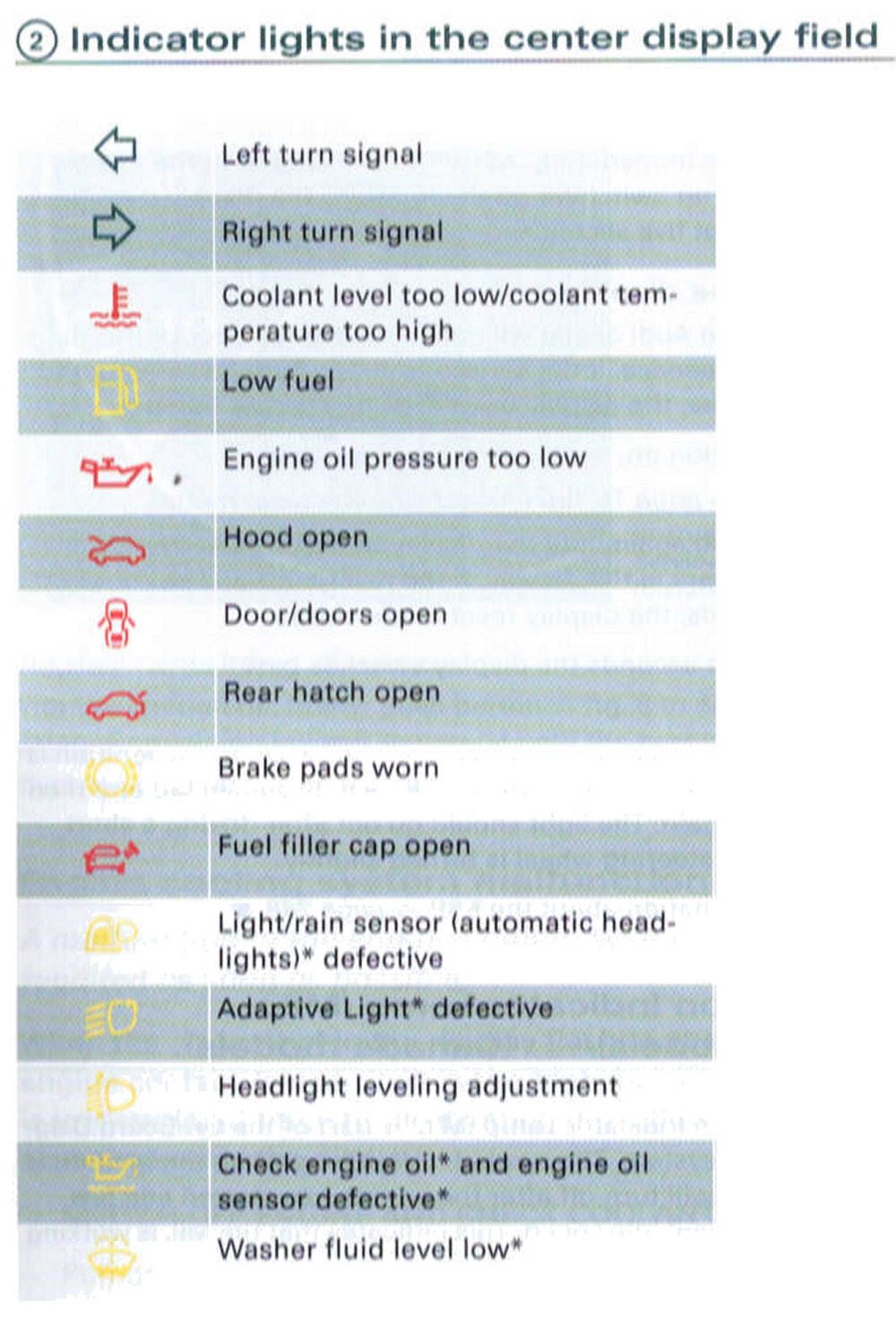

Indicator lights in the center dispaly field

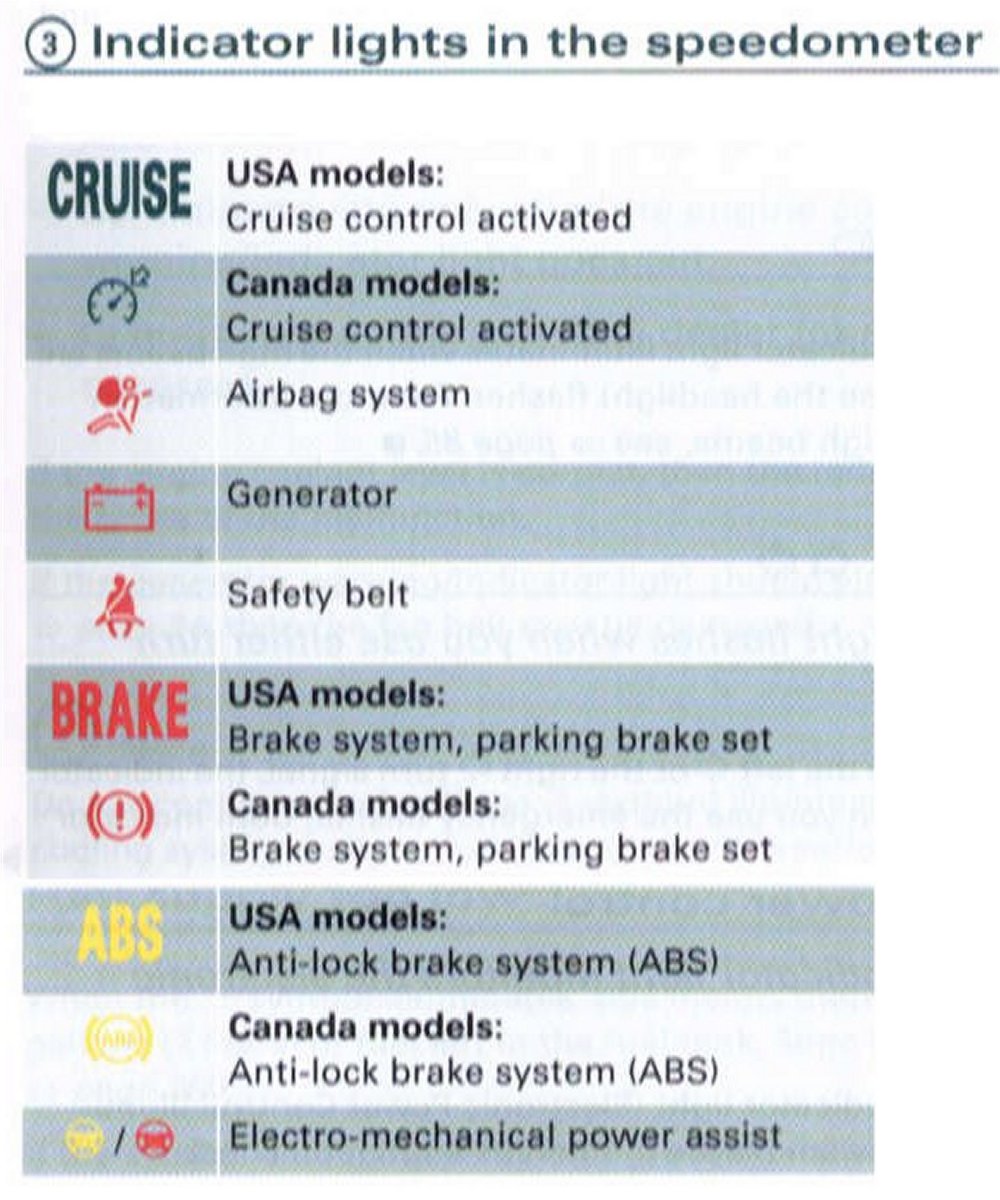

Indicator lights in the speedometer
