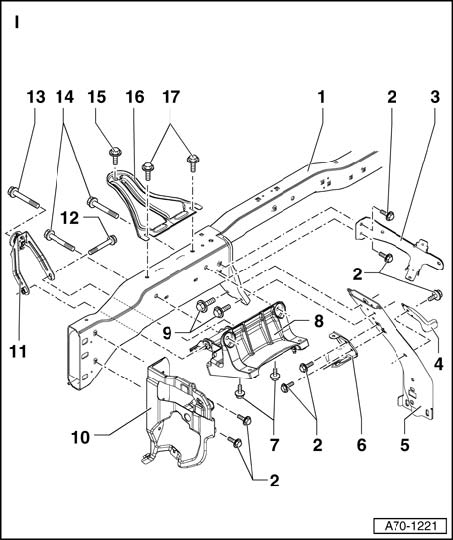

Center Tube, Version I, Component Overview

Center Tube, Version I, Component Overview







1 - Central tube
- Removing and Installing
- Versions for certain countries with drivers side knee bar, Removing and Installing

2 - Bolt - 9 Nm
- Qty. 9

3 - Left center section bracket
4 - Lower center section bracket
5 - Left tunnel support
6 - Left securing bracket
7 - Bolt - 20 Nm
- Qty. 2
- Replace after each disassembly

8 - Steering column mounting bracket
9 - Bolt - 9 Nm
- Qty. 2

10 - Left instrument panel bracket
11 - Lower brace
12 - Bolt - 9 Nm
13 - Bolt - 25 Nm
- Replace after each disassembly

14 - Bolt - 20 Nm
- Qty. 2
- Replace after each disassembly

15 - Bolt - 20 Nm
- Replace after each disassembly

16 - Bulkhead brace
17 - Bolt - 9 Nm
- Qty. 2
- Replace after each disassembly
