Engine Mount: Service and Repair

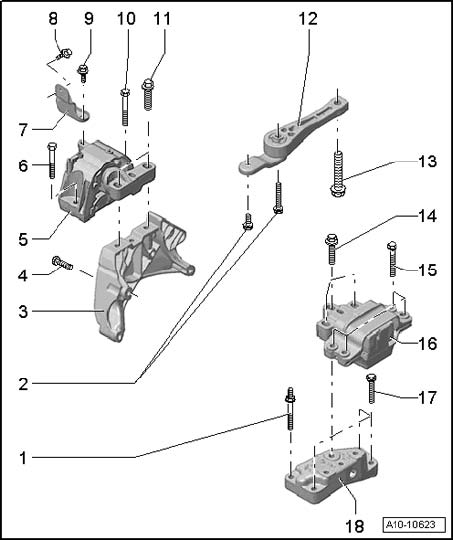

Powertrain Mount Overview





1 - Bolt
^ Transmission mount bracket to transmission

2 - Bolts
^ Pendulum support to transmission

3 - Engine mount bracket

4 - Bolt
^ Engine mount bracket to engine
^ Replace
^ 40 Nm + 180° turn further

5 - Engine mount

6 - Bolt
^ Engine mount to body
^ Replace
^ 40 Nm + 90° turn further

7 - Bracket

8 - Bolt
^ Bracket to body
^ Replace
^ 20 Nm + 90° turn further

9 - Bolt
^ Bracket to engine mount
^ Replace
^ 20 Nm + 90° turn further

10 - Bolt
^ Engine mount to body
^ Replace
^ 40 Nm + 90° turn further

11 - Bolt
^ Engine mount to engine mount bracket
^ Replace
^ 60 Nm + 90° turn further

12 - Pendulum support

13 - Bolt
^ Pendulum support to subframe

14 - Bolt
^ Transmission mount to transmission mount bracket

15 - Bolt
^ Transmission mount to body

16 - Transmission mount
^ Illustration shows version for DSG transmission.

17 - Bolt
^ Transmission mount bracket to transmission

18 - Transmission mount bracket
