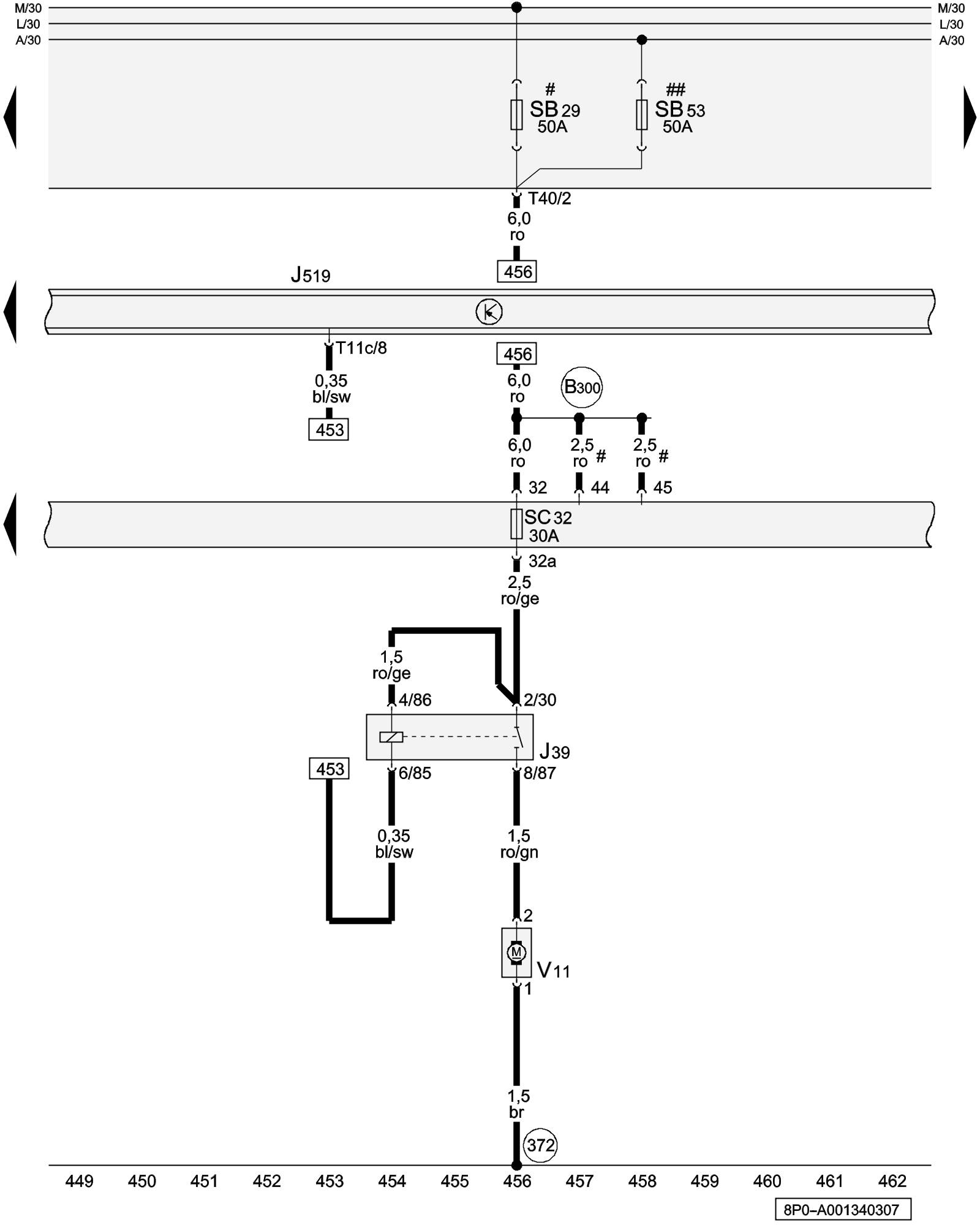

Diagram 1/34 (Tracks 449-462)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Headlamp Washer Pump, Headlamp Washer Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J39 - Headlamp Washer Relay Overview Of Relay

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

SB53 - Fuse 53 (on fuse panel B) Overview Of Fuses

SC32 - Fuse 32 (on fuse panel C) Overview Of Fuses

T11c - 11-Pin Connector, brown (Connector D)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

V11 - Headlamp Washer Pump

(372) - Ground Connection 7 (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
