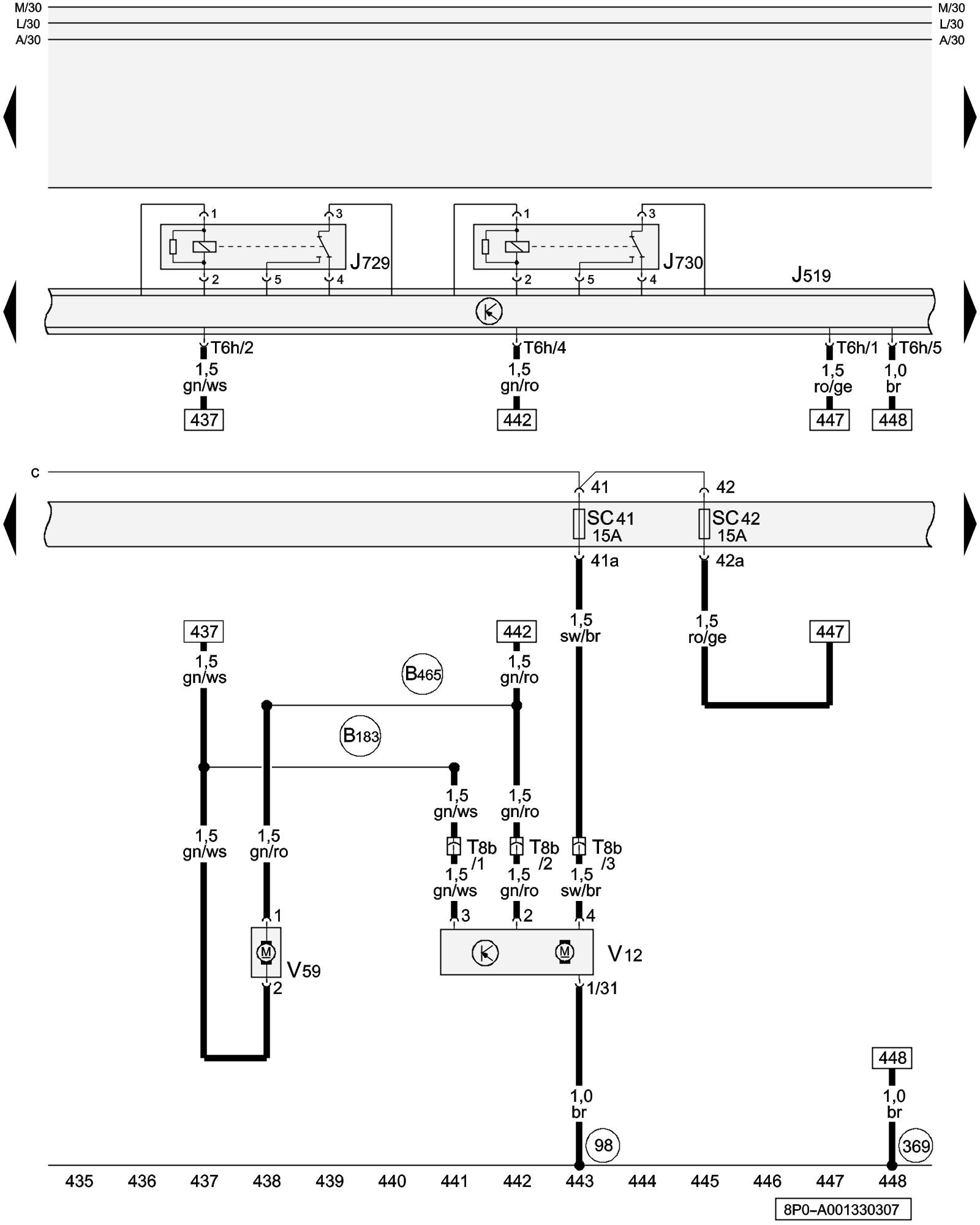

Diagram 1/33 (Tracks 435-448)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Windshield and Rear Window Washer Pump, Rear Window Wiper Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J729 - Dual Washer Pump Relay 1 Overview Of Relay

J730 - Dual Washer Pump Relay 2 Overview Of Relay

SC41 - Fuse 41 (on fuse panel C) Overview Of Fuses

SC42 - Fuse 42 (on fuse panel C) Overview Of Fuses

V12 - Rear Window Wiper Motor

V59 - Windshield and Rear Window Washer Pump

T6h - 6-Pin Connector, black (Connector J)

T8b - 8-Pin Connector, brown, on C-pillar, left

(98) - Ground Connection (in rear lid wiring harness)

(369) - Ground Connection 4 (in main wiring harness)

(B183) - Washer Pump Connection 1 (in interior wiring harness)

(B465) - Connection 1 (in main wiring harness)
