Diagram 1/31 (Tracks 407-420)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

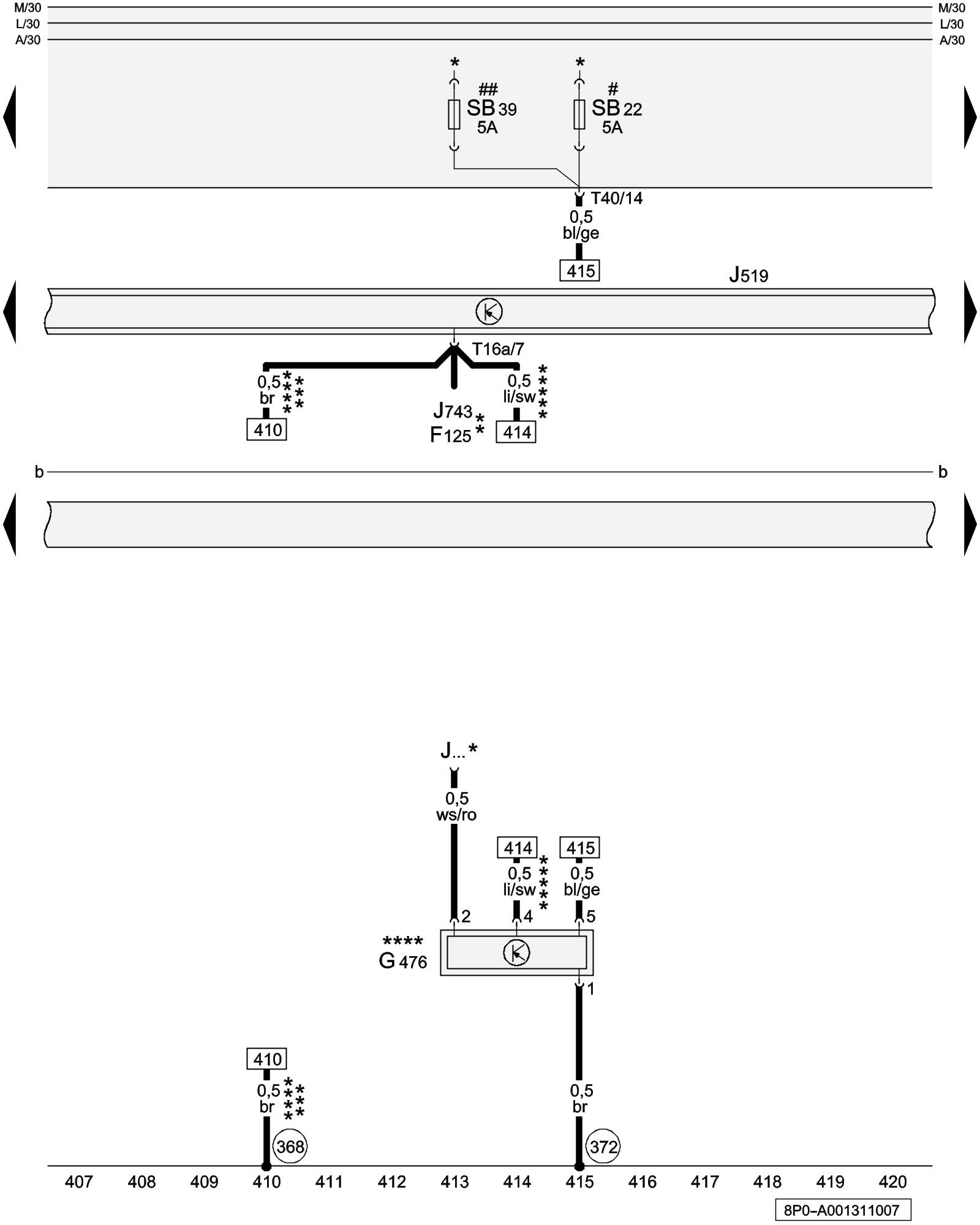

Clutch Position Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F125 - Multi-Function Transmission Range (TR) Switch

G476 - Clutch Position Sensor Direct Shift Gearbox 02E (DSG)

J... - Engine Control Modules (ECM)

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J743 - Direct Shift Gearbox (DSG) Mechatronic Control Modules in Front Part Of Vehicle

SB22 - Fuse 22 (on fuse panel B) Overview Of Fuses

SB39 - Fuse 39 (on fuse panel B) Overview Of Fuses

T16a - 16-Pin Connector, black (Connector E)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(368) - Ground Connection 3 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

* - => Applicable Wiring Diagram Engine

** - => Applicable Wiring Diagram Automatic Transmission

*** - Not applicable from May 2007

**** - Only models with manual transmission

***** - Applicable from May 2007

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
