Diagram 1/29 (Tracks 379-392)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

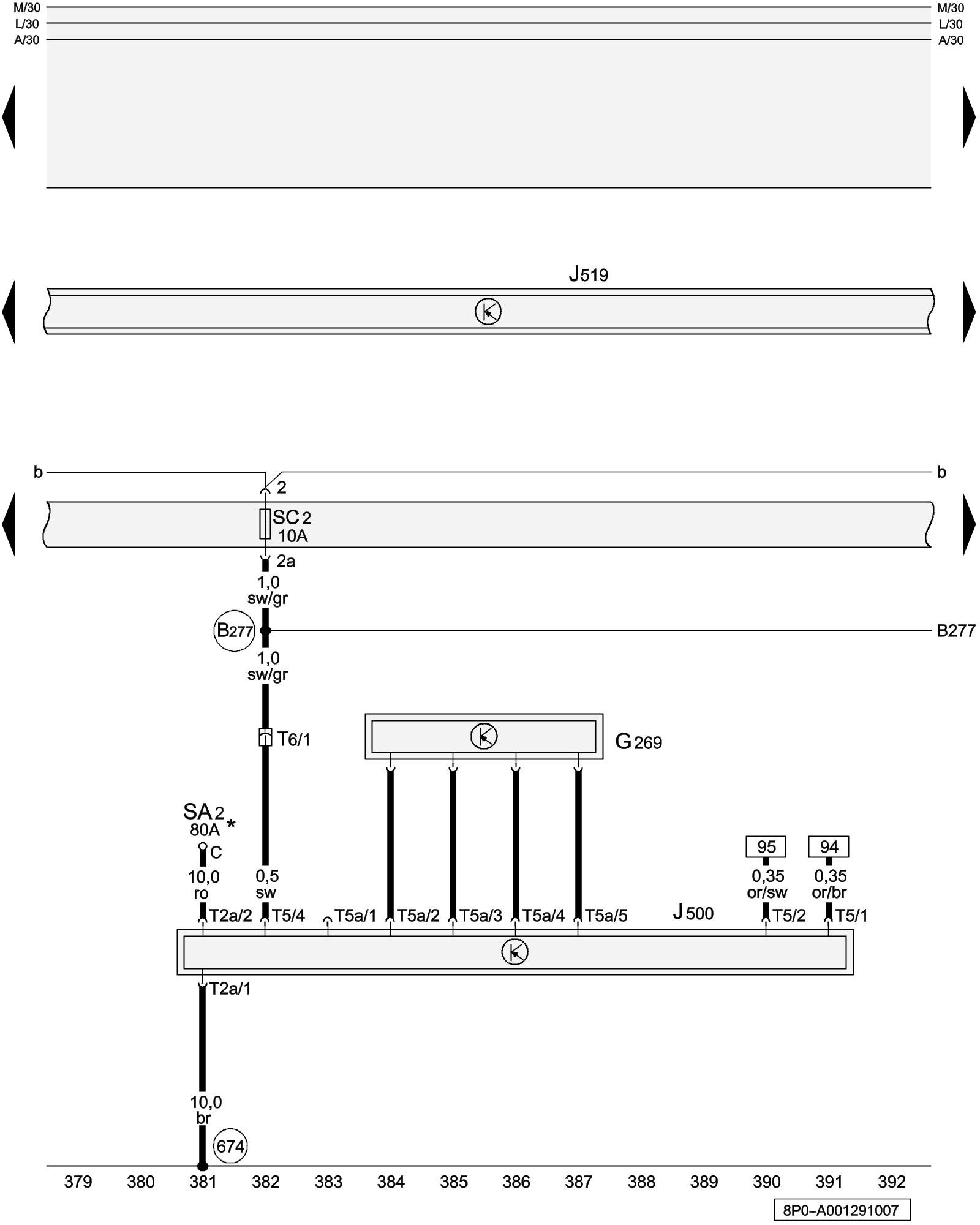

Steering Torque Sensor, Power Steering Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G269 - Steering Torque Sensor Locations

J500 - Power Steering Control Module Control Modules in Front Part Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

SA2 - Fuse 2 (on fuse panel A) Overview Of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

T2a - Double Connector, black (Connector A)

T5 - 5-Pin Connector, white (Connector C)

T5a - 5-Pin Connector, black (Connector B)

T6 - 6-Pin Connector, black, near left front long member

(674) - Ground Connection 4 (on left front long member) Overview Of Ground Connections in Front Part Of Vehicle

(B277) - Plus Connection 1 (15a) (in main wiring harness)

* - => Applicable Wiring Diagram models with battery in luggage compartment or engine compartment
