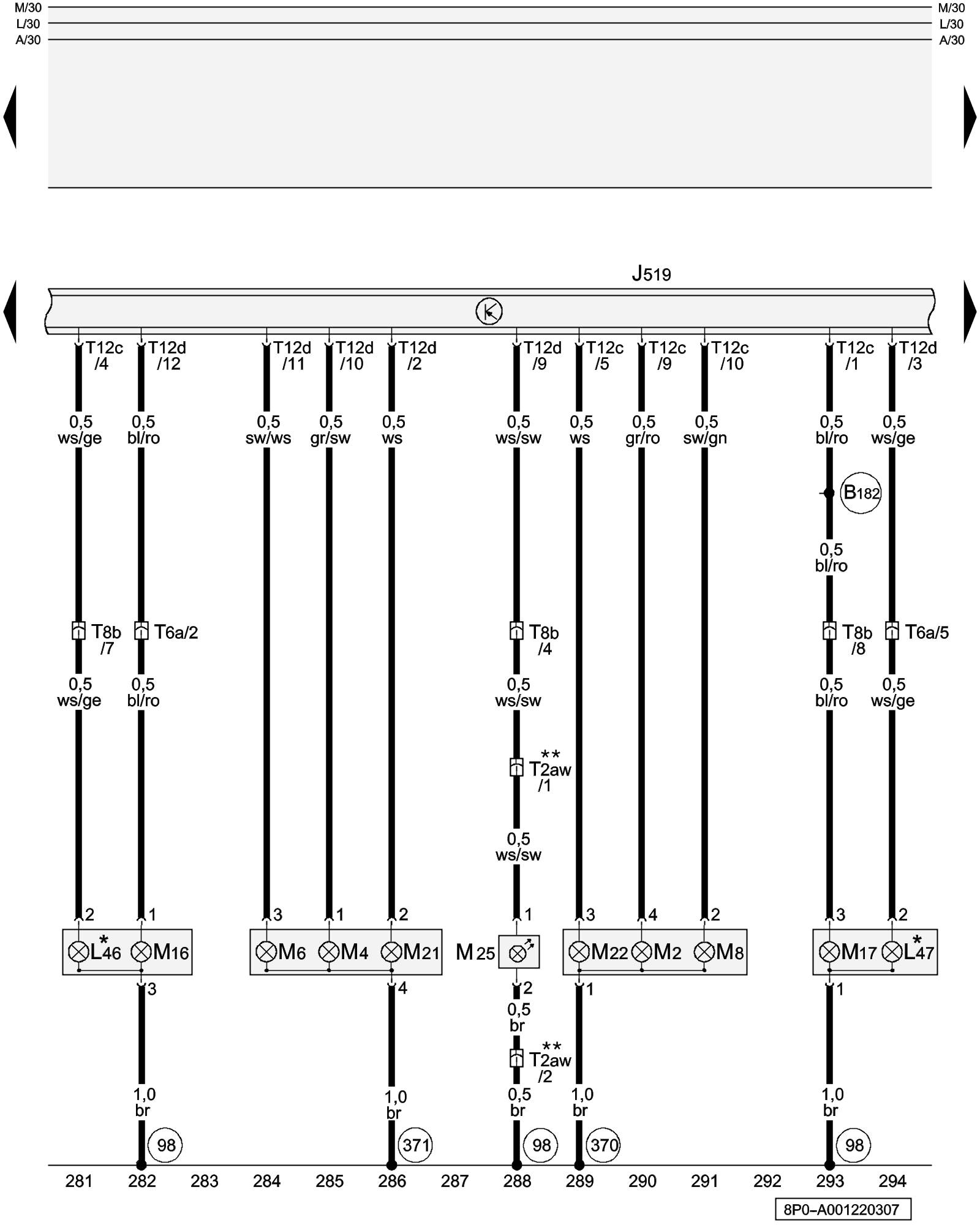

Diagram 1/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Rear Lid (5-door models), Taillamp, Turn Signal Lamp, Brake Lamp, Back-Up Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

L46 - Left Rear Fog Lamp

L47 - Right Rear Fog Lamp

M2 - Right Taillamp

M4 - Left Taillamp

M6 - Left Rear Turn Signal Lamp

M8 - Right Rear Turn Signal Lamp

M16 - Left Back-Up Lamp

M17 - Right Back-Up Lamp

M21 - Left Brake/Taillamp

M22 - Right Brake/Taillamp

M25 - High-mount Brake Light

T2aw - Double Connector, black, in rear lid, right

T6a - 6-Pin Connector, black, on C-pillar, left

T8b - 8-Pin Connector, brown, on C-pillar, left

T12c - 12-Pin Connector, black (Connector B)

T12d - 12-Pin Connector, brown (Connector C)

(98) - Ground Connection (in rear lid wiring harness)

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(B182) - Connection (RF) (in passenger compartment wiring harness)

* - Only models with rear fog lamp

** - Only models with S line equipment
