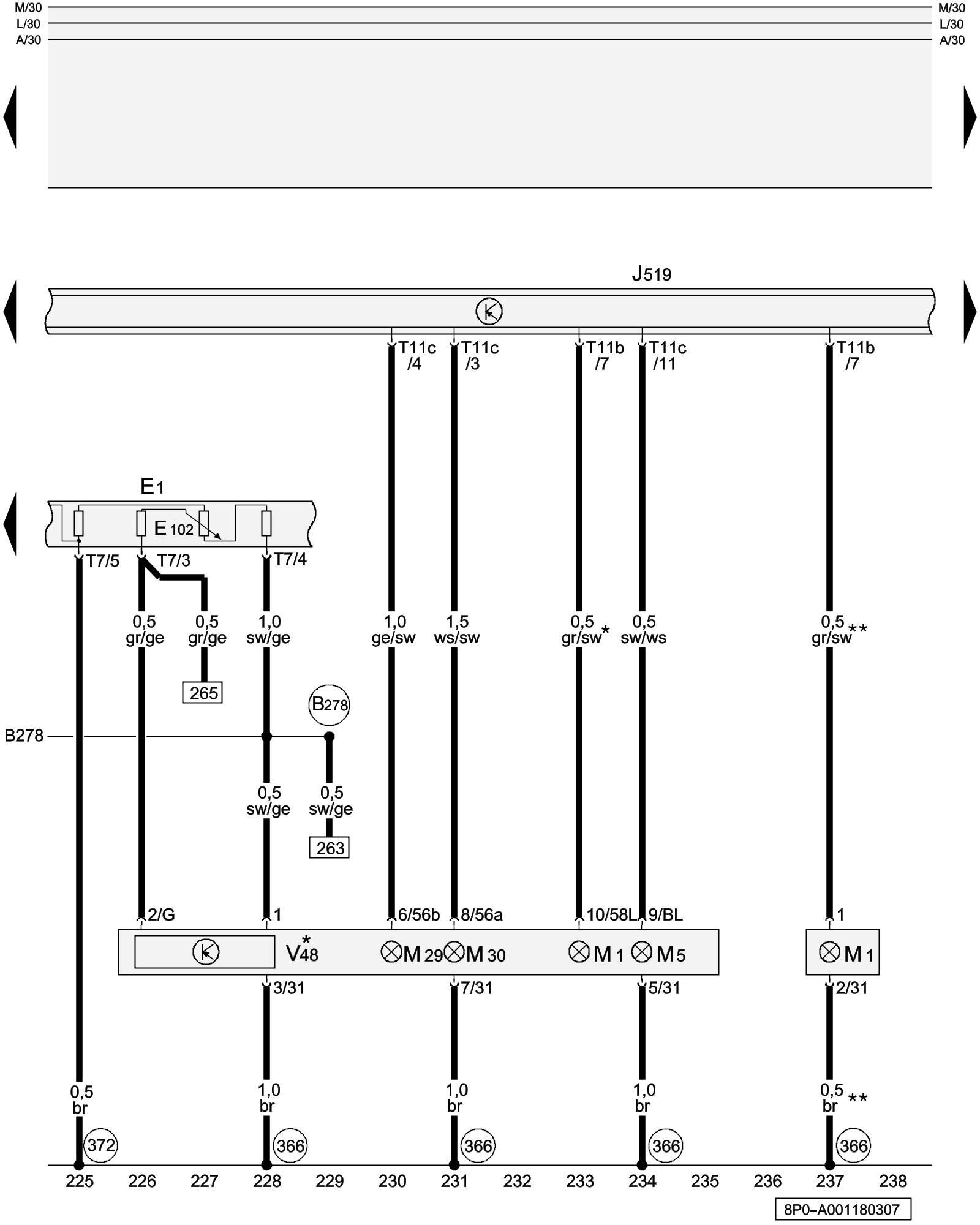

Diagram 1/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Headlamp Adjuster, Left Headlamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

E102 - Headlamp Adjuster

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

M1 - Left Parking Lamp

M5 - Left Front Turn Signal Lamp

M29 - Left Low Beam Headlamp

M30 - Left High Beam Headlamp

T7 - 7-Pin Connector, black (Connector B)

T11b - 11-Pin Connector, black (Connector A)

T11c - 11-Pin Connector, brown (Connector D)

V48 - Left Headlamp Beam Adjustment Motor Automatic Headlamp Vertical Aim Control Overview

(366) - Ground Connection 1 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

* - Only models with headlamp beam adjustment motor

** - Not for models with headlamp beam adjustment motor
