Diagram 58/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

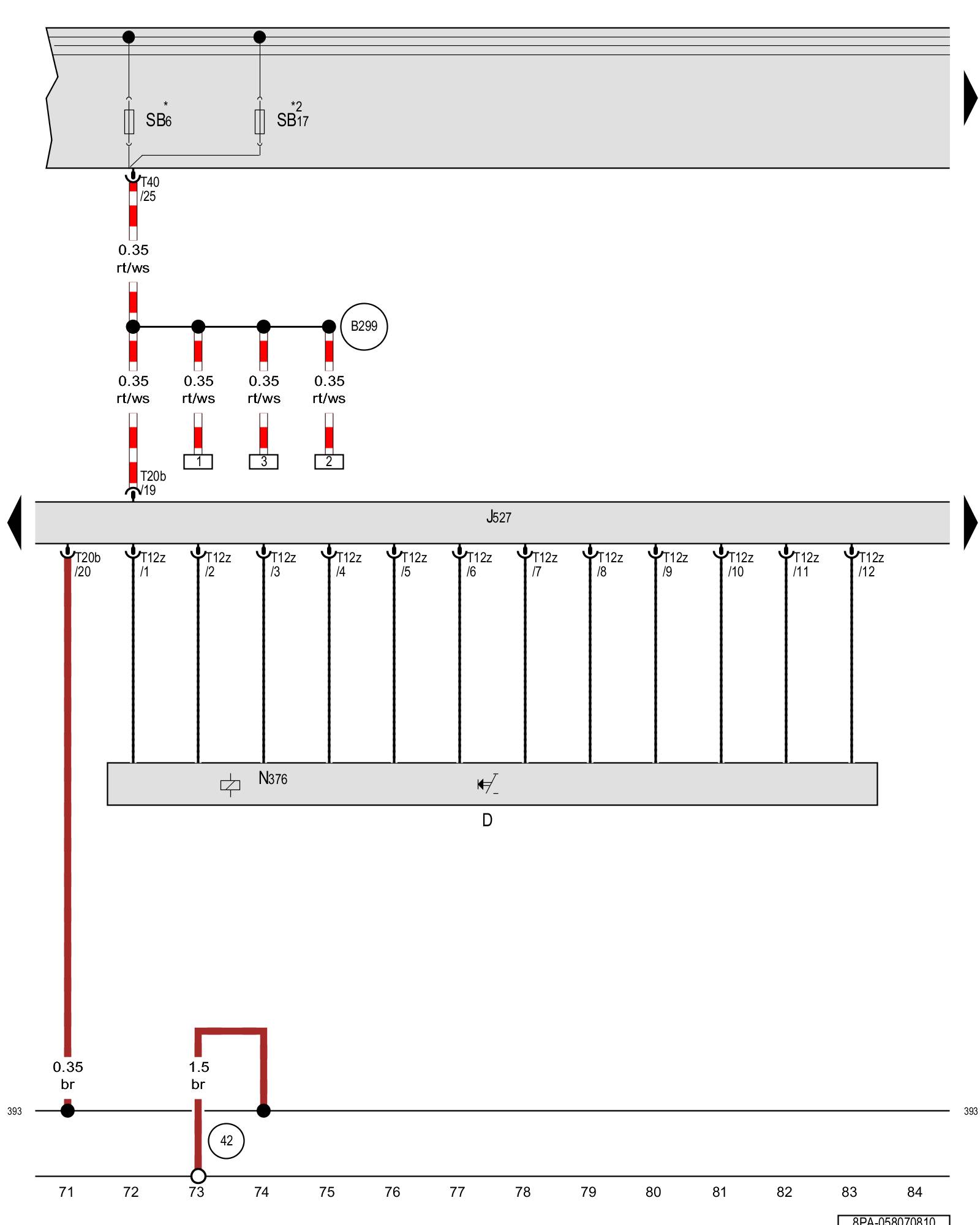

Ignition/starter switch, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch Locations

J527 - Steering column electronics control module Control Modules in Interior Of Vehicle

N376 - Ignition switch key lock solenoid Locations

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB17 - Fuse 17 (on fuse panel B) Overview Of Fuses

T12z - 12-pin connector

T20b - 20-pin connector

T40 - 40-pin connector

(42) - Ground connection near steering column Overview Of Ground Connections in Interior Of Vehicle

(393) - Ground connection 28 (in main wiring harness)

(B299) - Positive connection 3 (30) (in main wiring harness)

* - E-Box low

*2 - E-Box high

Previous Diagram 58/6 (Tracks 57-70)

Next Diagram 58/8 (Tracks 85-98)
