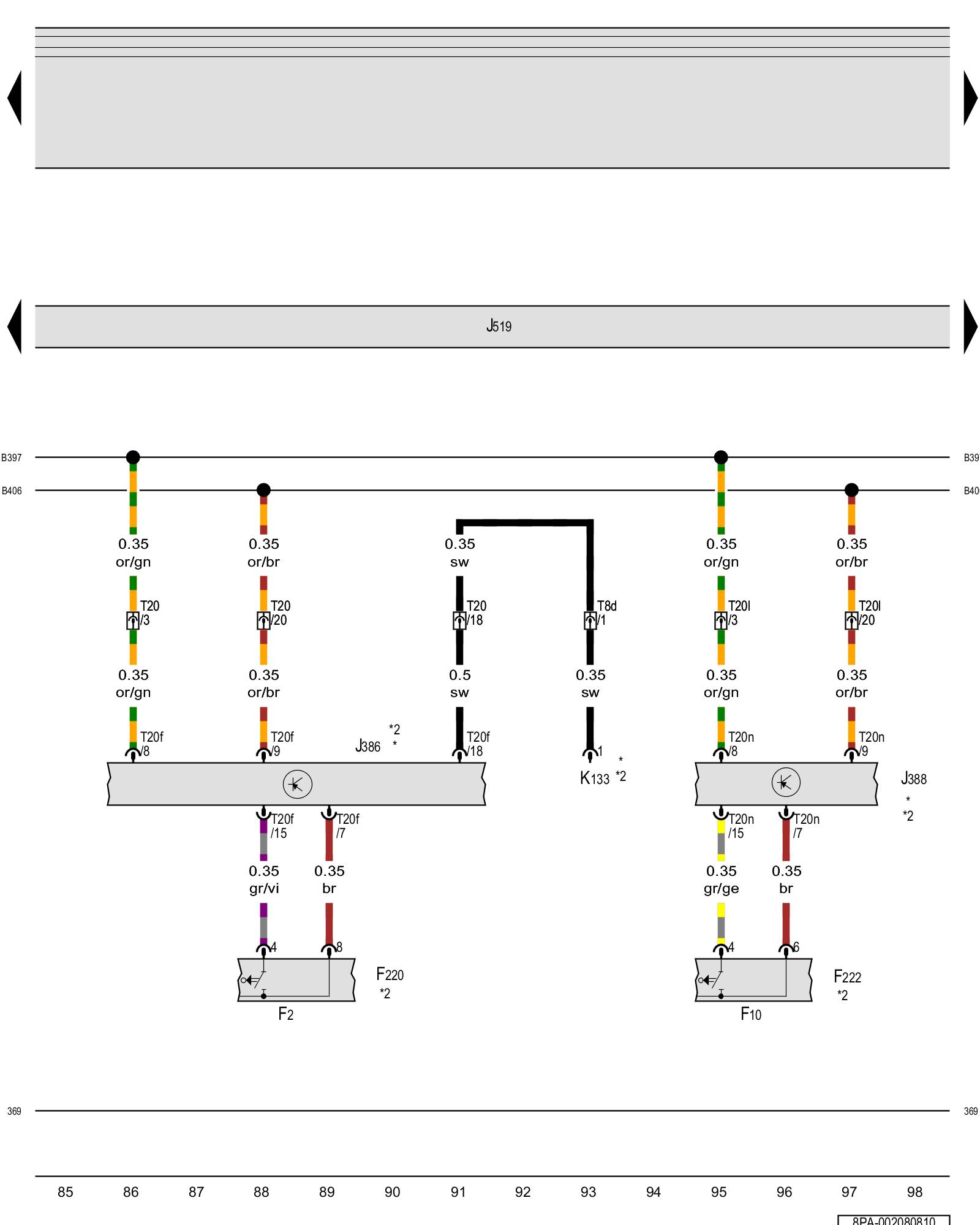

Diagram 2/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Driver central locking lock unit, Left rear central locking lock unit, Driver door control module, Left rear door control module, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F2 - Driver door contact switch Door Locks

F10 - Left rear door contact switch Door Locks

F220 - Driver central locking lock unit Door Locks

F222 - Left rear central locking lock unit Door Locks

J386 - Driver door control module Control Modules in Interior Of Vehicle

J388 - Left rear door control module Control Modules in Interior Of Vehicle

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

K133 - Central locking -SAFE- indicator lamp

T8d - 8-pin connector, behind the center console

T20 - 20-pin connector, on the left A-pillar

T20f - 20-pin connector

T20l - 20-pin connector, on the left B-pillar

T20n - 20-pin connector

(369) - Ground connection 4 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Refer to applicable convenience system wiring diagram

*2 - Through April 2007
