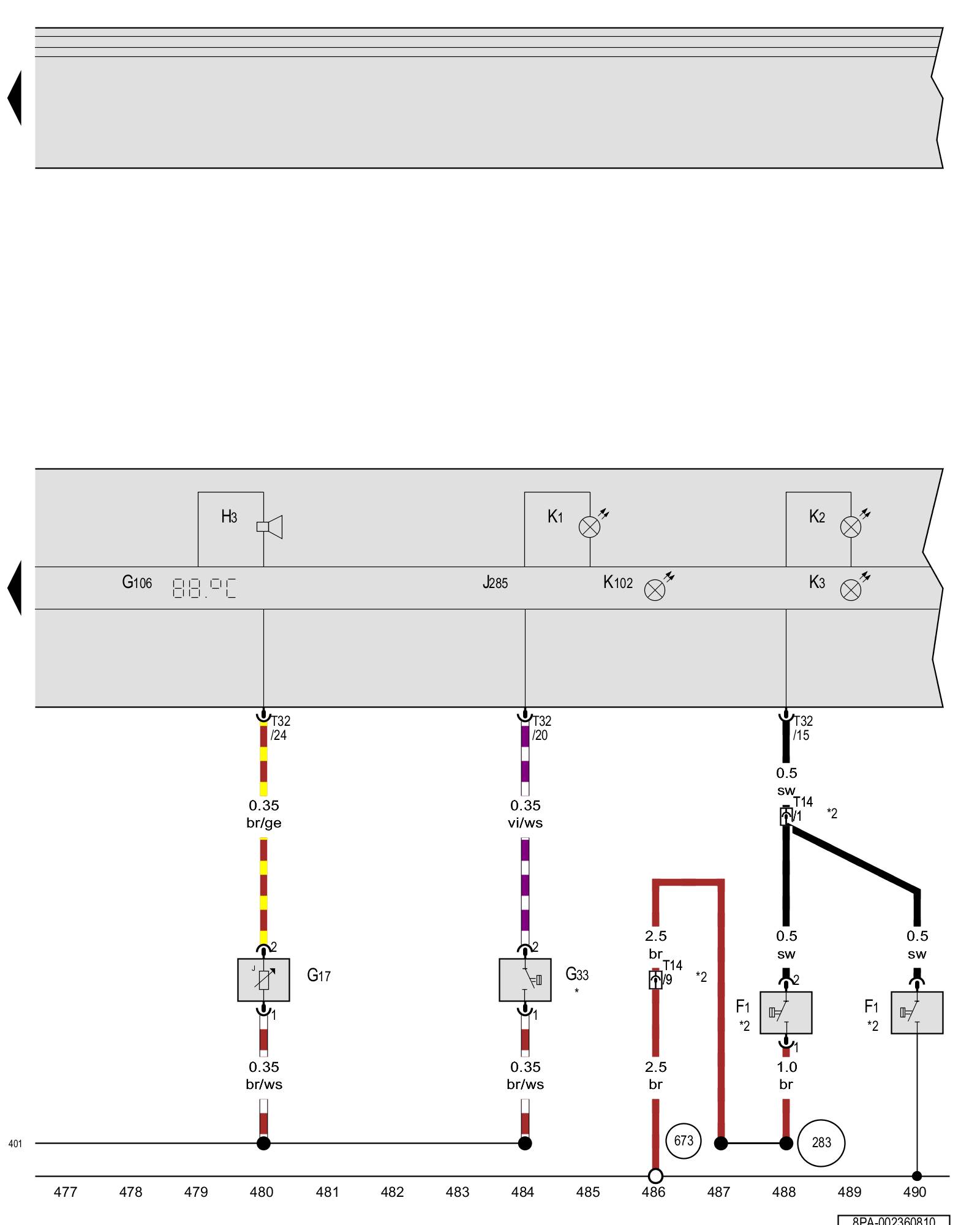

Diagram 2/36 (Tracks 477-490)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Outside air temperature sensor, Windshield washer fluid level sensor, Instrument cluster control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F1 - Oil pressure switch Locations

G17 - Outside air temperature sensor Components Outside Pass Compartment - Group 1

G33 - Windshield washer fluid level sensor

G106 - Outside air temperature display Components Inside Pass Compartment - Group 1

H3 - Warning buzzer and tone

J285 - Instrument cluster control module Control Modules in Interior Of Vehicle

K1 - High beam indicator lamp

K2 - Generator indicator lamp

K3 - Oil pressure indicator lamp

K102 - Rear lid -closed- indicator lamp

T14 - 14-pin connector

T32 - 32-pin connector

(283) - Ground connection 2 (in engine wiring harness)

(401) - Sensor ground connection (in interior wiring harness)

(673) - Ground connection 3 on left front longitudinal member Overview Of Ground Connections in Front Part Of Vehicle

* - Only for vehicles with washer fluid level sensor

*2 - Refer to applicable engine wiring diagram
