Diagram 2/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

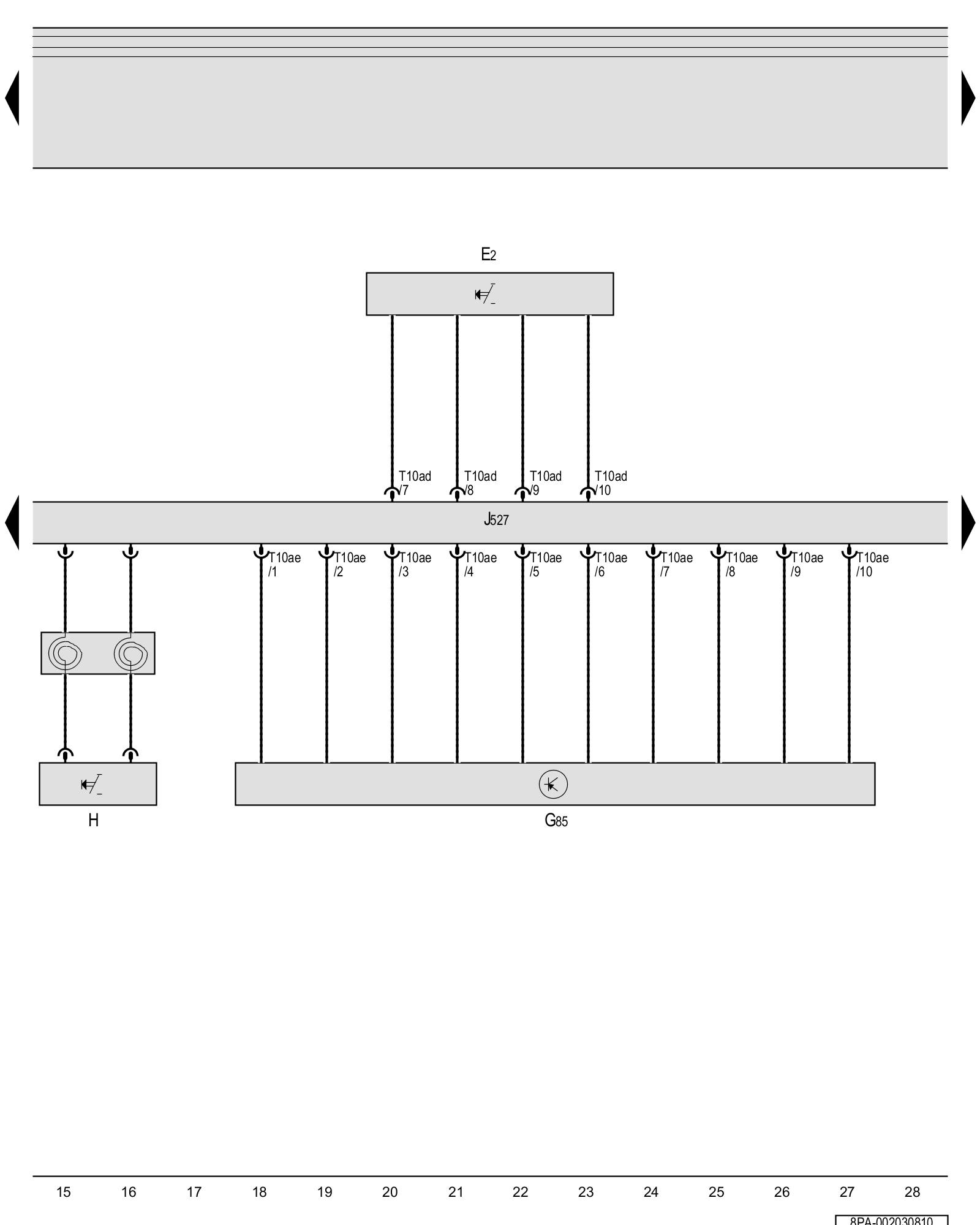

Turn signal switch, Steering angle sensor, Signal horn activation, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E2 - Turn signal switch Locations

G85 - Steering angle sensor Locations

H - Signal horn activation

J527 - Steering column electronics control module Control Modules in Interior Of Vehicle

T10ad - 10-pin connector

T10ae - 10-pin connector

Previous Diagram 2/2 (Tracks 1-14)

Next Diagram 2/4 (Tracks 29-42)
