Diagram 2/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

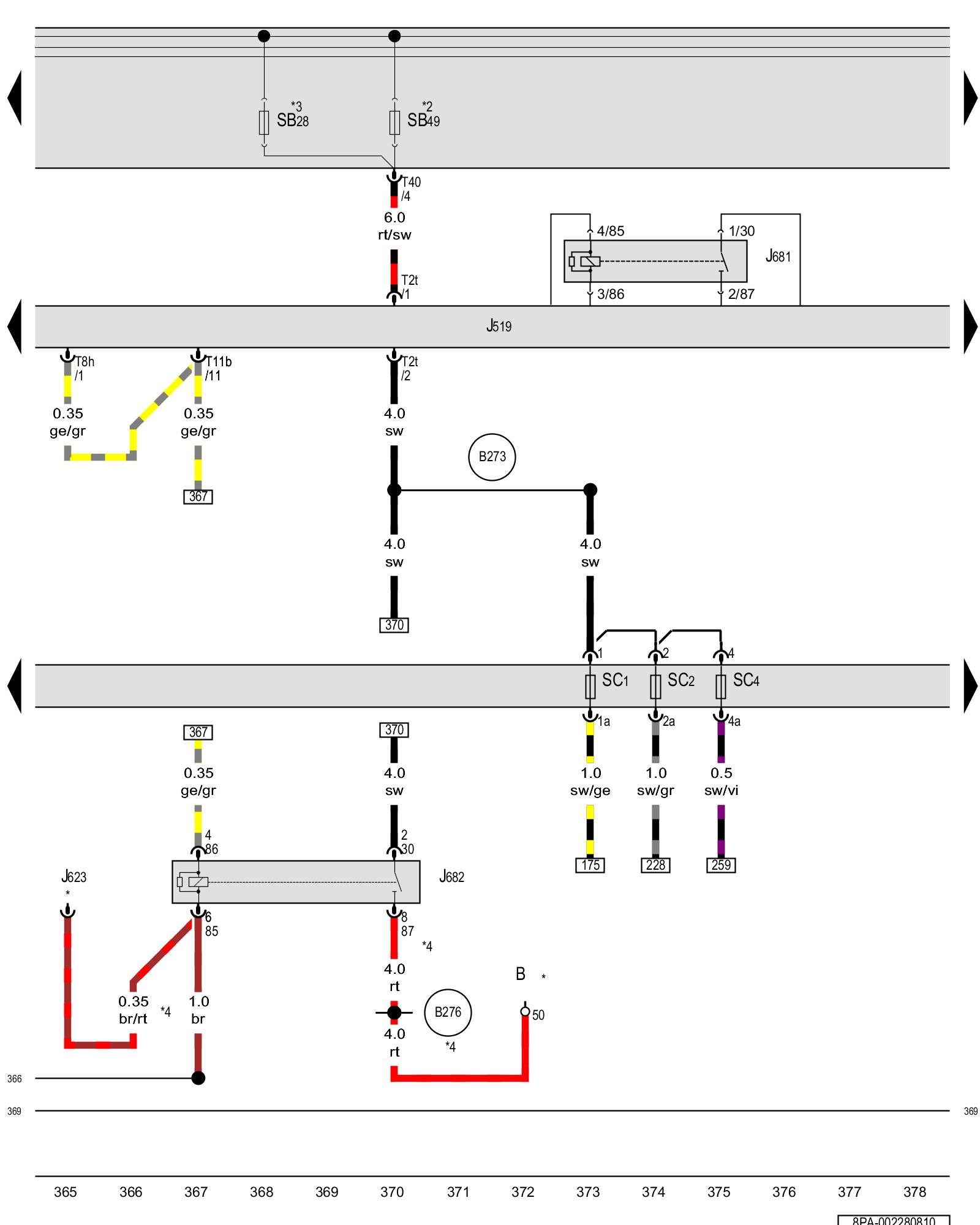

Vehicle electrical system control module, Terminal 15 power supply relay 2, Terminal 50 power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

J681 - Terminal 15 power supply relay 2 Overview Of Relay

J682 - Terminal 50 power supply relay Overview Of Relay

SC1 - Fuse 1 (on fuse panel C) Overview Of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview Of Fuses

T1 - Single connector

T2t - Double connector

T8h - 8-pin connector

T11b - 11-pin connector

T40 - 40-pin connector

(366) - Ground connection 1 (in main wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

(B276) - Positive connection (50) (in main wiring harness)

* - Refer to applicable engine wiring diagram

*2 - E-Box high

*3 - E-Box low

*4 - only for vehicles with engine code CBFA

Previous Diagram 2/27 (Tracks 351-364)

Next Diagram 2/29 (Tracks 379-392)
