Diagram 2/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


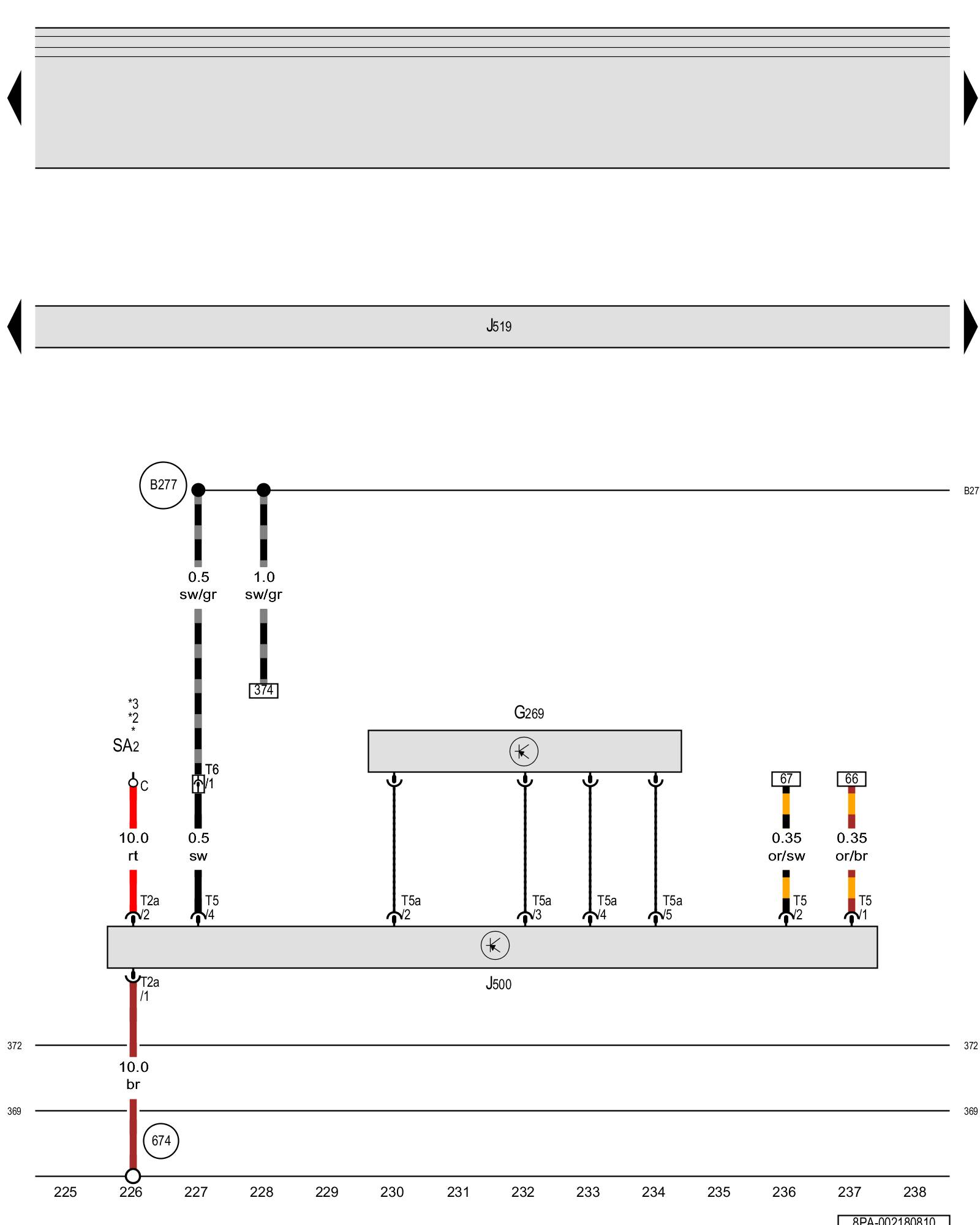

Steering torque sensor, Power steering control module, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G269 - Steering torque sensor Locations

J500 - Power steering control module Control Modules in Front Part Of Vehicle

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

SA2 - Fuse 2 (on fuse panel A) Overview Of Fuses

T2a - Double connector

T5 - 5-pin connector

T5a - 5-pin connector

T6 - 6-pin connector, near the left front longitudinal member

(369) - Ground connection 4 (in main wiring harness)

(372) - Ground connection 7 (in main wiring harness)

(674) - Ground connection 4 on left front longitudinal member Overview Of Ground Connections in Front Part Of Vehicle

(B277) - Positive connection 1 (15a) (in main wiring harness)

* - Only for vehicles with a battery in the engine compartment

*2 - Only for vehicles with a battery in the luggage compartment

*3 - Refer to applicable wiring diagram

Previous Diagram 2/17 (Tracks 211-224)

Next Diagram 2/19 (Tracks 239-252)
