Diagram 49/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

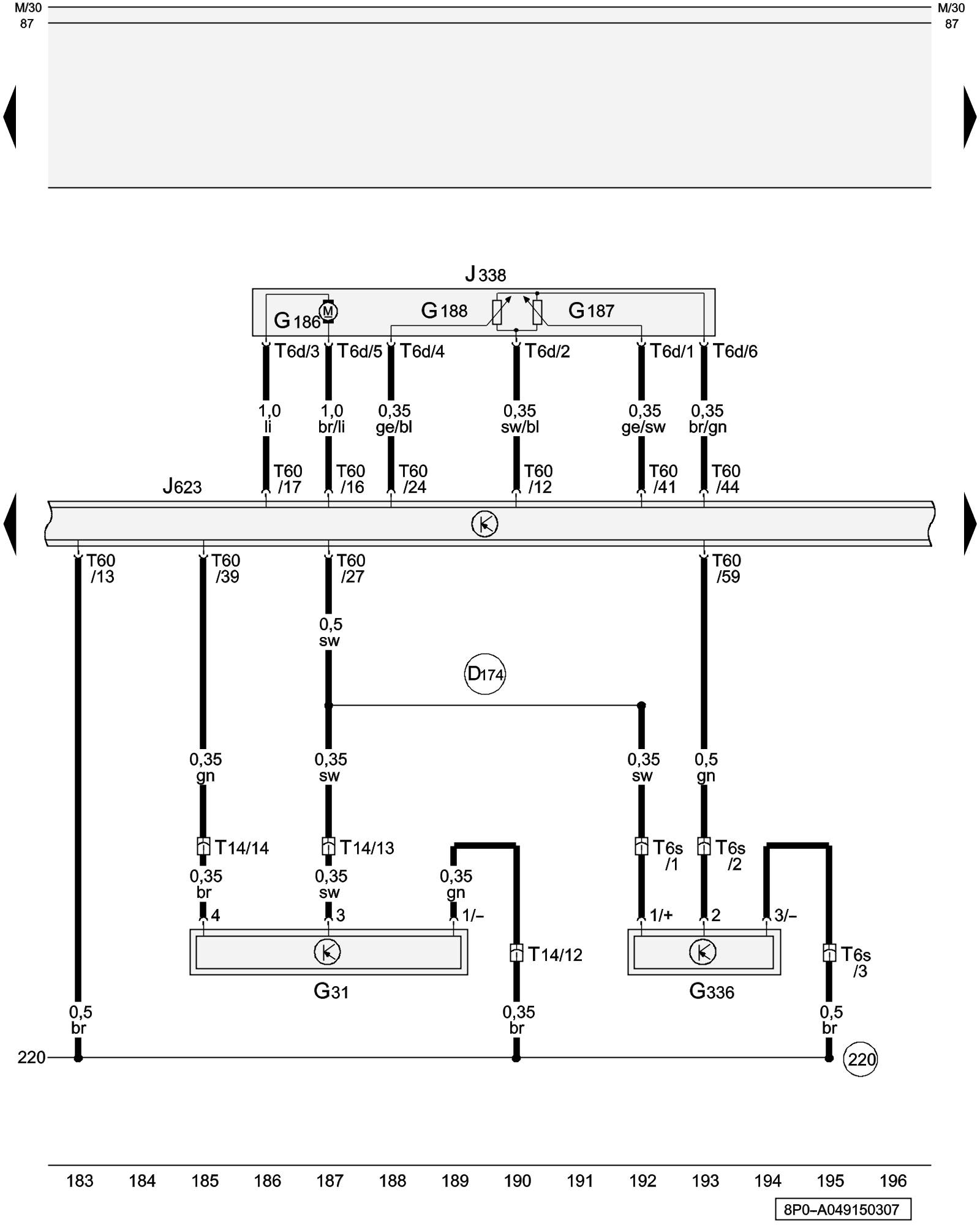

Throttle Valve Control Module, Charge Air Pressure Sensor, Intake Manifold Runner Position Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations [1][2]Air Temperature Sensor ( Ambient / Intake )

G186 - Throttle Drive (for Electronic Power Control (EPC)

G187 - Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)

G188 - Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)

G336 - Intake Manifold Runner Position Sensor Locations [1][2]Diagrams

J338 - Throttle Valve Control Module Locations [1][2]Diagrams

J623 - Engine Control Module (ECM) Control Modules in Front Part Of Vehicle

T6d - 6-Pin Connector, black, near throttle valve control module

T6s - 6-Pin Connector, black, behind intake manifold

T14 - 14-Pin Connector, black, near left front long member

T60 - 60-Pin Connector, black (Connector A)

(220) - Sensor Ground Connection (in engine wiring harness)

(D174) - Connection 2 (5V) (in engine pre-wiring wiring harness)
