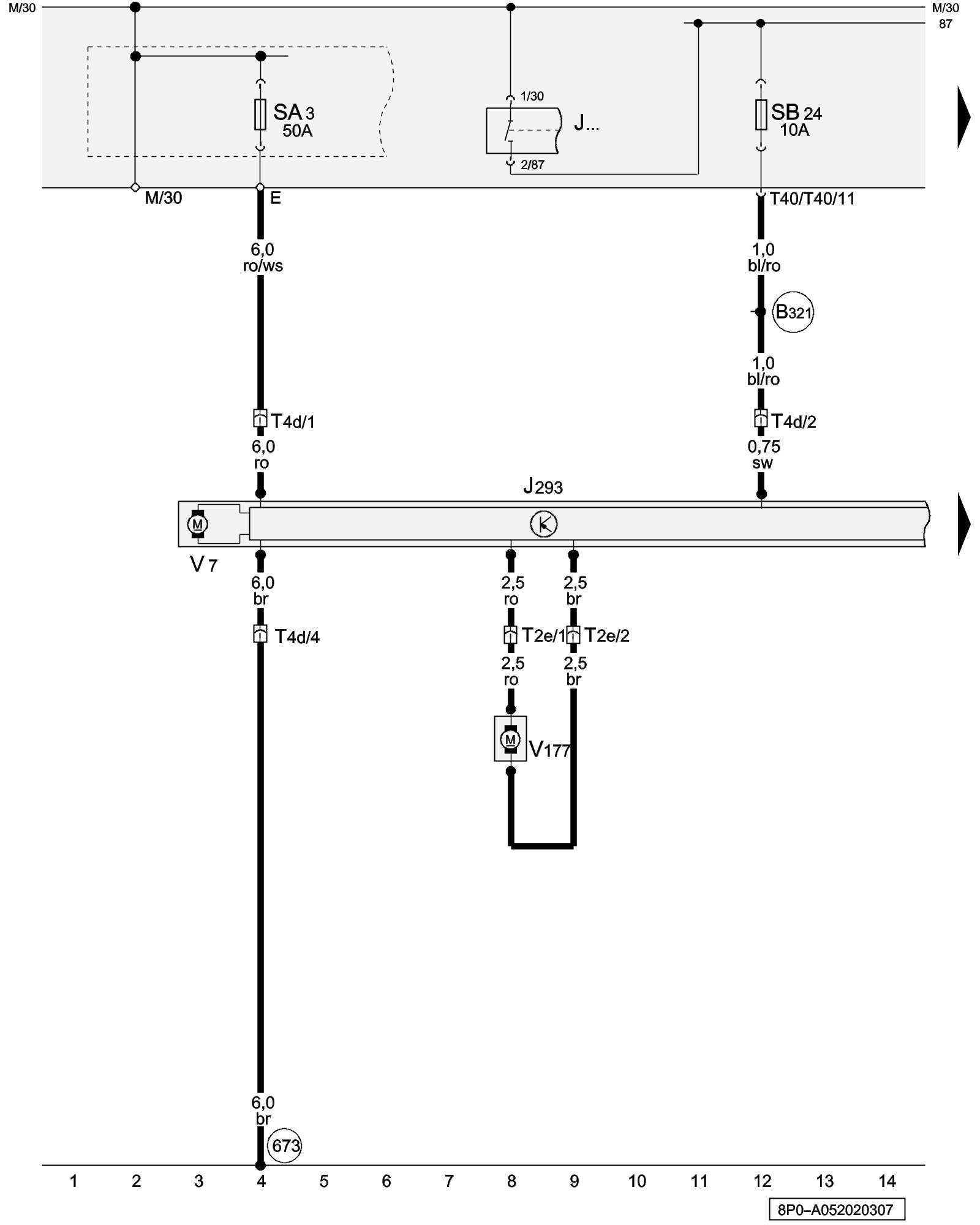

Diagram 52/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Coolant Fan, Coolant Fan 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J... - Engine Control Relay

J293 - Coolant Fan Control (FC) Control Module Control Modules in Front Part Of Vehicle

SA3 - Fuse 3 (on fuse panel A) Overview Of Fuses

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses

T2e - Double Connector, black, on coolant fan control (FC) (front end)

T4d - 4-Pin Connector, black, on coolant fan control (FC) (front end)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

V7 - Coolant Fan Locations

V177 - Coolant Fan 2 Locations

(673) - Ground Connection 3 (on left front long member) Overview Of Ground Connections in Front Part Of Vehicle

(B321) - Plus Connection 7 (30a) (in main wiring harness)
