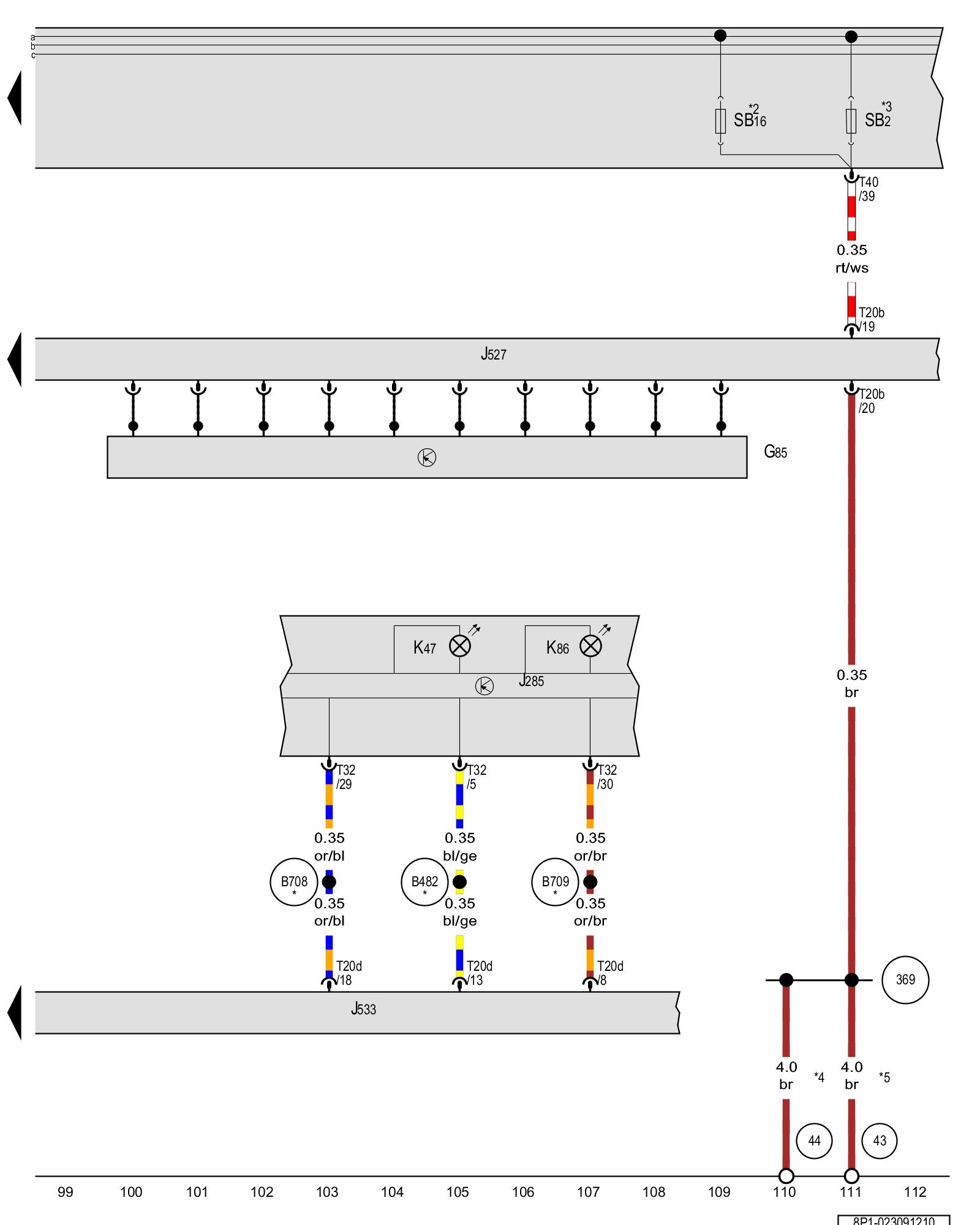

Diagram 23/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Steering angle sensor, Instrument cluster control module, Steering column electronics control module, Data bus on board diagnostic interface, ABS indicator lamp, Traction control indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G85 - Steering angle sensor Locations

J285 - Instrument cluster control module Control Modules in Interior Of Vehicle

J527 - Steering column electronics control module Control Modules in Interior Of Vehicle

J533 - Data bus on board diagnostic interface Control Modules in Interior Of Vehicle

K47 - ABS indicator lamp

K86 - Traction control indicator lamp

SB2 - Fuse 2 (on fuse panel B) Overview Of Fuses

SB16 - Fuse 16 (on fuse panel B) Overview Of Fuses

T20b - 20-pin connector

T20d - 20-pin connector

T32 - 32-pin connector

T40 - 40-pin connector

(43) - Ground connection on A-pillar, lower right Overview Of Ground Connections in Interior Of Vehicle

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(369) - Ground connection 4 (in main wiring harness)

(B482) - Connection 18 (in main wiring harness)

(B708) - Instrument cluster CAN bus high connection 1 (in main wiring harness)

(B709) - Instrument cluster CAN bus low connection 1 (in main wiring harness)

* - Omitted as a running change

*2 - E-Box high

*3 - E-Box low

*4 - Only for left-hand drive vehicles

*5 - Only for right-hand drive vehicles
