Diagram 23/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


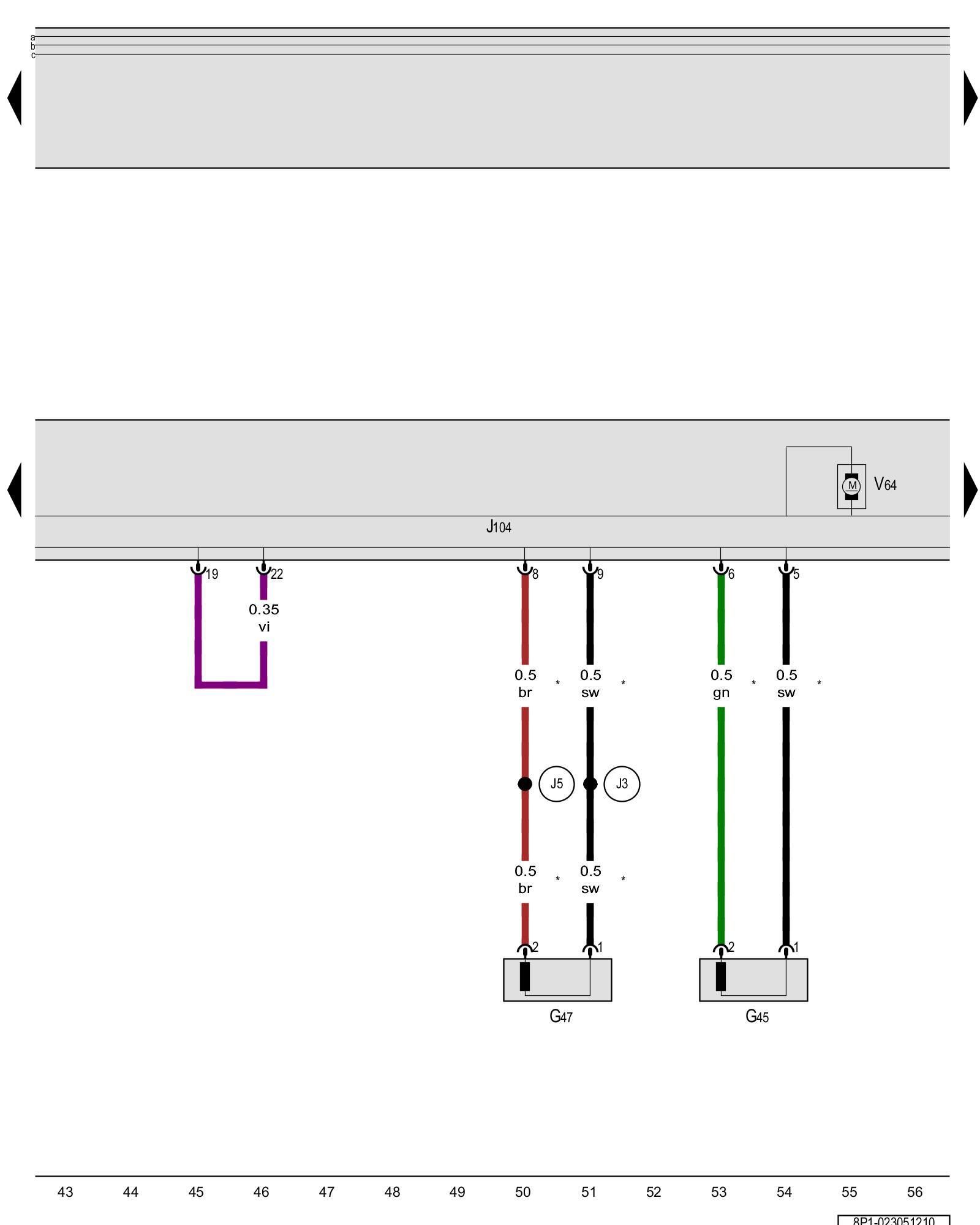

Right front ABS wheel speed sensor, Left front ABS wheel speed sensor, ABS control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G45 - Right front ABS wheel speed sensor Locations

G47 - Left front ABS wheel speed sensor Locations

J104 - ABS control module Control Modules in Front Part Of Vehicle

V64 - ABS hydraulic pump Locations

(J3) - Connection 1 (in ABS wiring harness)

(J5) - Connection 2 (in ABS wiring harness)

* - Only for left-hand drive vehicles

Previous Diagram 23/4 (Tracks 29-42)

Next Diagram 23/6 (Tracks 57-70)
