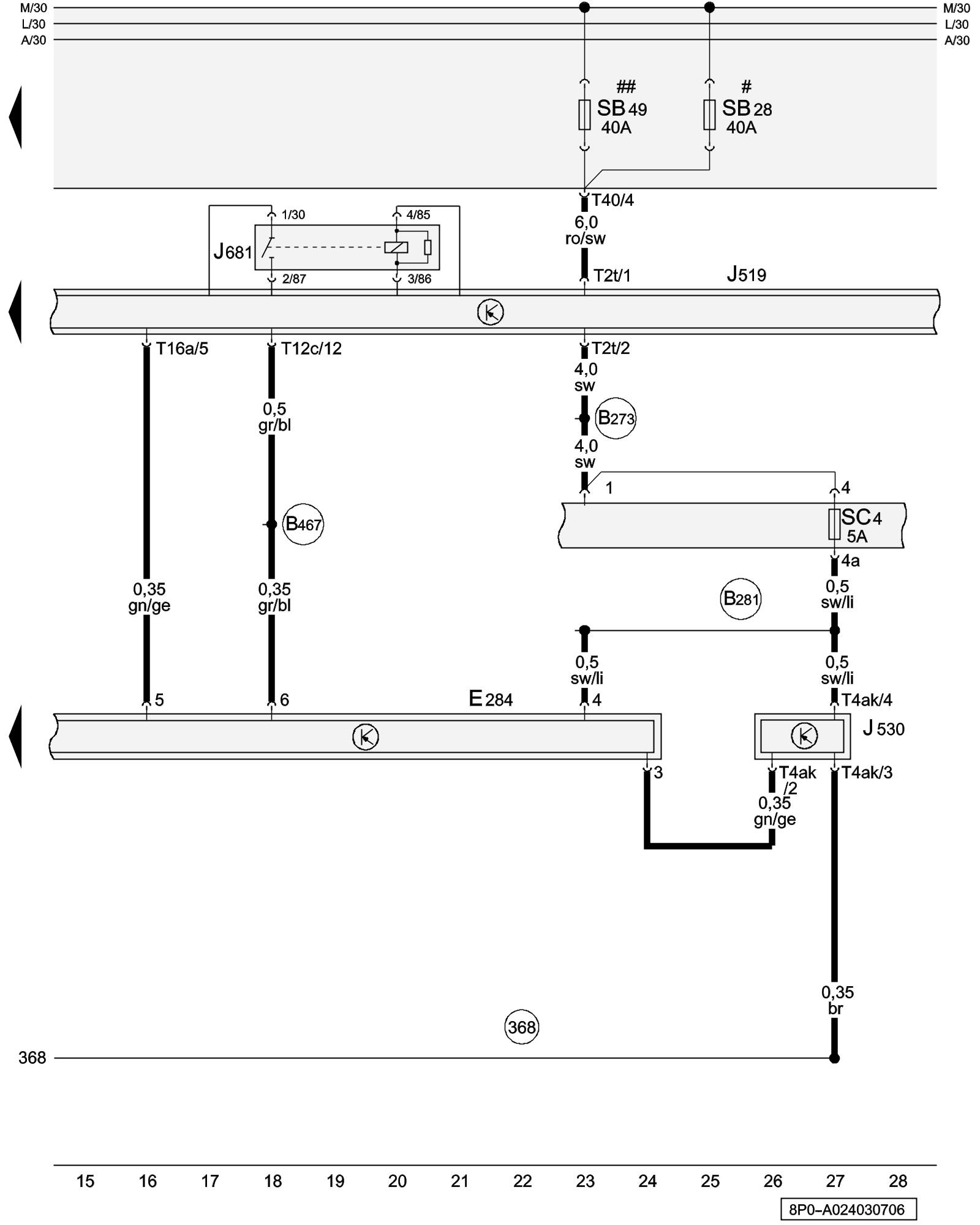

Diagram 24/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Garage Door Opener Control Head, Garage Door Opener Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E284 - Garage Door Opener Control Head

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J530 - Garage Door Opener Control Module Control Modules in Front Part Of Vehicle

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview Of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

T2t - Double Connector, black (Connector L)

T4ak - 4-Pin Connector, black (Connector A)

T12c - 12-Pin Connector, black (Connector B)

T16a - 16-Pin Connector, black (Connector E)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(368) - Ground Connection 3 (in main wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B281) - Plus Connection 5 (15a) (in main wiring harness)

(B467) - Connection 3 (in main wiring harness)

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
