A3 (8PA) L4-2.0L Turbo (CCTA)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Control Modules
>>
Control Modules Overview
Control Modules Overview

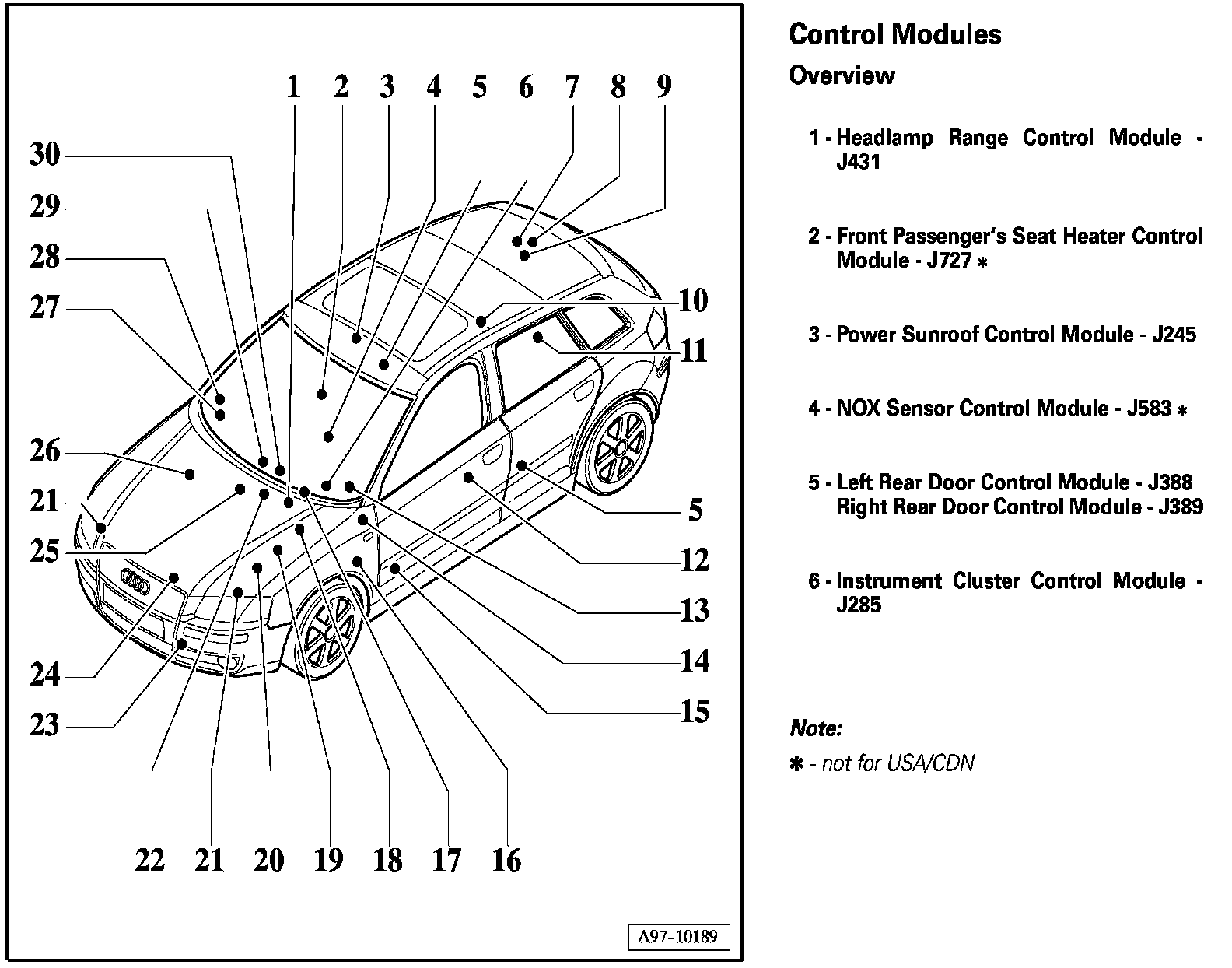

Control Modules Overview Part 1:
Control Modules Overview Part 2:

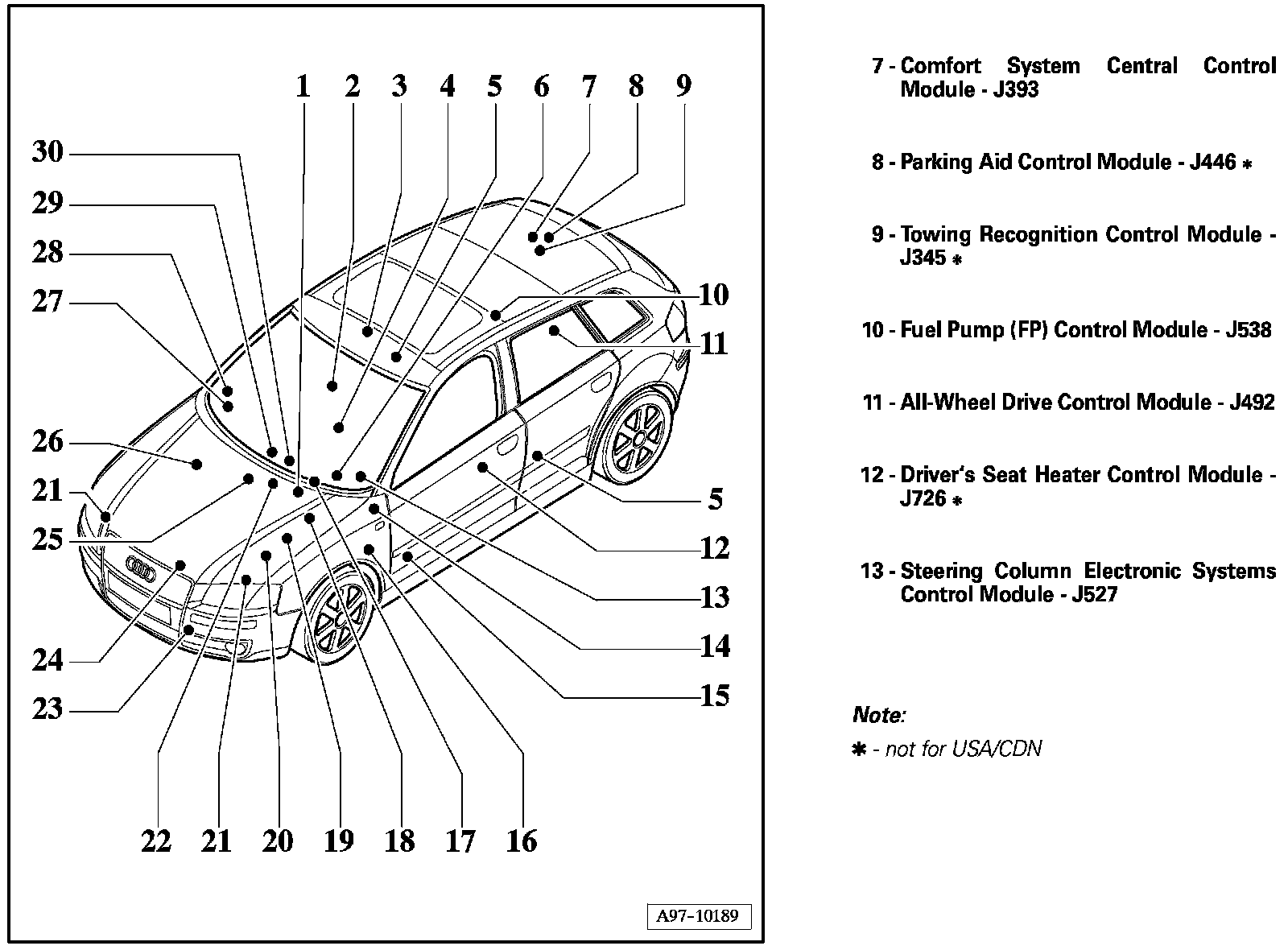

Control Modules Overview Part 3:

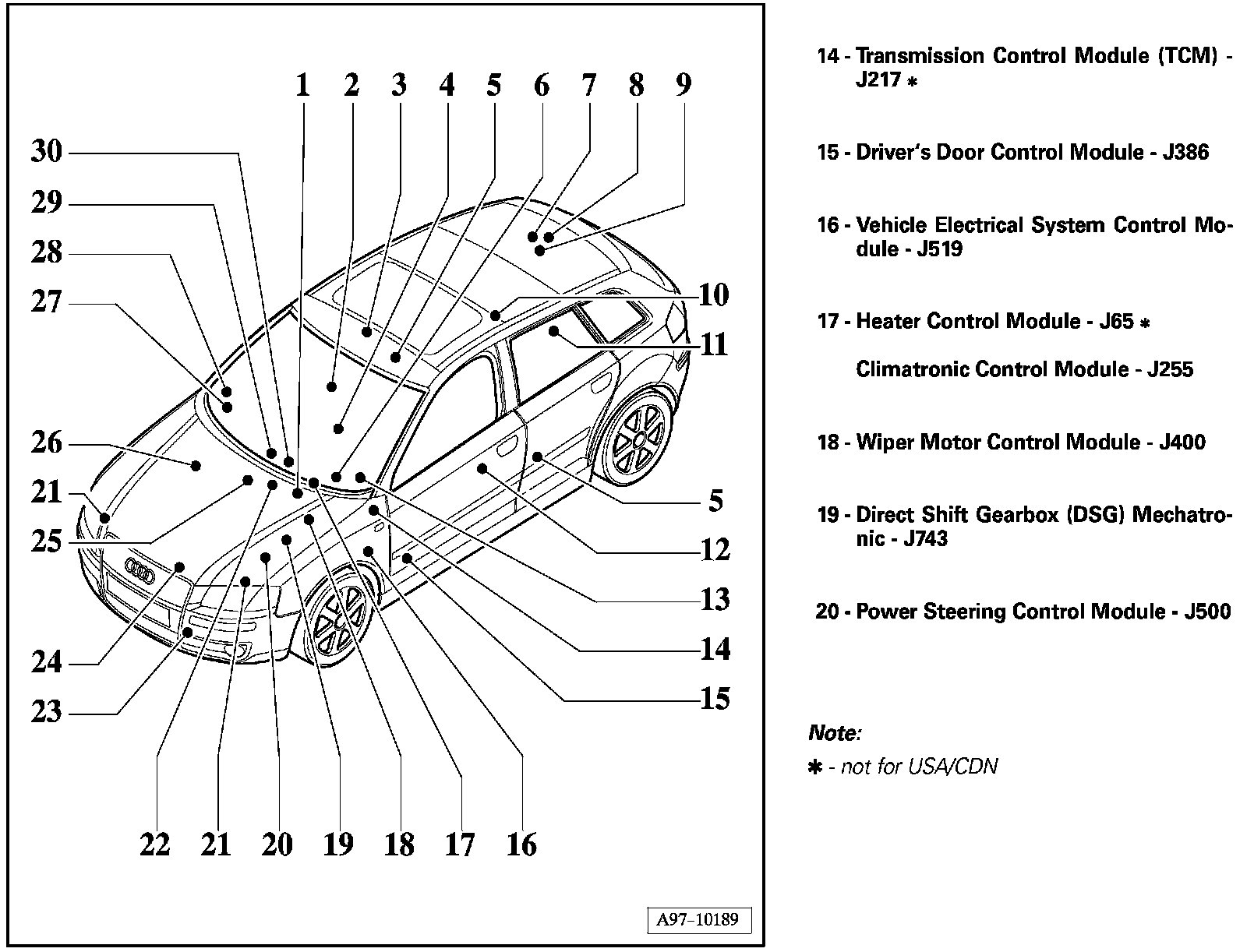

Control Modules Overview Part 4:

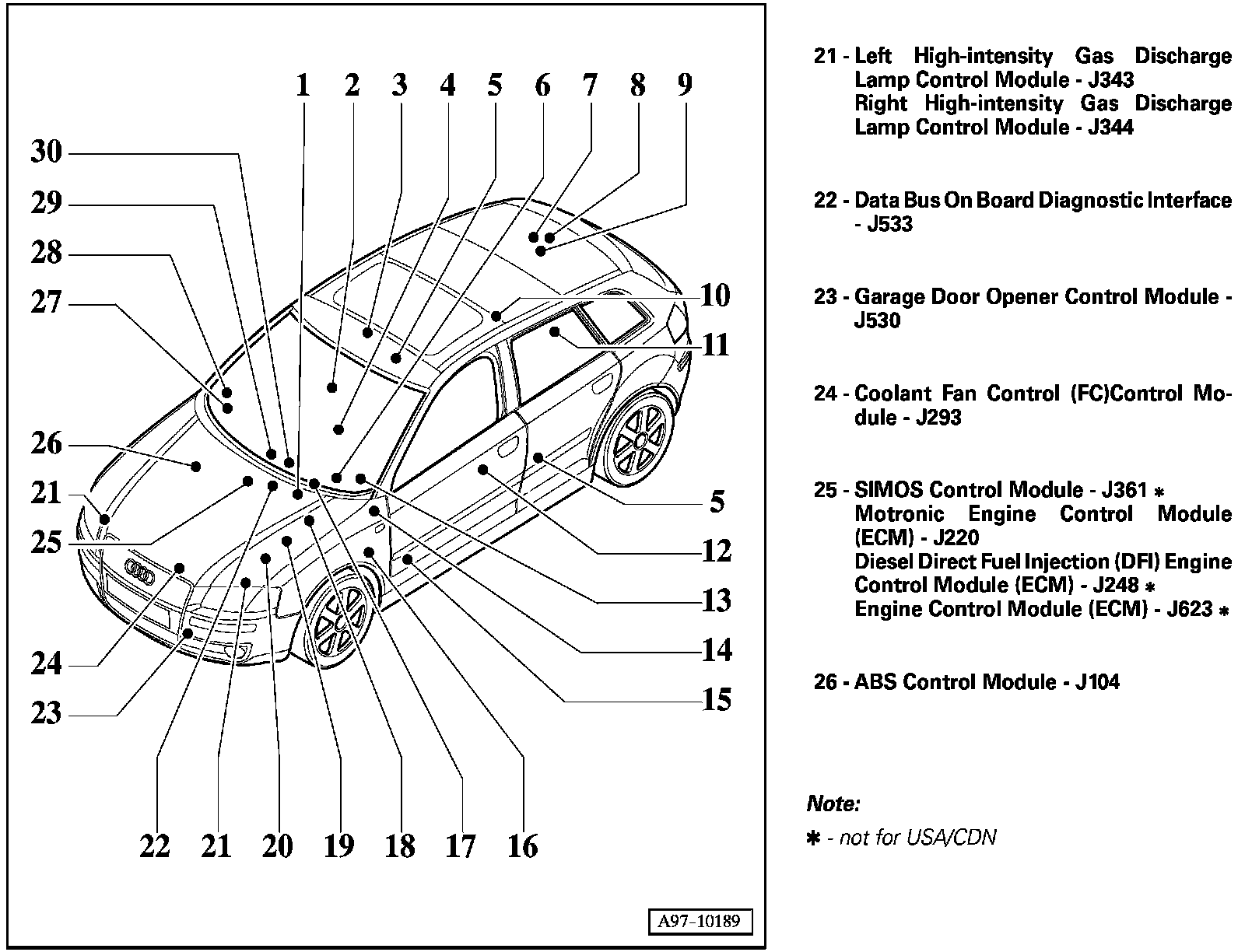

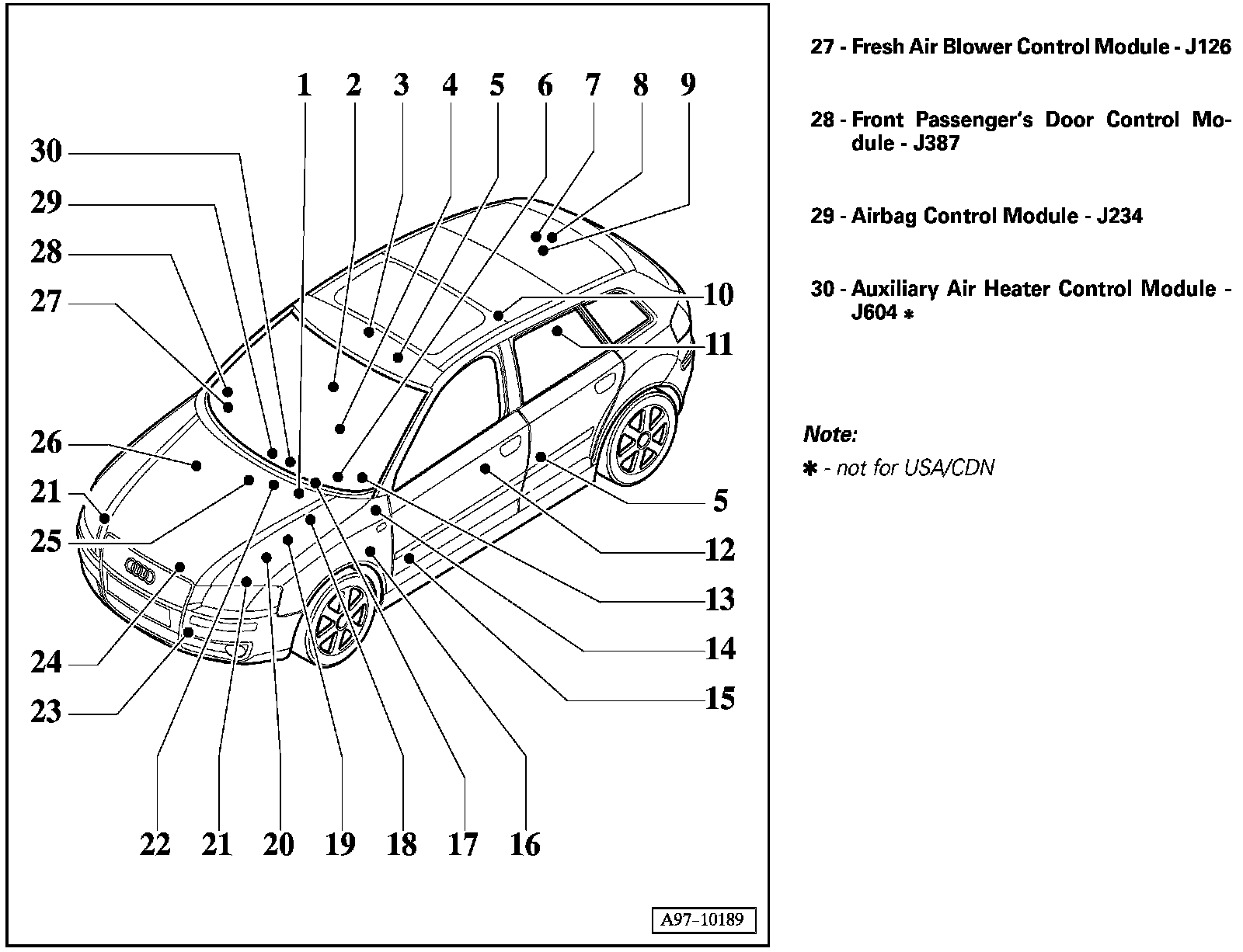

Control Modules Overview Part 5:
