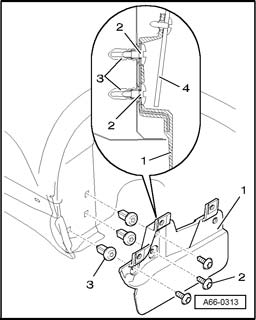

Rear Wheel Spoiler



Rear Wheel Spoiler







- Remove mounting bolts for wheel housing liner - 4 - in area of wheel spoiler - 1 -.
- Push wheel housing liner to the side far enough until Torx(TM) bolts - 2 - can be removed.
- Expanding clips - 3 - pressed into body.
