Front Wheel Spoiler

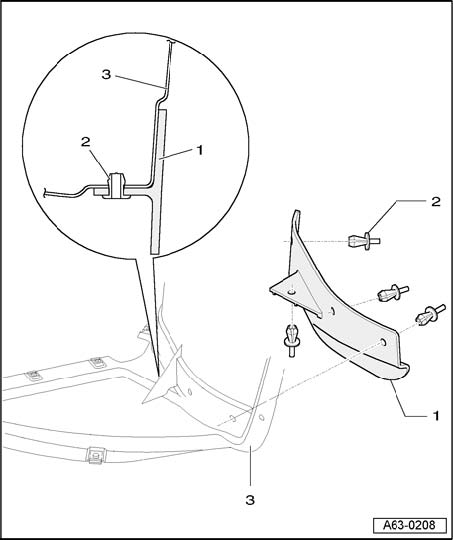

Front Wheel Spoiler
Front Wheel
Spoiler
1
-
Front wheel
spoiler
-
To remove, push out clamping pins of expanding clips - 2 -.
-
Pull out expanding clips and remove wheel
spoiler
.
2
-
Expanding clip
-
Qty. 4 pieces per side
3
-
Wheelhousing liner
