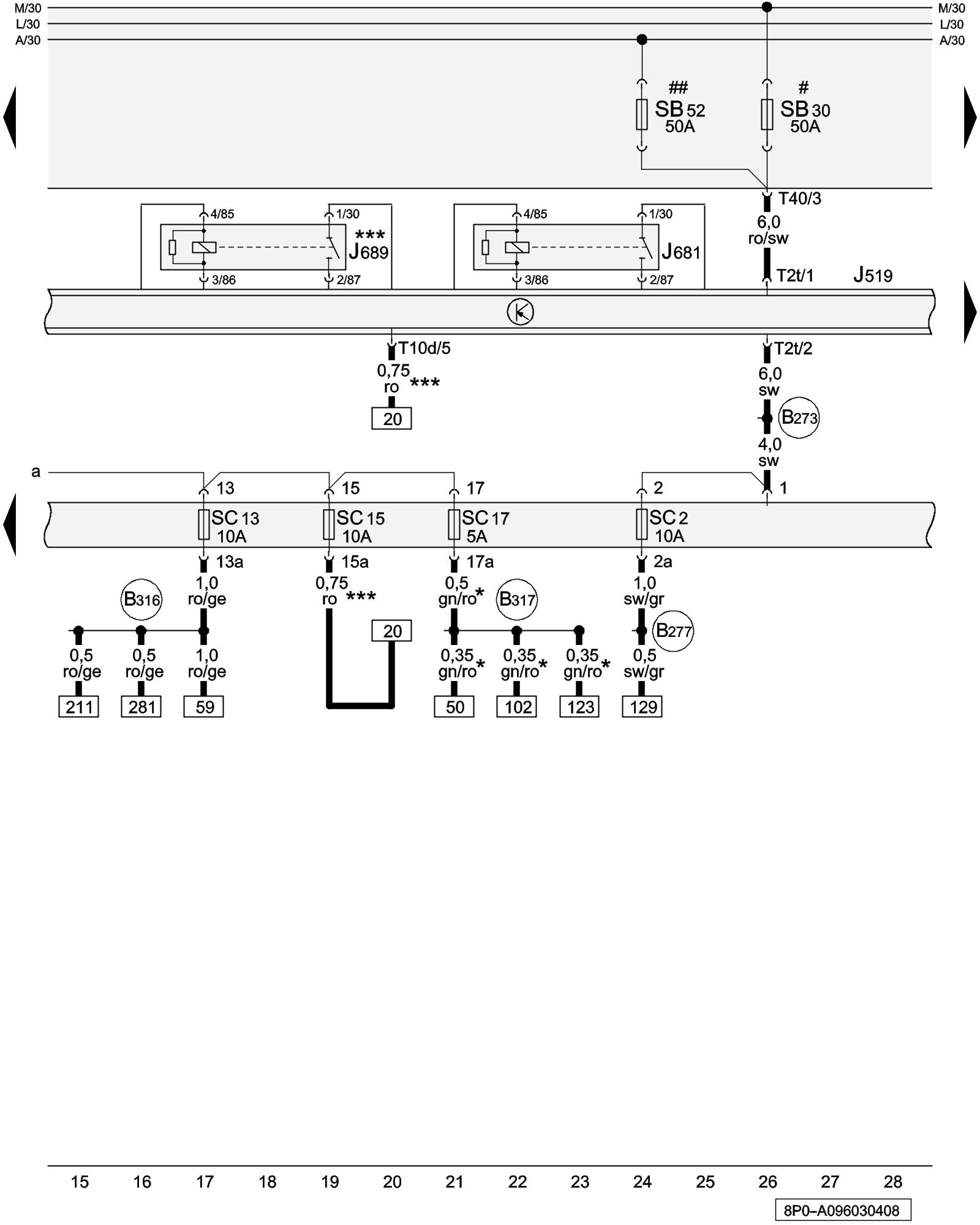

Diagram 96/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Fuses (on fuse panel), Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay

J689 - Power Supply Relay 2 (terminal 30) Overview Of Relay

SB30 - Fuse 30 (on fuse panel B) Overview Of Fuses

SB52 - Fuse 52 (on fuse panel B) Overview Of Fuses

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses

SC15 - Fuse 15 (on fuse panel C) Overview Of Fuses

SC17 - Fuse 17 (on fuse panel C) Overview Of Fuses

T2t - Double Connector, black (Connector L)

T10d - 10-Pin Connector, black (Connector K)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(B273) - Plus Connection (15) (in main wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

(B316) - Plus Connection 2 (30a) (in main wiring harness)

(B317) - Plus Connection 3 (30a) (in main wiring harness)

* - Only models with anti-theft alarm system

*** - Only models with interior illumination

# - Only models with electronics box Low

## - Only models with electronics box High
