Diagram 96/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

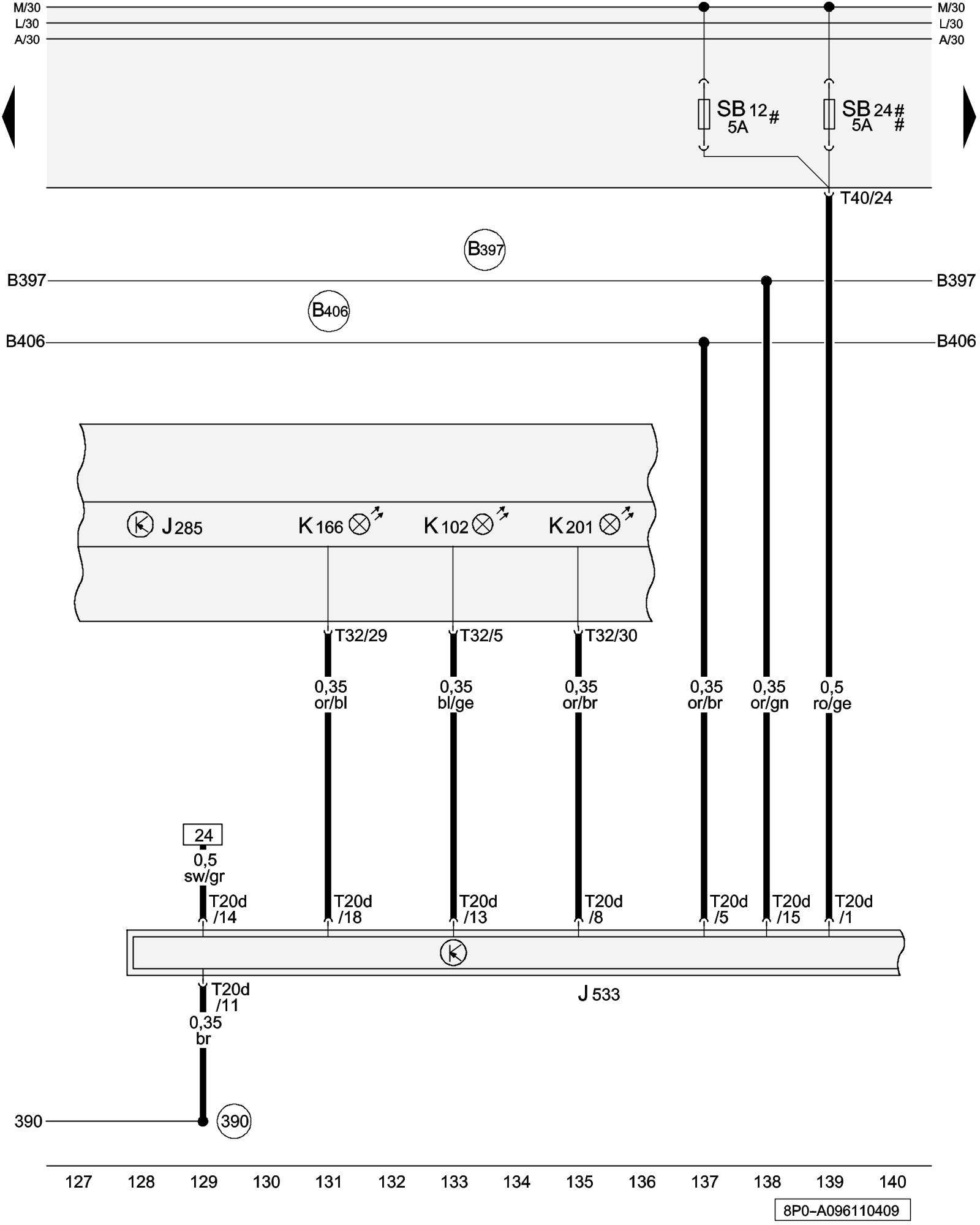

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior Of Vehicle

K102 - Rear Hatch/Trunk Lid Ajar Warning Lamp

K166 - Door Ajar Indicator Lamp

K201 - Fuel Filler Lid Lock Warning Lamp

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses

T20d - 20-Pin Connector, black (Connector A)

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(390) - Ground Connection 25 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

# - Only models with electronics box Low

## - Only models with electronics box High

Previous Diagram 96/10 (Tracks 113-126)

Next Diagram 96/12 (Tracks 141-154)
