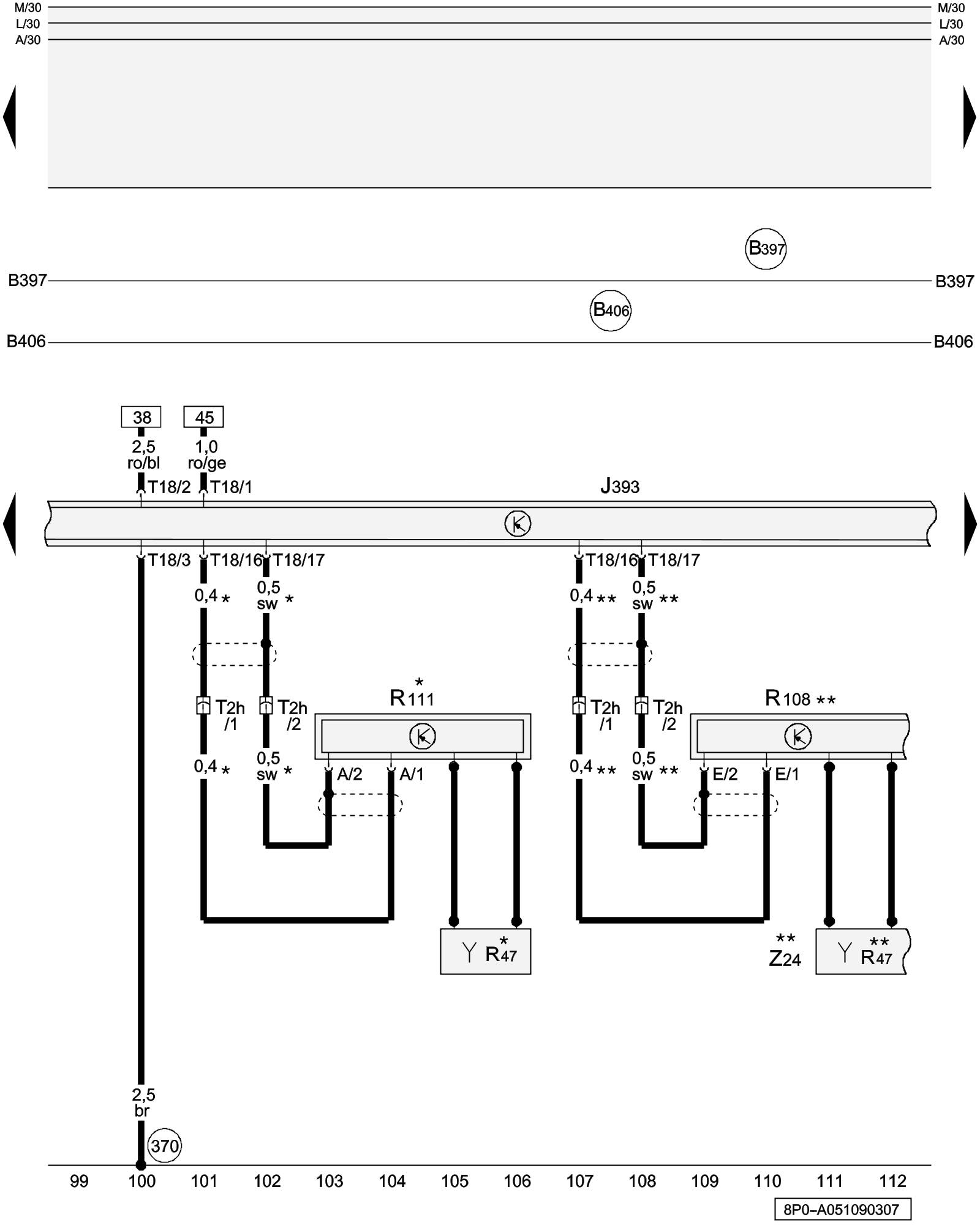

Diagram 51/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Central Locking and Anti-Theft Alarm System Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Overview Of Control Modules

R47 - Central Locking and Anti-Theft Alarm System Antenna Locations

R108 - Left Antenna Module Locations

R111 - Antenna Amplifier 2

T2h - Double Connector, on C-pillar, right

T18 - 18-Pin Connector, brown (Connector A)

Z24 - Rear Window Defogger with Window Antenna Locations

(370) - Ground Connection 5 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Not for models with radio or radio/navigation system

** - Only models with radio or radio/navigation system
