Diagram 51/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

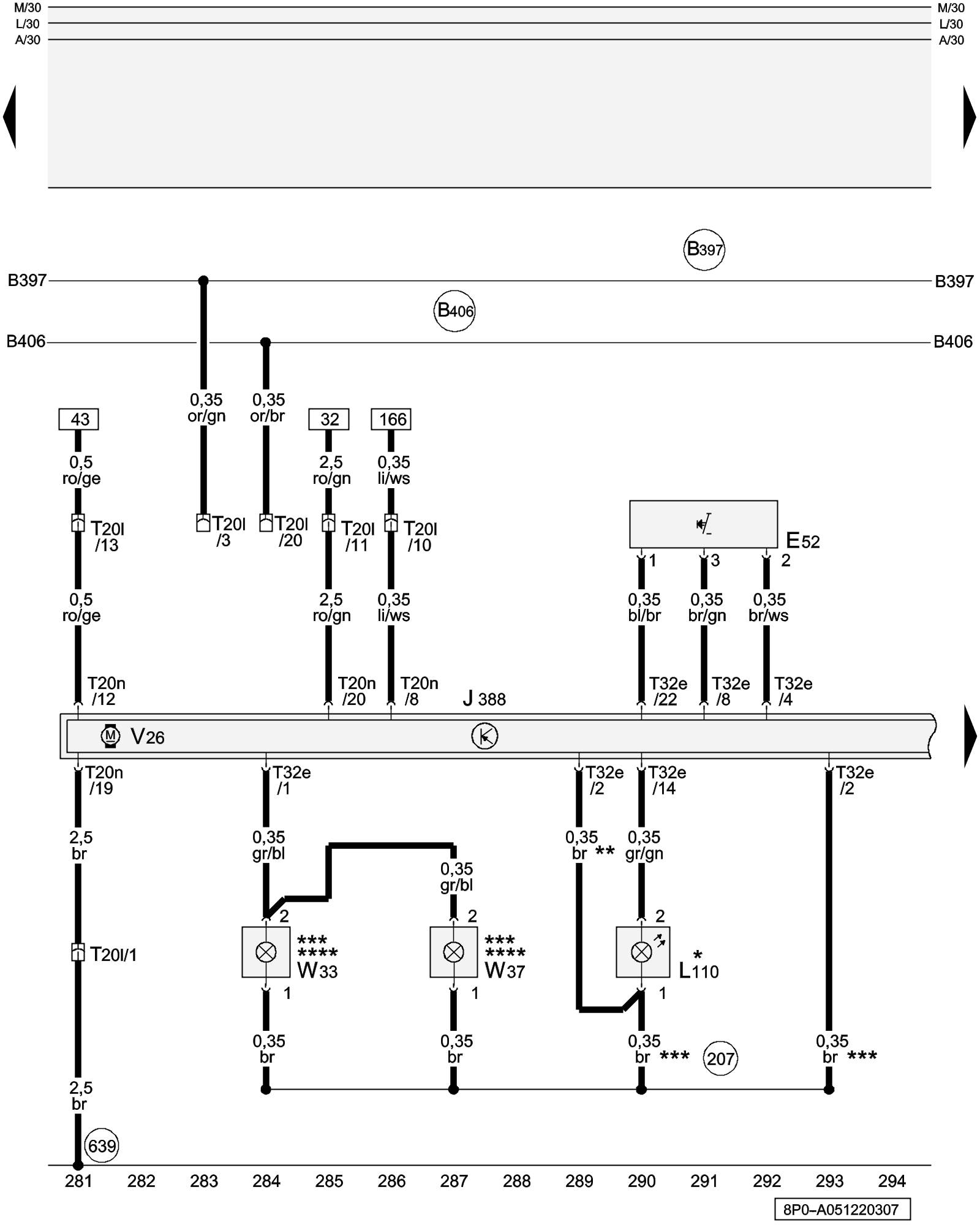

Left Rear Door Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E52 - Left Rear Window Switch in Left Rear Door

J388 - Left Rear Door Control Module Control Modules in Interior Of Vehicle

L110 - Left Rear Door Opener Illumination

T20l - 20-Pin Connector, black, door B-pillar, left

T20n - 20-Pin Connector, black (Connector A)

T32e - 32-Pin Connector, grey (Connector C)

V26 - Left Rear Window Regulator Motor Locations

W33 - Left Rear Entry Light

W37 - Left Rear Door Warning Light

(207) - Ground Connection (in left rear door wiring harness)

(639) - Ground Connection (on left A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with left rear door opener illumination

** - Only models without left rear door warning light and left rear entry light

*** - Only models with left rear door warning light and left rear entry light

**** - Not for models with US equipment

Previous Diagram 51/21 (Tracks 267-280)

Next Diagram 51/23 (Tracks 295-308)
