Diagram 51/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

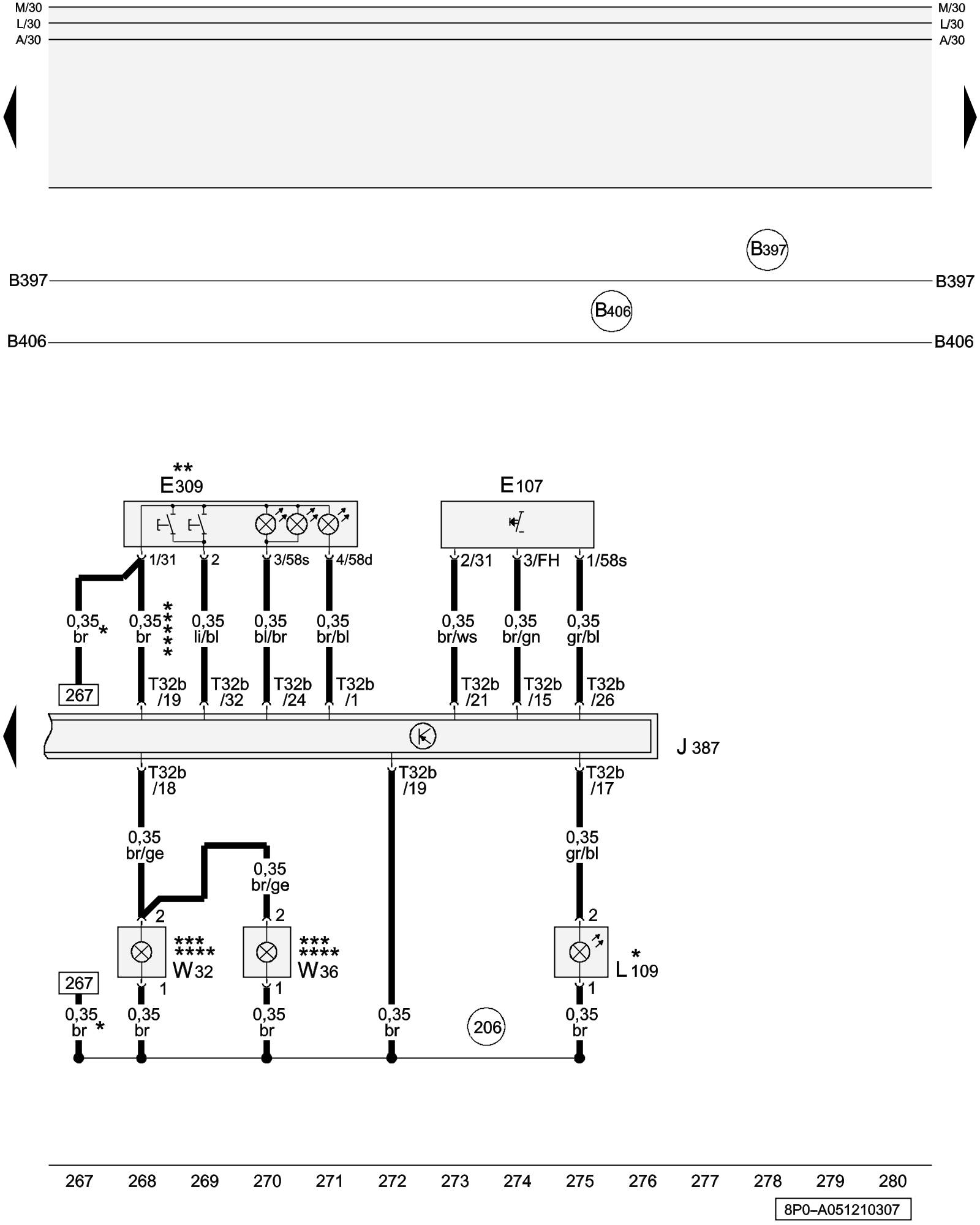

Right Front Entry Light, Front Passenger's Door Warning Light, Front Passenger's Door Window Regulator Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Window Regulator Switch (in RF door)

E309 - Front Passenger's Interior Locking Button

J387 - Front Passenger's Door Control Module Control Modules in Interior Of Vehicle

L109 - Front Passenger's Door Opener Illumination

T32b - 32-Pin Connector, grey (Connector C)

W32 - Right Front Entry Light

W36 - Front Passenger's Door Warning Light

(206) - Ground Connection (in front passenger's door wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with front passenger's door opener illumination

** - Only models with US equipment

*** - Only models with front passenger's door warning light and right front entry light

**** - Not for models with US equipment

***** - Not for models with front passenger's door opener illumination

Previous Diagram 51/20 (Tracks 253-266)

Next Diagram 51/22 (Tracks 281-294)
