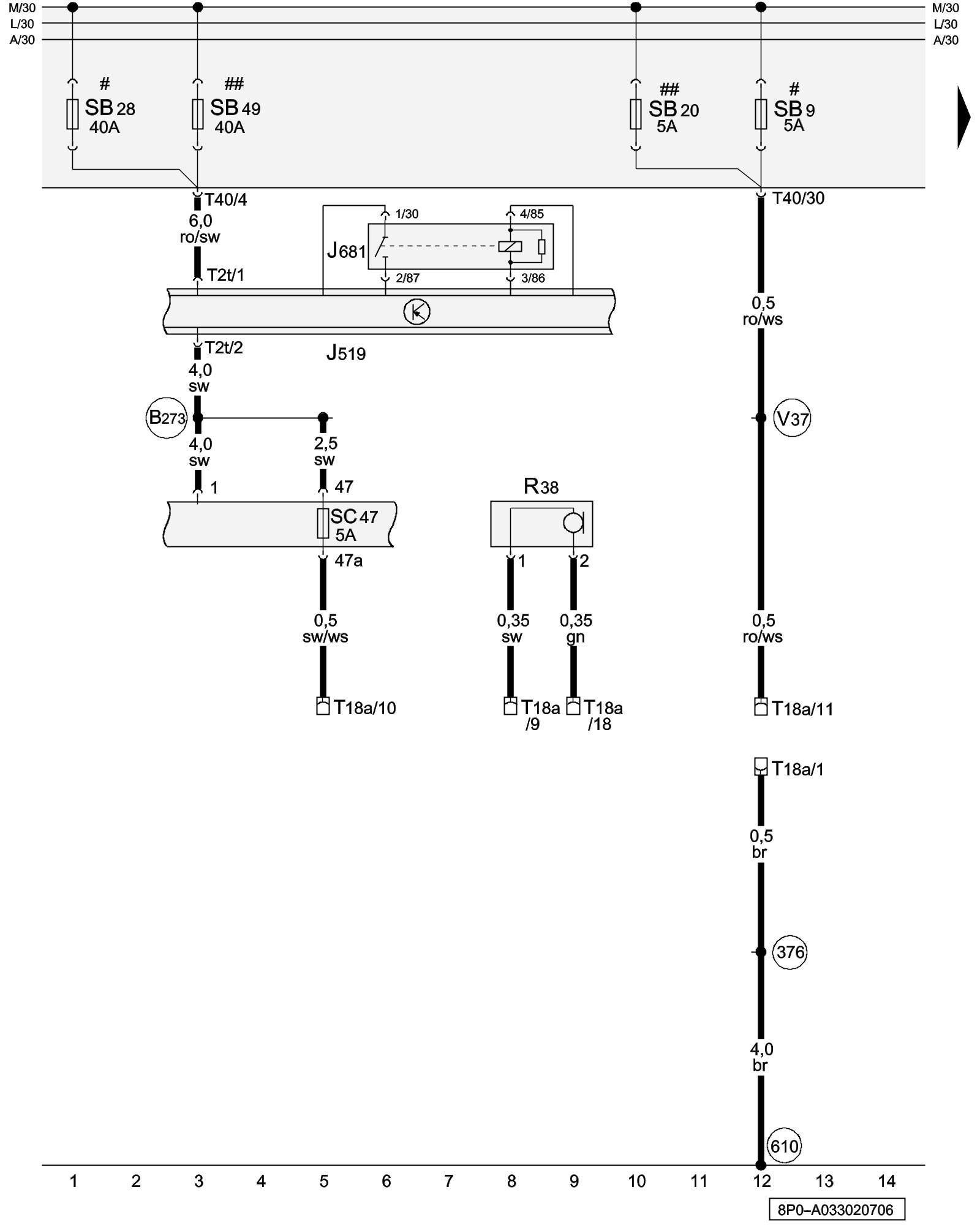

Diagram 33/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Telephone Microphone, Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay

R38 - Telephone Microphone Phone System Component Overview

SB9 - Fuse 9 (on fuse panel B) Overview Of Fuses

SB20 - Fuse 20 (on fuse panel B) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview Of Fuses

SC47 - Fuse 47 (on fuse panel C) Overview Of Fuses

T2t - Double Connector, black (Connector L)

T18a - 18-Pin Connector, near glove compartment (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(376) - Ground Connection 11 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview Of Ground Connections in Interior Of Vehicle

(B273) - Plus Connection (15) (in main wiring harness)

(V37) - Plus Connection (30) (in communications wiring harness)

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations

Next Diagram 33/3 (Tracks 15-28)
