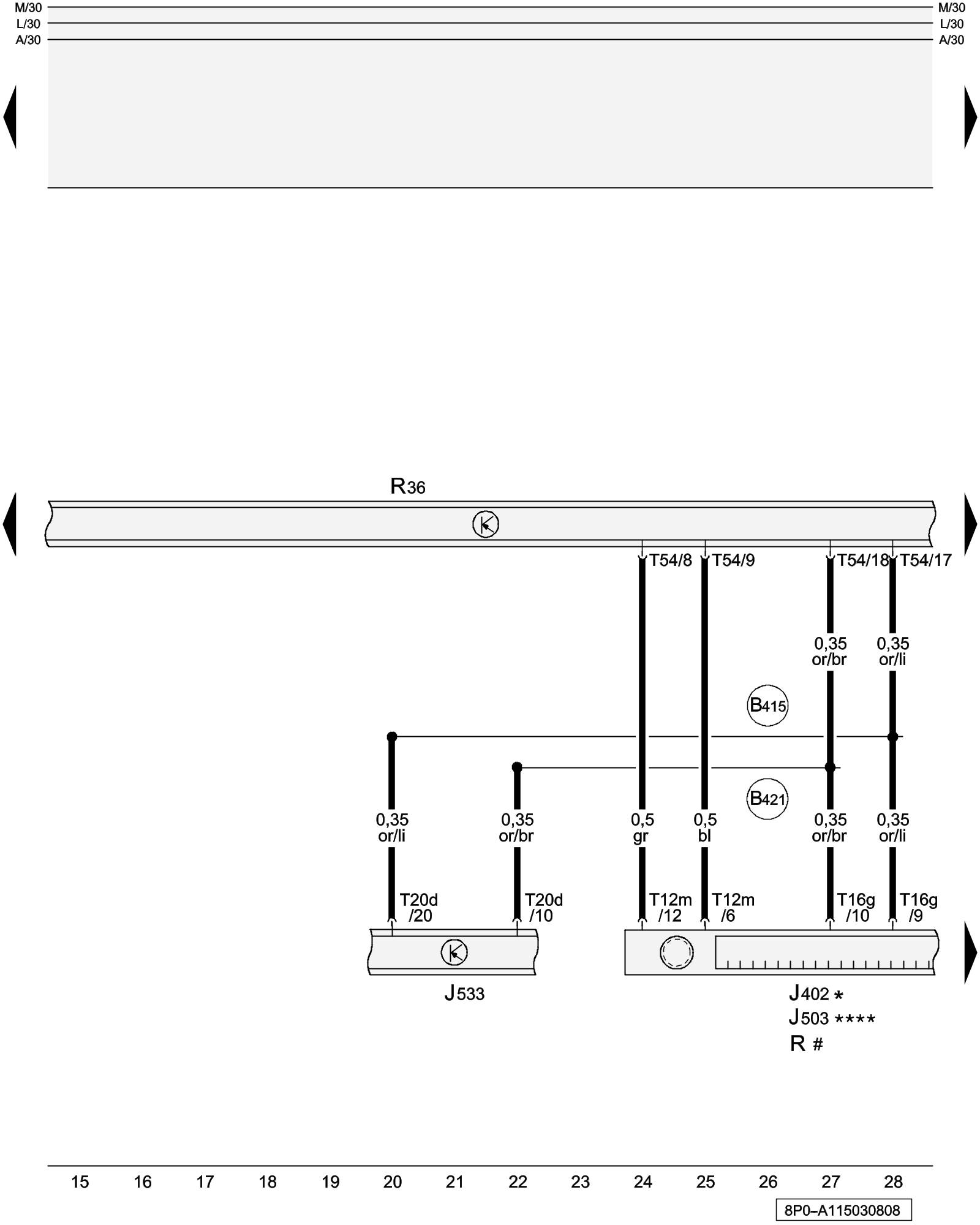

Diagram 115/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Mute, Infotainment CAN-Bus





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Navigation System Operating Electronics Control Module Control Modules in Interior Of Vehicle

J503 - Radio/Navigation Display Control Module Control Modules in Interior Of Vehicle

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior Of Vehicle

R - Radio Control Modules in Interior Of Vehicle

R36 - Telephone Transceiver Phone System Component Overview

T12m - 12-Pin Connector, black (Connector C) (connector locking green)

T16g - 16-Pin Connector, black (Connector D)

T20d - 20-Pin Connector, black (Connector A)

T54 - 54-Pin Connector, black (Connector A)

(B415) - Infotainment CAN-Bus High Connection 1 (in main wiring harness)

(B421) - Infotainment CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with radio/navigation system (RNS-E)

**** - Only models with radio/navigation system (RNS-Low)

# - Only models with radio generation II plus
