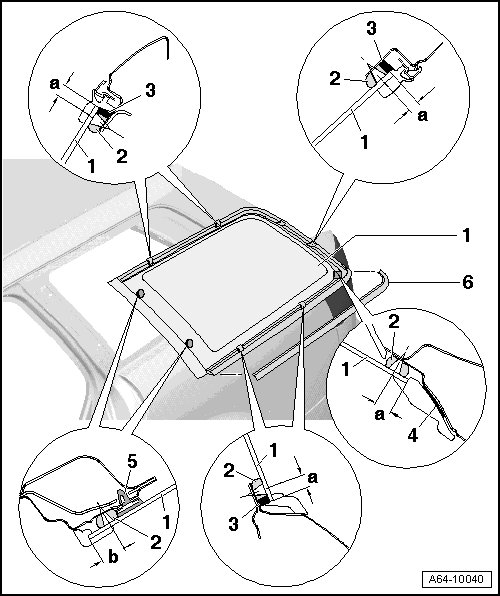

Side Window Assembly Overview, Avant

Side Window Assembly Overview, Avant





1 Side window

2 Adhesive bead

• Note varying spacing dimensions to window edge.

• Dimension - a - = 8 mm behind window molding

• Dimension - b - = 25 mm

• Bead cross section

• Bead width = 8 mm ± 2 mm

• Bead height = 13.5 ± 1.5 mm

3 Spacers

• Height 8 mm

4 Double sided adhesive

• D 004 400

5 Securing pin

• 2x

6 Trim for side panel

• When installing, first insert into roof trim molding at bottom, then press at sides into retaining clips on side panel.
