Installation Position of Selector Mechanism

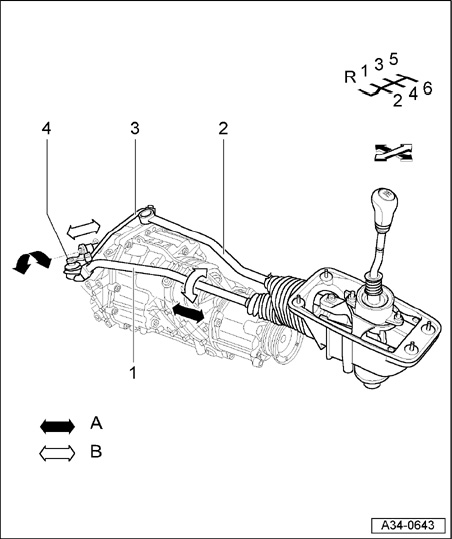

Installation position of selector mechanism, 02X, 6-Speed Four-Wheel Drive M/T
- Arrow A - gear selection movement
- Arrow B - gate selection movement





1 - Selector rod

2 - Push rod

3 - Connecting rod

4 - Transmission selector lever
