Gear Lever Knob With Boot, Removing and Installing

Gear lever knob with boot, removing and installing, 02X, 6-Speed Four-Wheel Drive M/T

Special tools, testers and auxiliary items required





^ Hose clip pliers VAG 1275

Removing

Note:
^ The gear lever knob is removed together with the gear lever boot and the cover for the center console.

- Open ashtray.





- Unclip cover for center console and lift it off - arrows -.





Gear lever knob with clip:
- Pull boot up and over gear lever knob.
- Open clip - arrow - and pull off gear lever knob together with boot.





Gear lever knob with locking mechanism:

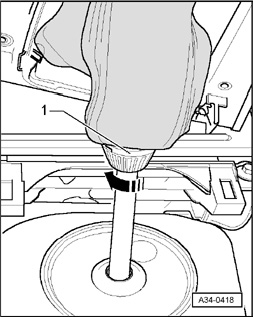

- Release connecting element - 1 - in direction of - arrow - and pull gear lever knob off upward together with gear lever boot.

Installing
Installation is in reverse order of removal.
