Table of Adjustments

Table of adjustments, 02X, 6-Speed Four-Wheel Drive M/T

Note:

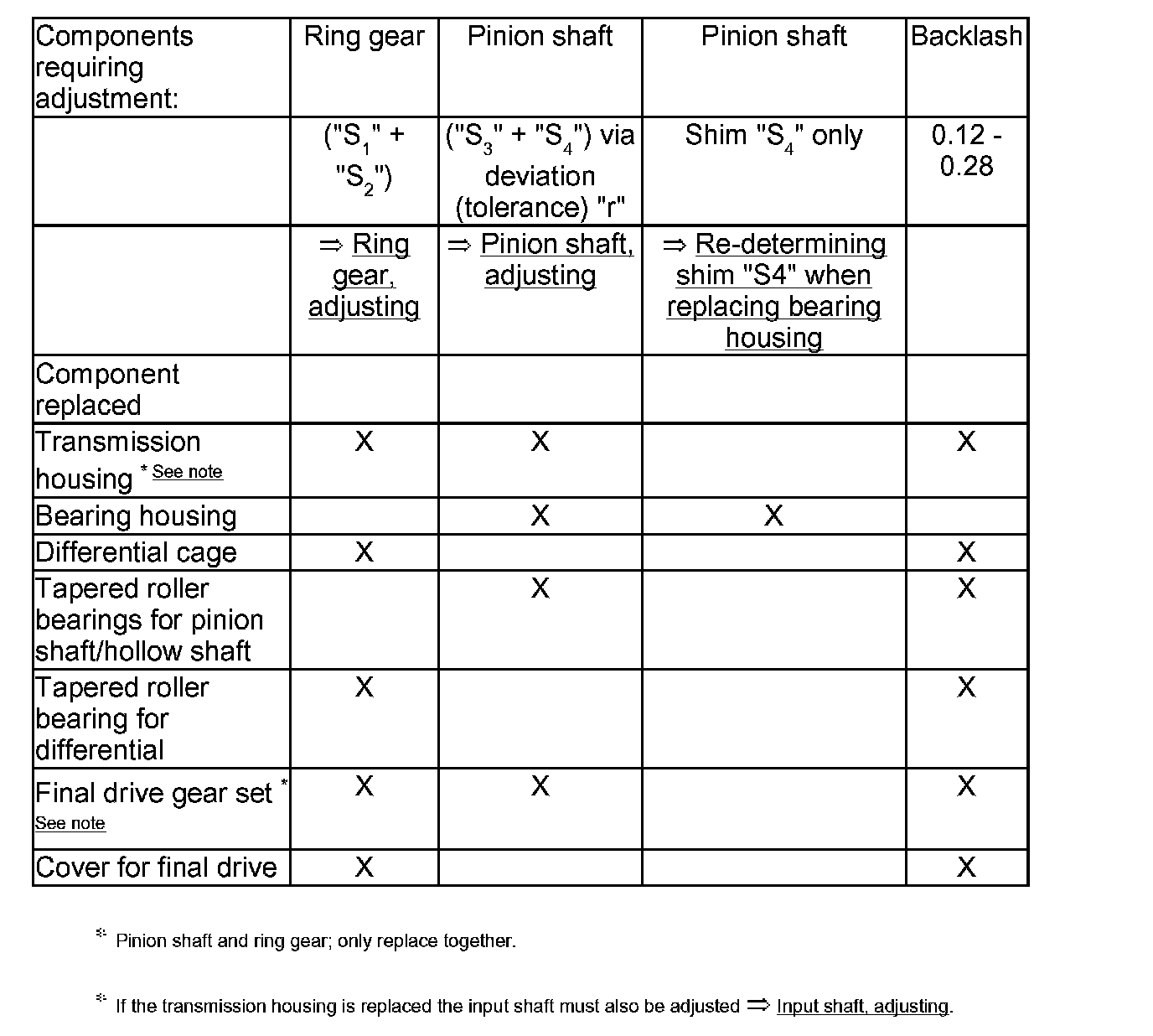

^ If repairs have been performed to the transmission, it is only necessary to adjust the pinion shaft, ring gear or final drive set if components have been replaced which have a direct effect on the adjustment of the final drive. Refer to the following table to avoid unnecessary adjustment work.
