Assembly Overview

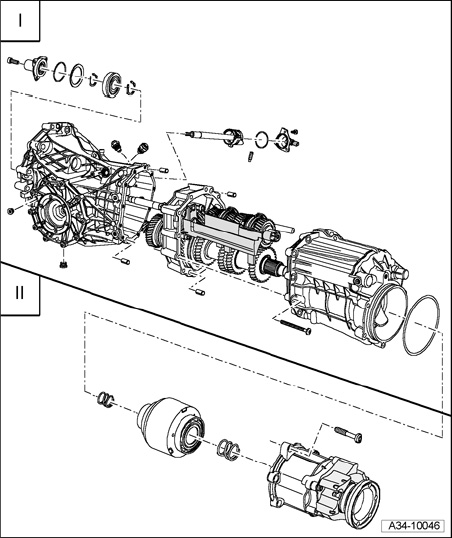

Assembly overview, 02X, 6-Speed Four-Wheel Drive M/T





I - Removing and installing ball bearing for input shaft, transmission cover, bearing housing and selector shaft

II - Removing and installing Torsen housing and Torsen differential with transmission removed
